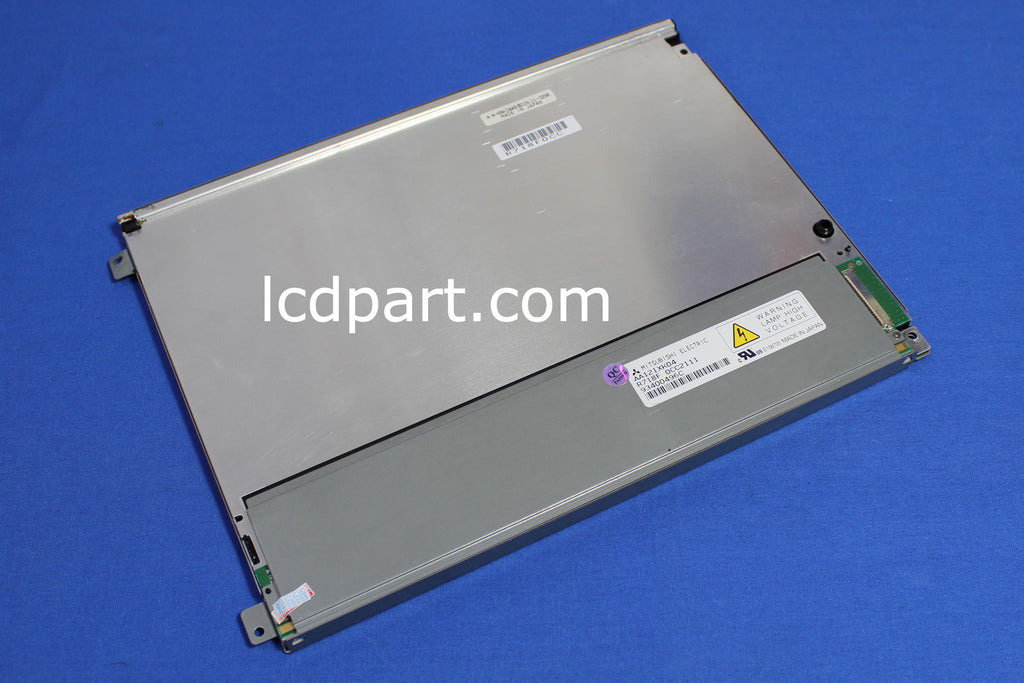

AA121XK04 12.1 inch Mitsubishi LCD screen



Refurbished Mitsubishi AA121XK04. 90 days warranty.
Mitsubishi AA121XK04, one of the most popular LCD screens in control industrial and medical applications. This 12.1 inch Mitsubishi AA121XK04 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 420 nits (based on its datasheet). By upgrading to our SB44255X11R7 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Mitsubishi AA121XK04 is Listed below
General Specifications:
Item Unit Specifications (C8)
Screen Size [inch] 12.1
Native Resolution 1024 X 768
Active Area [mm] 245.76(H) X 184.32(V)
Outline dimension [mm] 280.0(W) X 210.0(H) X 12.0(D)
Bolt Hole Dimension [mm] 181.3 X 181.3
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit/8-bit)
White Luminance [cd/m2] 420
Contrast Ratio 550:1
BackLight Connector SHLP-06V-S-B, 1.0mm 6 pin
Backlight Inverter 24V/150ma/2 strings
Response time, Rising msec 6
Response time, Falling msec 19
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 60
LCD controller kit DF14-20P-1LVDS_1024X768-6B
LED Backlight kit SB44255X11R7
