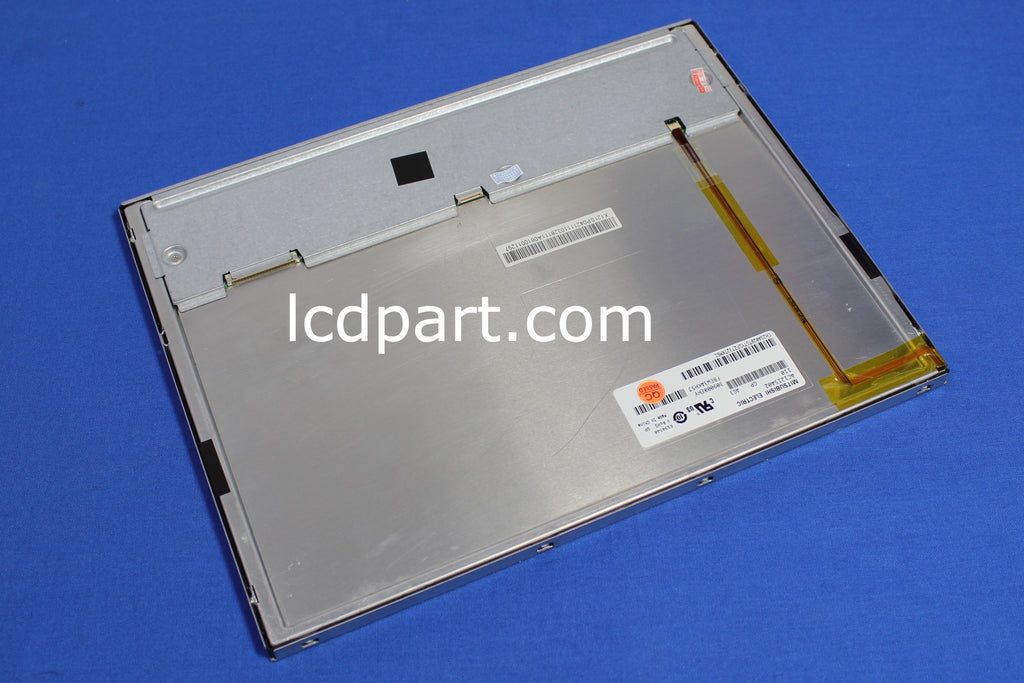

AC121SA02 12.1 inch Mitsubishi LCD screen



Refurbished (Like new condition)  Mitsubishi AC121SA02. 90 days warranty.
Mitsubishi AC121SA02, one of the most popular LCD screens in control industrial and medical applications. This 12.1 inch Mitsubishi AC121SA02 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44255X11R7 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Mitsubishi AC121SA02 is Listed below
General Specifications:
Item Unit Specifications (C7)
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 260.5(W) X 203.0(H) X 9.5(D)
Bolt Hole Dimension [mm] 161.0 X 164.2
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit), P19: 6 Bit=O/NC, 8 Bit=H(3.3V)
White Luminance [cd/m2] 450
Contrast Ratio 800:1
BackLight Connector FI-S6S, 1.25mm 6 pin(MS572EXT)
Backlight Inverter P1/P2=+12V, P3/P4=GND, P5=ENA, P6=PWM
Response time, Rising msec 4
Response time, Falling msec 12
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_800x600-6Bit
LED Backlight kit SB44255X11R7
