Description

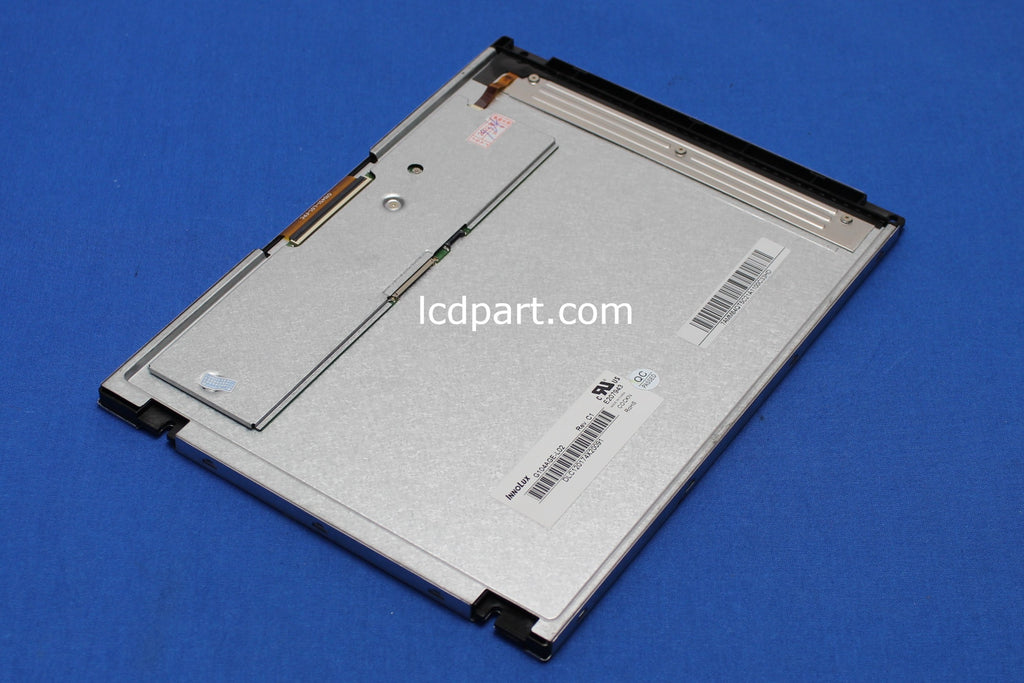

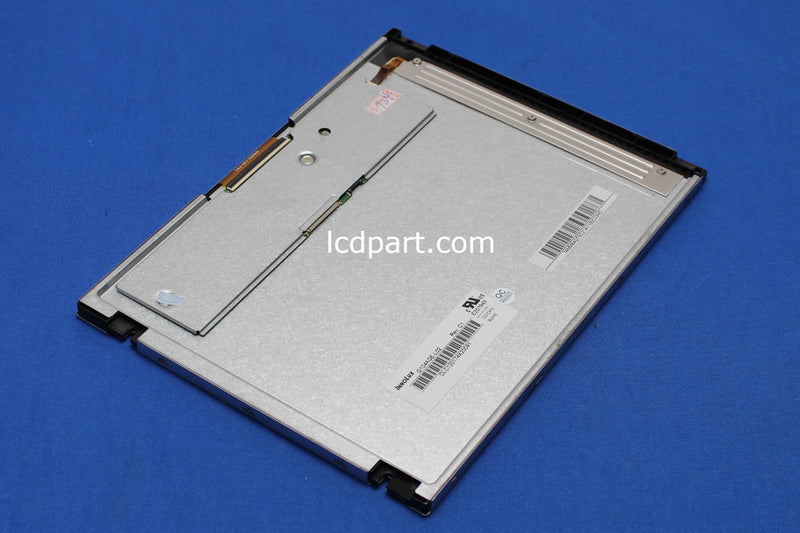

Refurbished (like new condition) G104AGE-L02 LCD Screen. 90 days warranty.
G104AGE-L02, one of the most popular LCD screens in control industrial and medical applications. This 10.4 inch G104AGE-L02 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 400 nits (based on its datasheet).
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 211.2(H) X 158.4 (V) |
Outline dimension | [mm] | 243.0(W) X 184.0(H) X 8.0(D) |
Bolt Hole Dimension | [mm] | 132.6 X 166.6 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF19-20P-1LVDS- 121W | |
Electrical Interface | LVDS (6-bit), P20: 6 Bit=O/NC, 8 Bit=H(3.3V) | |
White Luminance | [cd/m2] | 400 |
Contrast Ratio | 700 | |
BackLight Connector | H208K-P05N-02B, 1.25mm 5P(MS542EXT) | |
Backlight Inverter | P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C | |
Response time, Rising | msec | 5 |
Response time, Falling | msec | 11 |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 70 |
LCD controller kit | DF19-20P-1LVDS-121W_800X600-6Bit | |
LED Backlight kit | SB44220LED21652R+MS640EXT | |
Direct Replacement LCD | MS104RD3 |
