This refurbished ALPS LFUBL6381C has been replaced with our new CCFL back light lamp, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new condition ! 90 days warranty.

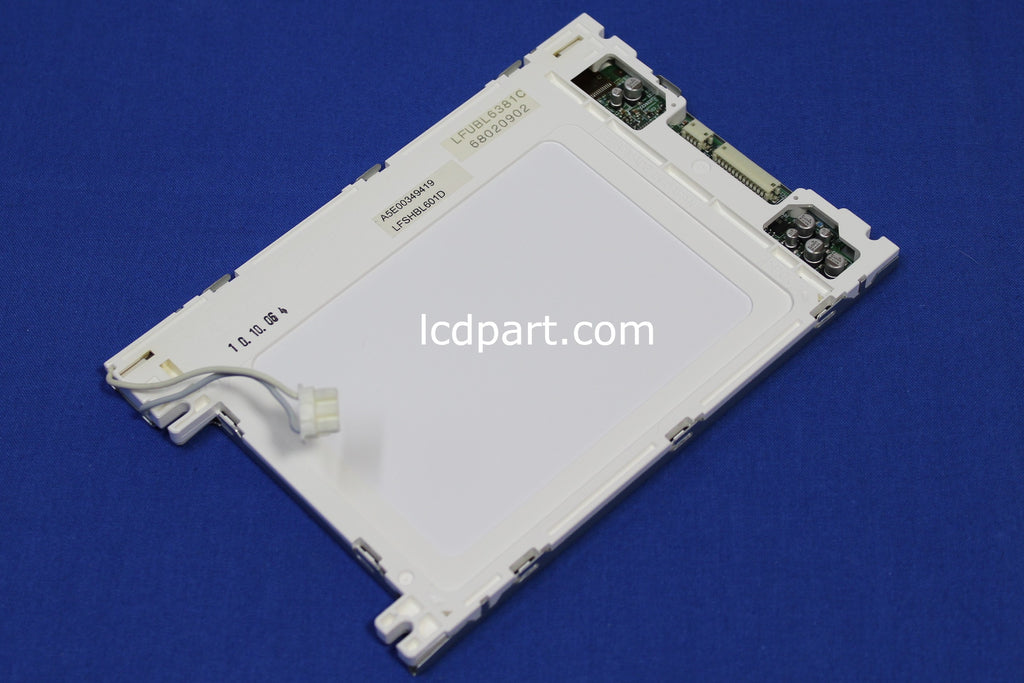

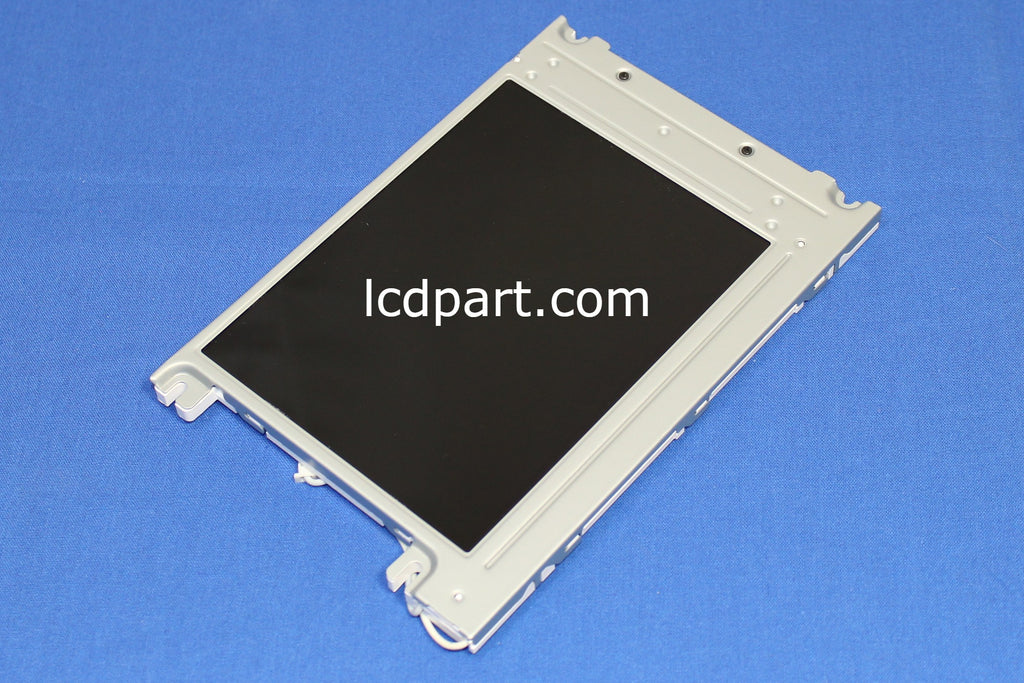

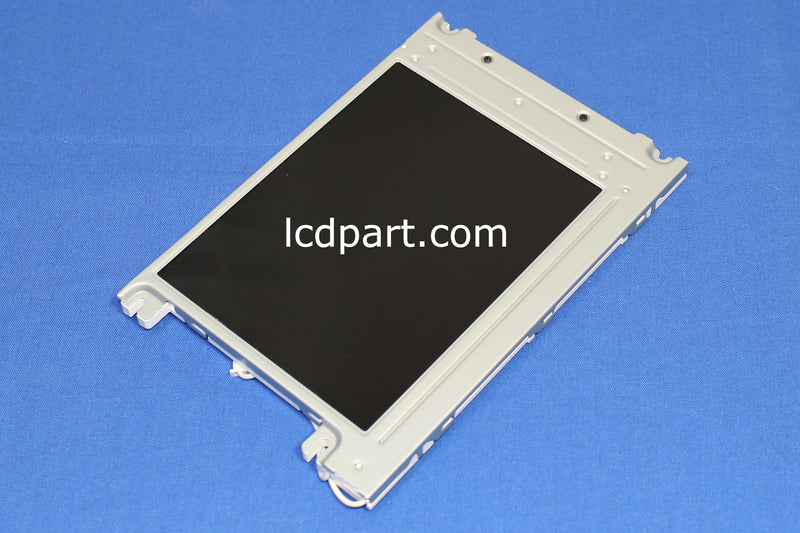

ALPS LFUBL6381C, one of the most popular LCD panels in an industrial application. This 5.7 inch ALPS LFUBL6381C is originally equipped with single CCFL back light lamps. To extend its life and improve its performance, upgrading it to our LFUBL6381C-LEDKIT is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 5.7
Native Resolution 320 X 240
Active Area [mm] 120(H) X 91.0(V)
Outline dimension [mm] 164.0(W) X 112.0(H) x 10.0(D)
Bolt Hole Dimension [mm] 81 X 95
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness TTL
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] N/A
Contrast Ratio N/A
BackLight Connector BHR-03VS-1X1,
Backlight Inverter Substitute MS397DI
Response time, Rising msec N/A
Response time, Falling msec N/A
Viewing Angle - Horizontal degree N/A
Viewing Angle - Vertical degree N/A
LED Backlight kit LFUBL6381C-LEDKIT
Direct Replacement LCD LFUBL6381C-LCD
