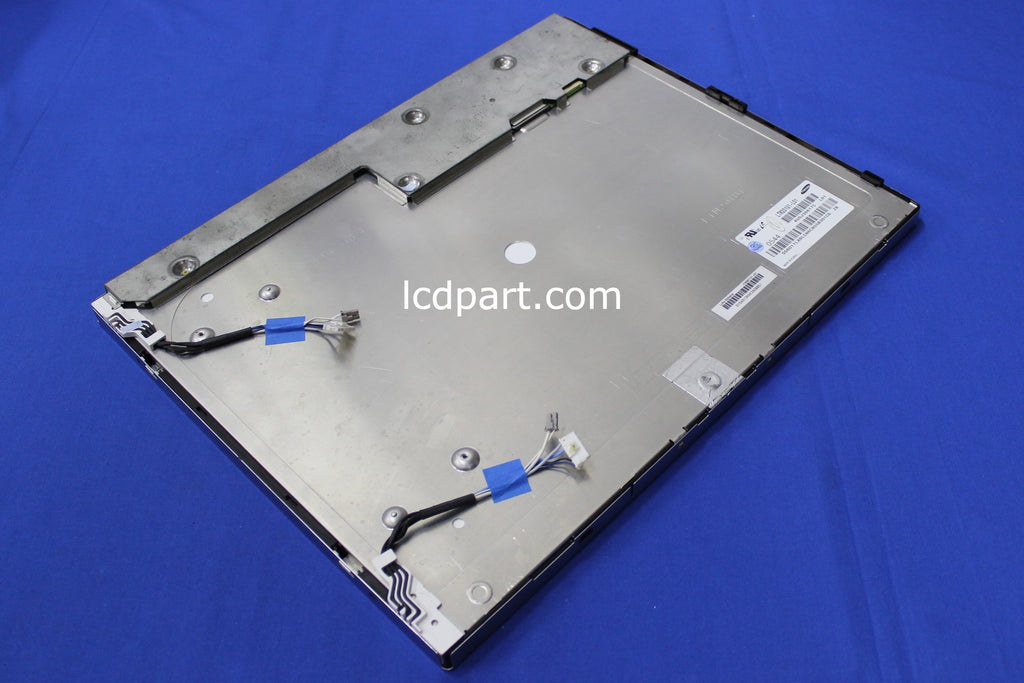

This refurbished Samsung LTM201U1-L01 LCD screen has been replaced with our new CCFL back light lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
Samsung LTM201U1-L01, one of the most popular LCD panels in an industrial application. This 20.1 inch Samsung LTM201U1-L01 is originally equipped with 6 CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB60420LED5620X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Samsung LTM201U1-L01 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 20.1
Native Resolution 1600 X 1200
Active Area [mm] 408.0(H) X 306.0(V)
Outline dimension [mm] 432(W) X 331.5(H) X 25(D)
Bolt Hole Dimension [mm] 274 X 220
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS-R
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 300
Contrast Ratio 700:1
BackLight Connector BHR-05VS-1X2, BHSR-02VS-1X2
Backlight Inverter Substitute MS175DI
Response time, Rising msec Tr+Tf=16
Response time, Falling msec N/A
Viewing Angle - Horizontal degree 89
Viewing Angle - Vertical degree 89
LCD controller kit FIX-30S-2LVDS_1600X1200
LED Backlight kit UB60420LED5020X2
