Description

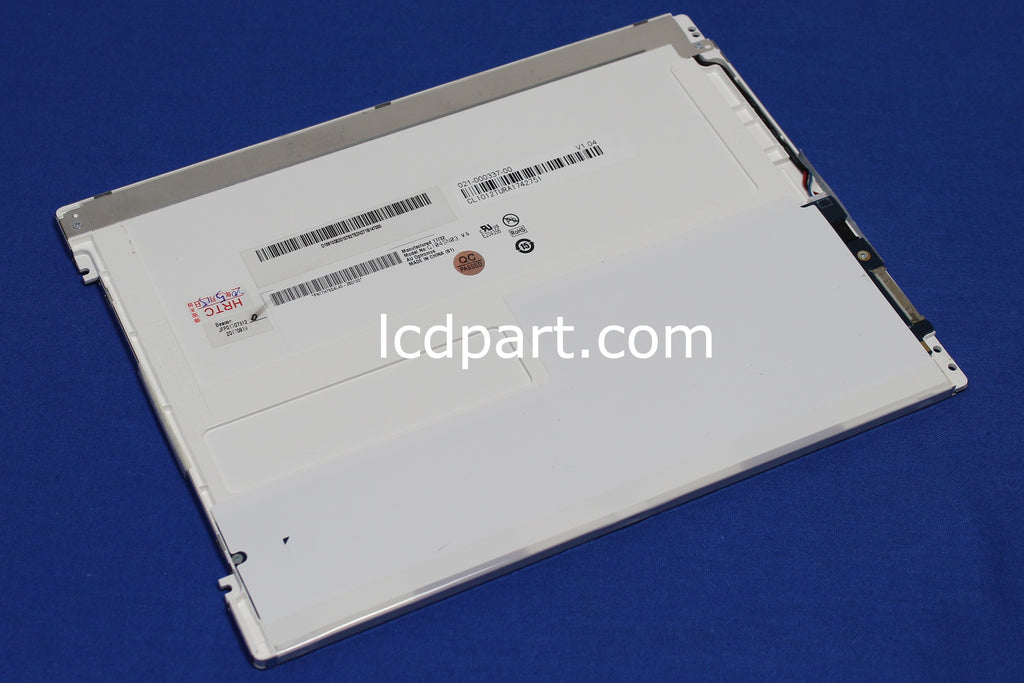

This refurbished AUO G104SN03-V5 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
AUO G104SN03-V5, one of the most popular LCD panel in an industrial control application. This 10.4 inch AUO G104SN03-V5 is originally equipped with LED backlight.
General Specifications:
| Item | Unit | Specifications |
| Screen Size | [inch] | 10.4 |
| Native Resolution | 800 X 600 | |
| Active Area | [mm] | 211.2(H) X 158.4 (V) |
| Outline dimension | [mm] | 236.0(W) X 176.9(H) X 5.7(D) |
| Bolt Hole Dimension | [mm] | 123.8 X 150 |
| Input Voltage VDD | [Volt] | 3.3V |
| Screen Wire Harness | DF19-20P-1LVDS- 121W | |
| Electrical Interface | LVDS (6-bit/8-bit) | |
| White Luminance | [cd/m2] | 230 |
| Contrast Ratio | 500 | |
| BackLight Connector | H208K-P05N-02B, 1.25MM 5P(MS542EXT) | |
| Backlight Inverter | P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C | |
| Response time, Rising | msec | 10 |
| Response time, Falling | msec | 20 |
| Viewing Angle - Horizontal | degree | 80 |
| Viewing Angle - Vertical | degree | 80 |
