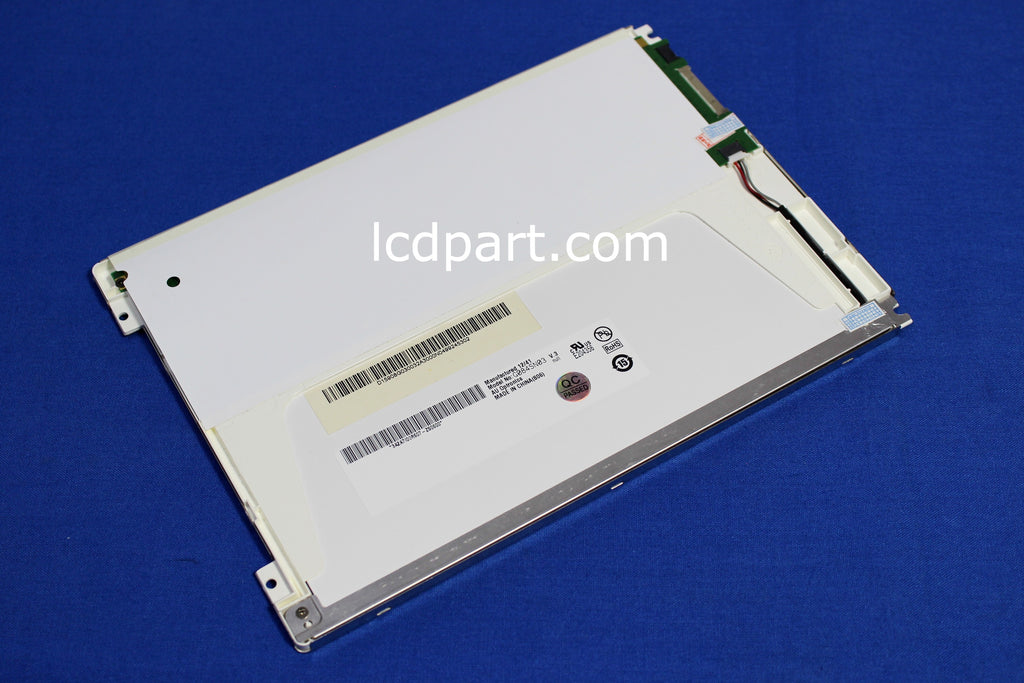

G084SN03-V3, 8.4 inch AUO LCD Screen


Price:
1.309,89 kr

Description

Refurbished (Like new condition) AUO G084SN03-V3 LCD Screen. 90 days warranty.
AUO G084SN03-V3, one of the most popular LCD screens in control industrial and medical applications. This 8.4 inch AUO G084SN03-V3 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 250 nits (based on its datasheet). By upgrading to our UB35185LED3515X1+MS610UB+MS640EXT+AF. It can reach 800 nits or higher.
General Specifications:
Item Unit Specifications
Screen Size [inch] 8.4
Native Resolution 800 X 600
Active Area [mm] 170.4(H) X 127.8 (V)
Outline dimension [mm] 203.0(W) X 142.5(H) X 5.7(D)
Bolt Hole Dimension [mm] 100 X 131.5
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF19-20P-1LVDS- 121W
Electrical Interface LVDS (6-bit/8-bit)P17
White Luminance [cd/m2] 250
Contrast Ratio 600
BackLight Connector H208K-P04N-02B, 1.25mm 4P(MS571EXT)
Backlight Inverter P1=+12V, P2=GND, P3=ENA, P4=PWM
Response time, Rising msec 20
Response time, Falling msec 10
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit  DF19-20P-1LVDS-121W_800X600-6Bit
LED Backlight kit UB35185LED3515X1+MS610UB+MS640EXT+AF
