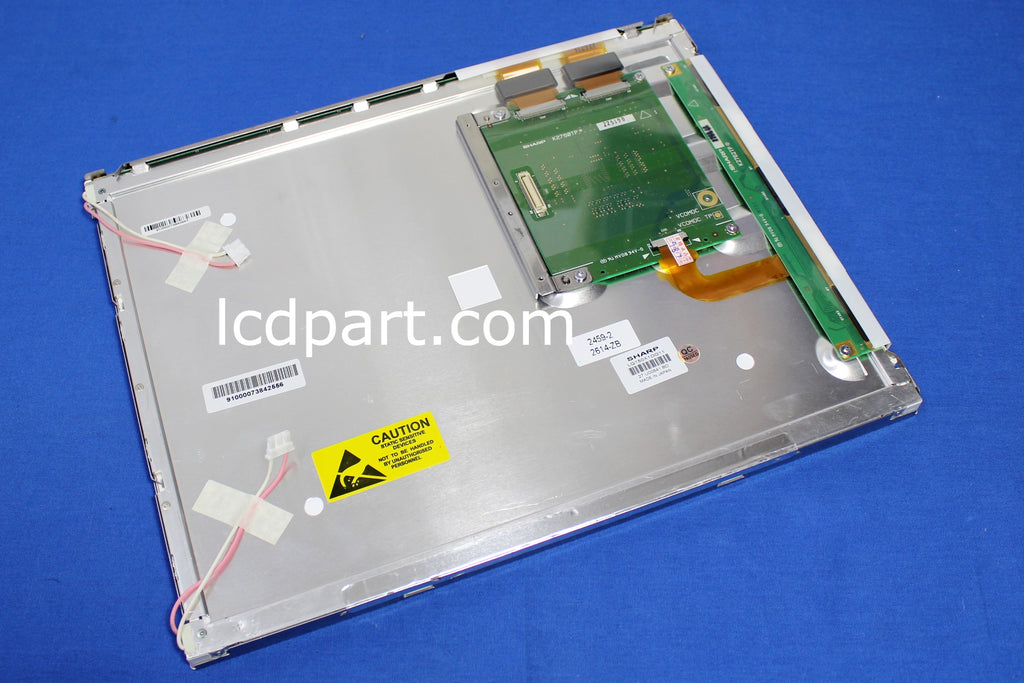

LQ150X1DG11, 15 inch Sharp LCD screen


Price:
2.149,52 kr

Description

This refurbished Sharp LQ150X1DG11 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

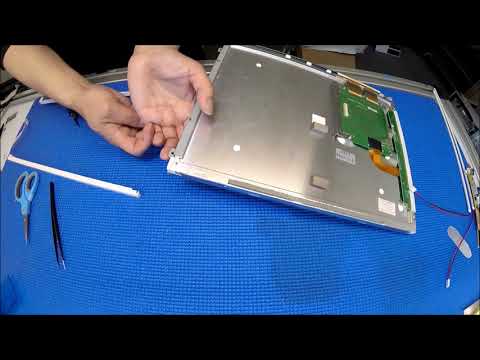

Sharp LQ150X1DG11, one of the most popular LCD panels in an industrial application. This 15 inch Sharp LQ150X1DG11 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54318LED8020X2 LED kit is the best option(LED Upgrade kit for sharp LQ150X1DG11 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.1(V)
Outline dimension [mm] 331.3(W) X 257.9(H) x 15.9(D)
Bolt Hole Dimension [mm] 176 (64) X 225(94)
Input Voltage VDD [Volt] 5V
Screen Wire Harness FX8-60S-SV
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 200
Contrast Ratio 300
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS179DI
Response time, Rising msec 10
Response time, Falling msec 35
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 60
LCD controller kit TTL-3045+MS557TTL_1024X768-6Bit
LED Backlight kit UB54318LED8020X2
