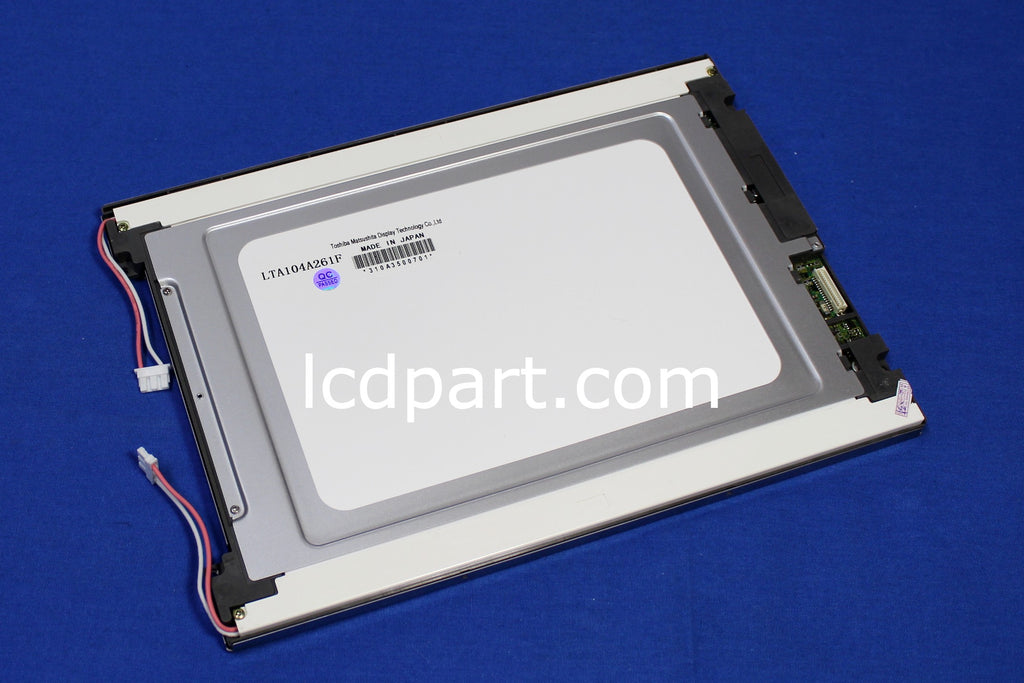

LTA104A261F 10.4 inch Toshiba LCD screen


Price:
1.633,71 kr

Description

This refurbished Toshiba LTA104A261F LCD screen has been replaced with our new CCFL back light lamps, new polarize film and there are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

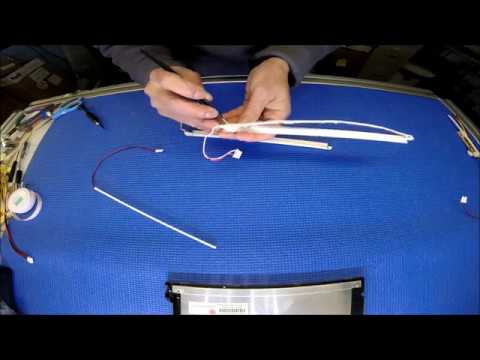

Toshiba LTA104A261F, one of the most popular LCD panels in an industrial application. This 10.4 inch Toshiba LTA104A261F is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB35220LED4215X2+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Toshiba LTA104A261F is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 221.2(H) X 158.4(V)
Outline dimension [mm] 265.0(W) X 188.8(H) X 11.4(D)
Bolt Hole Dimension [mm] 130 X 130
Input Voltage VDD [Volt] 5V
Screen Wire Harness TTL-DF9-31-3031
Electrical Interface TTL
White Luminance [cd/m2] 400
Contrast Ratio 250:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS179DI
Response time, Rising msec 15
Response time, Falling msec 25
Viewing Angle - Horizontal degree 100
Viewing Angle - Vertical degree 120
LCD controller kit TTL-DF9-31-3031_640X480
LED Backlight kit UB35220LED4215X2+MS610UB
