Description
This Refurbished NEC NL6448BC33-31 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new conditions! 90 days warranty.

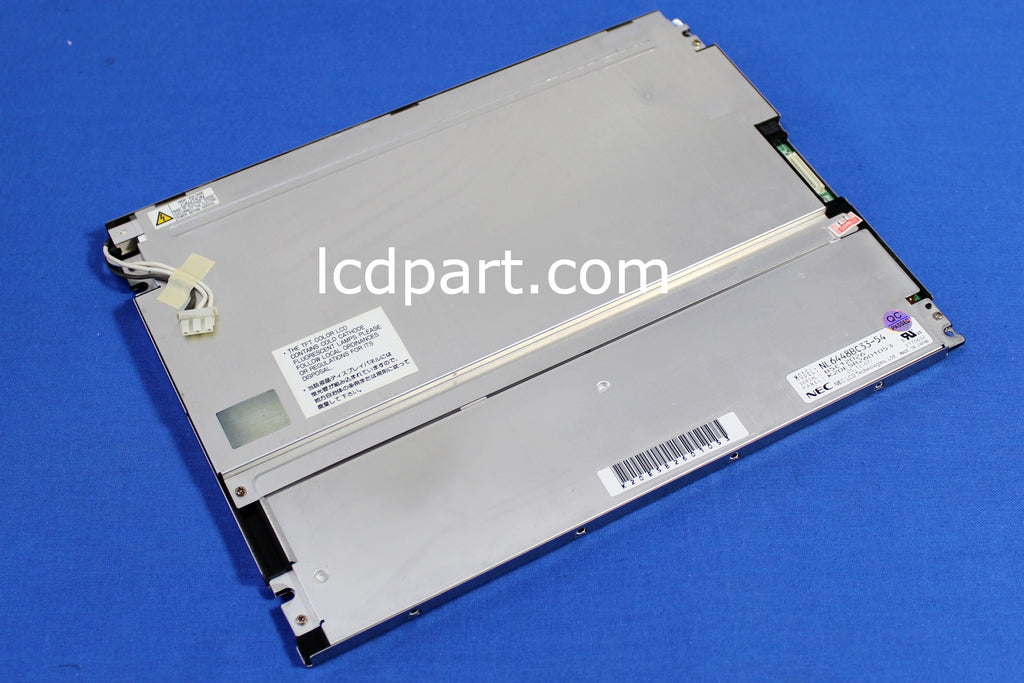

NEC NL6448BC33-31, one of the most popular LCD panels in an industrial application. This 10.4 inch NEC NL6448BC33-31 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our 104LHS-LED LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL6448BC33-31 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 211.2(H) X 158.4(V) |
Outline dimension | [mm] | 243.0(W) X 185.1(H) x 10.75(D) |
Bolt Hole Dimension | [mm] | 132.6 X 166.6 |
Input Voltage VDD | [Volt] | 3.3/5.0V |
Screen Wire Harness | TTL-DF9-31-2829 | |
Electrical Interface | TTL (6-bit) | |
White Luminance | [cd/m2] | 350 |
Contrast Ratio | 300:1 | |
BackLight Connector | BHR-03VS-1X1, 104LHS31 | |
Backlight Inverter | 104PWBR1-B | |
Response time, Rising | msec | 15 |
Response time, Falling | msec | 70 |
Viewing Angle - Horizontal | degree | 50 |
Viewing Angle - Vertical | degree | 45 |
Compatible with | MS104RBHR03X2DF931D1 | |
LCD controller kit | TTL-DF9-31_640X480 | |
LED Backlight kit | 104LHS-LED | |
Direct Replacement LCD | MS104RUBDF931D1 |
