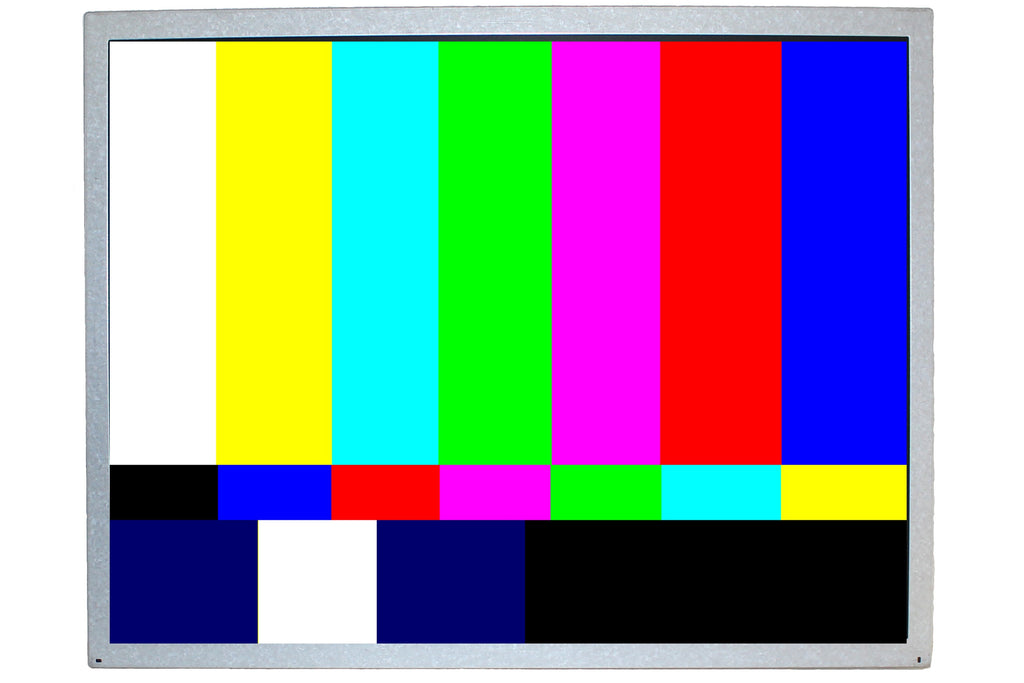

93-0875A Direct replacement LCD, P/N: 93-0875A-LCD


Size: 93-0875A-SHARP
Price:
$699.99

Description

93-0875A uses two different types of LCD screens (Sharp or LG Philips). Please double check your LCD screen before placing an order. However, the most popular one is using Sharp LCD.

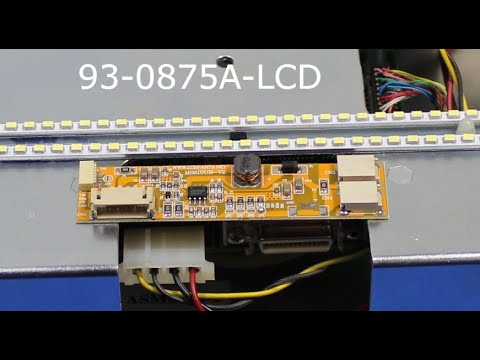

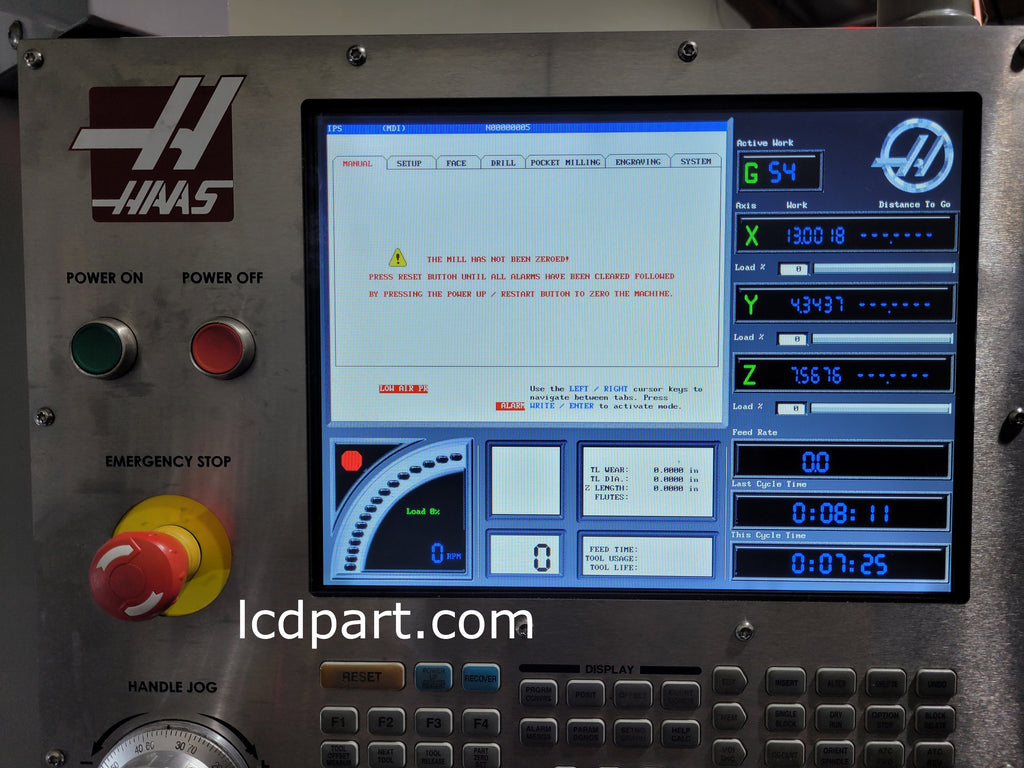

93-0875A-LCD is a direct replacement for HAAS 93-0875A Monitor. 93-0875A-LCD has a much better image quality and it is much brighter than old Haas 93-0875A HMI Monitor. Wider viewing angle and faster response time then old Haas 93-0875A HMI Monitor. It has upgraded to 93-0875A-LEDKIT upgrade Kit and 93-0875A-LCD will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.

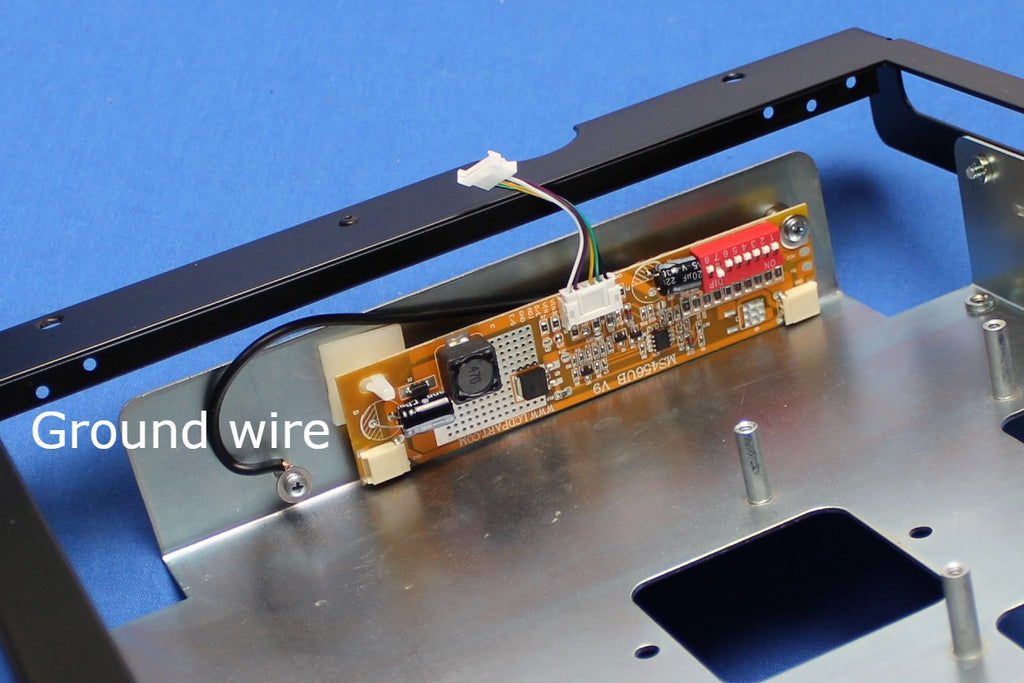

A wire adapter is included. It is easy to Install! No technical skiis required! Anyone can do it!
Notes:

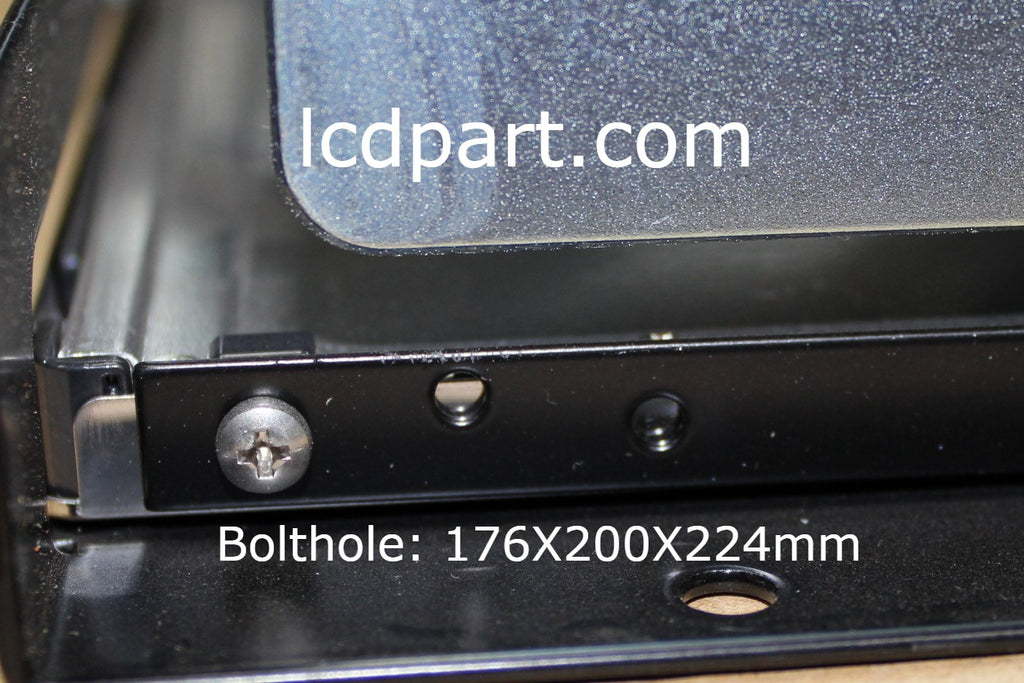

93-0875A has 3 different version of mounting boltholes and LCD screens:

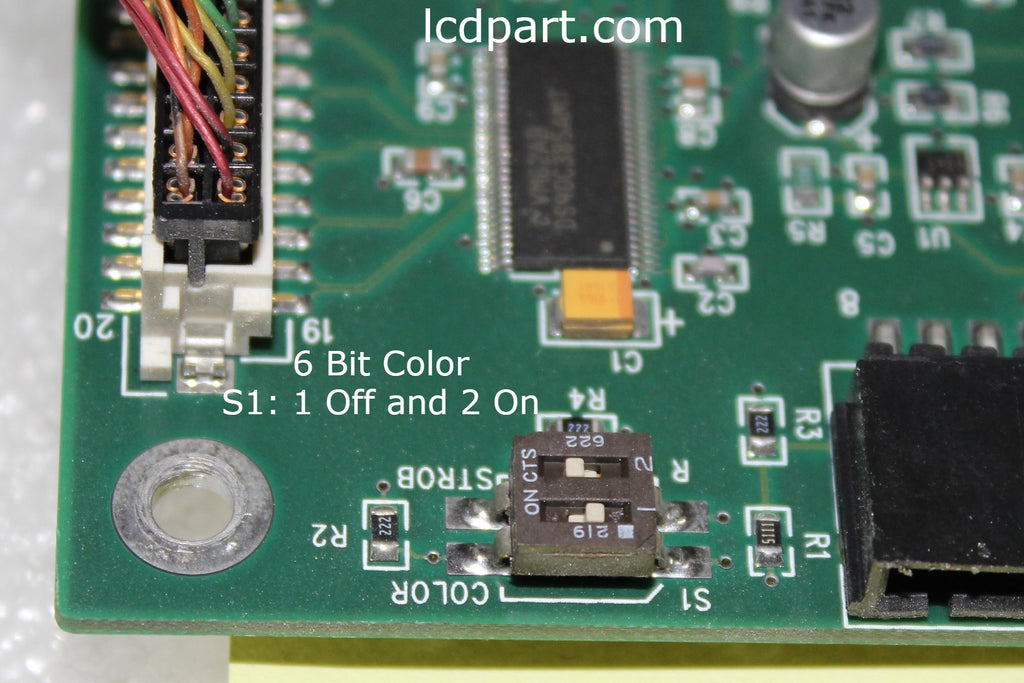

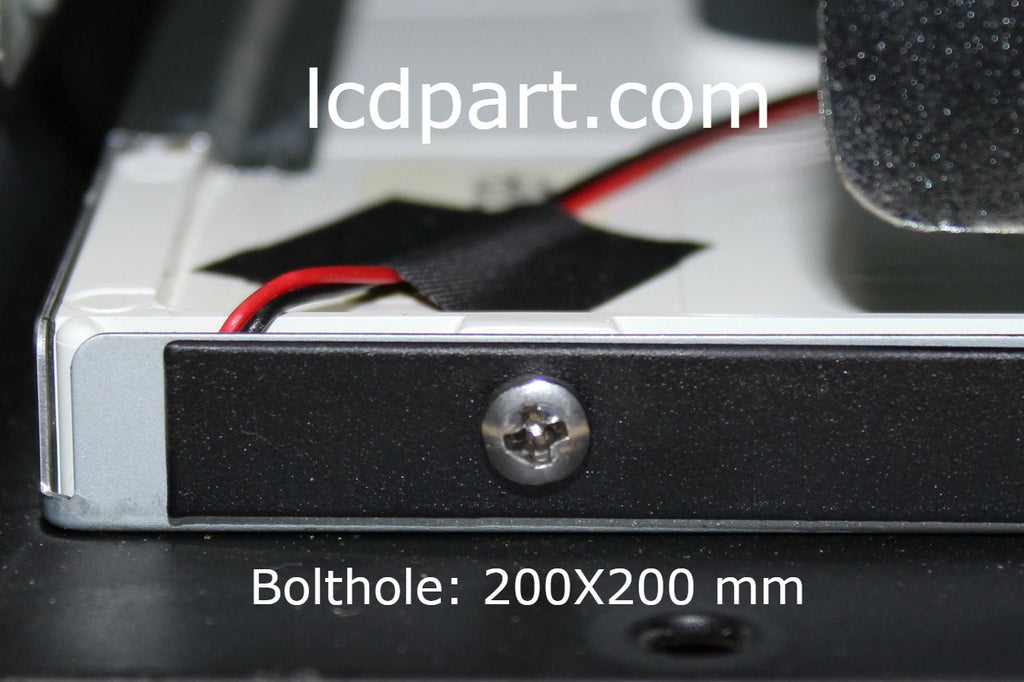

Older version has 200 X 200 mm with 6 bit Color (CCFL)

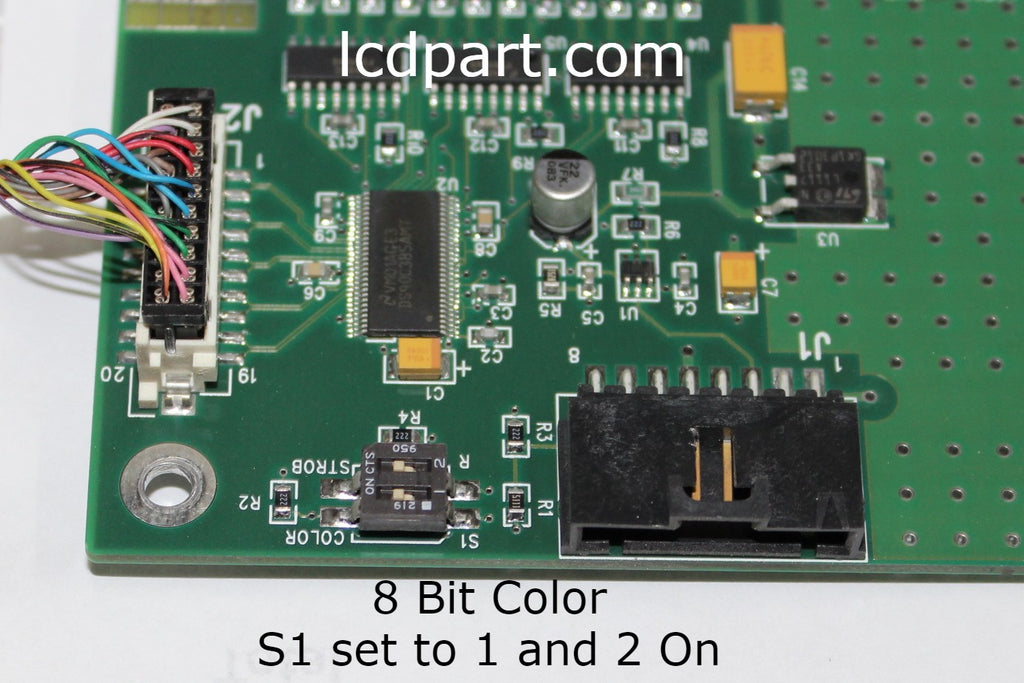

Newer version has 176 X 224 mm with 8 bit Color(CCFL)
The newest version has 176 X 224 mm with 8 bit color (LED Backlight)
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.1(V)
Outline dimension [mm] 326.0(W) X 252.0(H) X 11.2(D)
Bolt Hole Dimension [mm] 200 X 200, 176 X 224
Electrical Interface LVDS(6-bit/8-bit)
White Luminance [cd/m2] 1000
Contrast Ratio 1000:1
LED Strip Connector BHSR-02VS-1X1
LED Driver MS610UB-3
Response time, Rising msec 2
Response time, Falling msec 6
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 85
