LQ104S1DG21


Price:
$229.99

Description

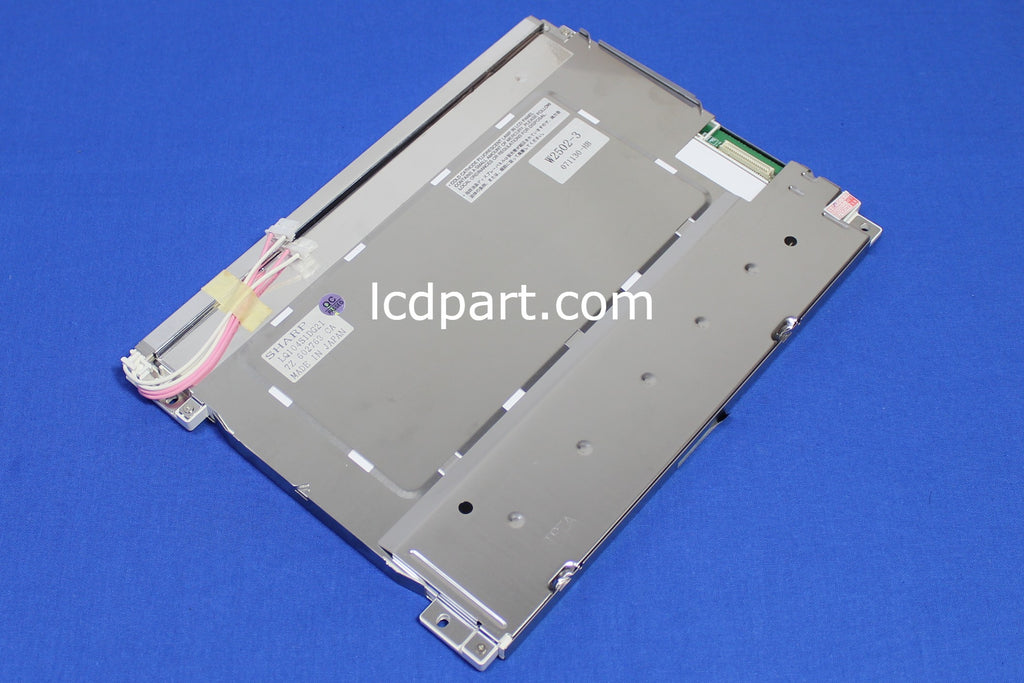

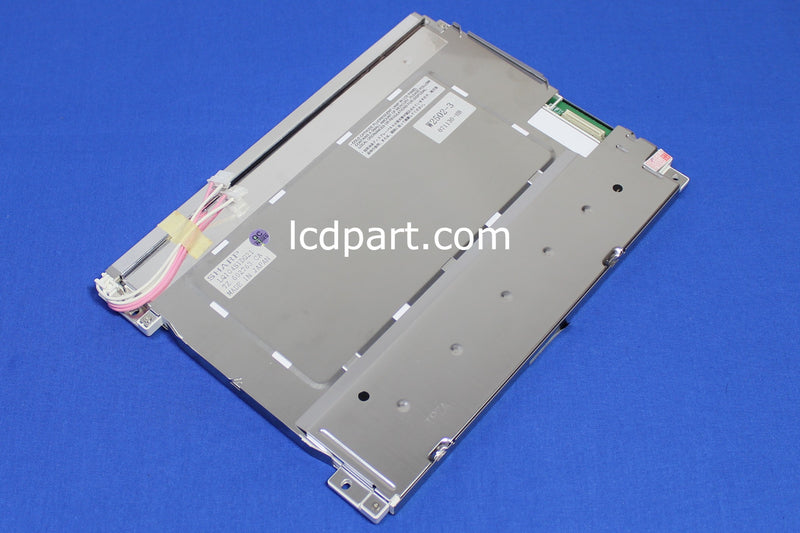

This refurbished Sharp LQ104S1DG21 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
Sharp LQ104S1DG21, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ104S1DG21 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54220LED5620X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for sharp LQ104S1DG21 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 800 X 600
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 246.5(W) X 179.4(H) x 15.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness TTL-DF9-41-3940
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 350
Contrast Ratio 300
Backlight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS496DI
Response time, Rising msec 10
Response time, Falling msec 25
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 70
