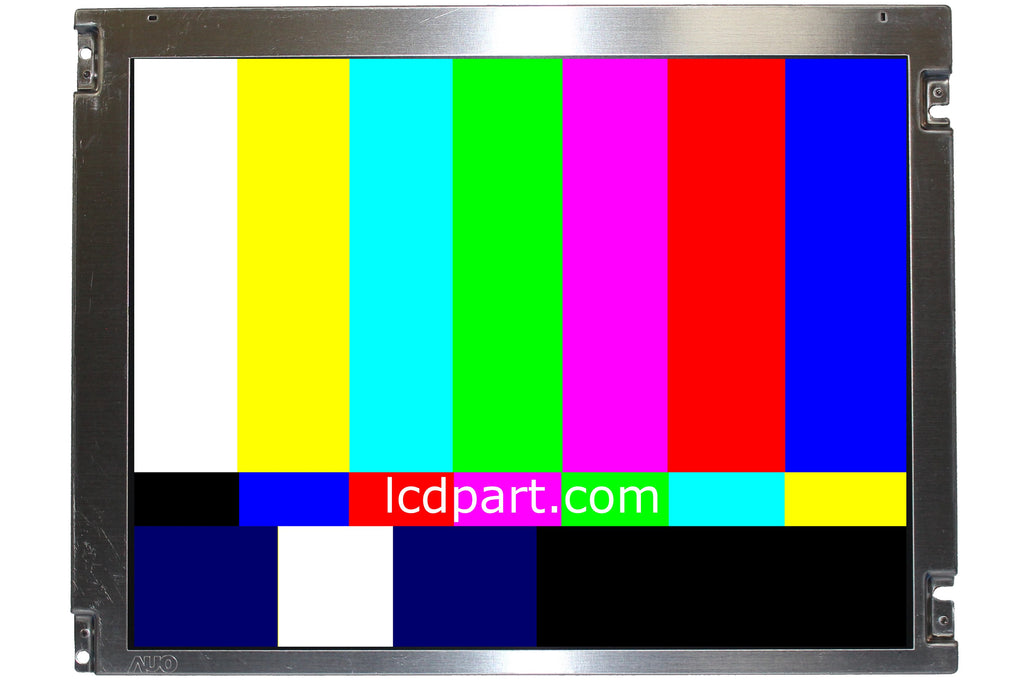

MS104RD4+DISENA, Direct Replacement for 10.4" Sharp LCD, 1000 nits


Price:
$399.99

Description

MS104RD4+DISENA is a direct replacement for the 10.4" SHARP LCD Screen. MS104RD4+DISENA has a much better image quality and it is much brighter than old SHARP LCD screens. Wider viewing angle and faster response time then old  LCD screens. It has upgraded our Sunlight Readable LED Kit and MS104RD4+DISENA will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from inverter board
Disconnect Screen wire harness on old LCD Screen
Remove old LCD Screen and mount MS104RD4+DISENA back to the same location
Connect Screen wire harness to MS104RD4+DISENA
Remove old CCFL Inverter and Mount MS610UB back to the same location
Connect Ground (GND) to Black wire
MS104RD4+DISENA has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
MS104RD4+DISENA included the following items:
Refurbished 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
MS610UB LED driver
6 pin pigtail connector with Red and Black wire
Compatible with the following Manufacturers and Models:
Manufacture Size LCD Screen (C7)
Mitsubishi 10.4" AA104SG01, AA104SG02, AA104SG04
Sharp 10.4" LQ104S1LG31, LQ104S1LG32
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 800 X 600
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 243.0(W) X 181.6(H) X 12.2(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit/8-bit)
White Luminance [cd/m2] 1000
Contrast Ratio 1000:1
BackLight Connector BHRS-02VS-1X2
Backlight Inverter MS610UB
Response time, Rising msec 6
Response time, Falling msec 19
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_800x600-6Bit
