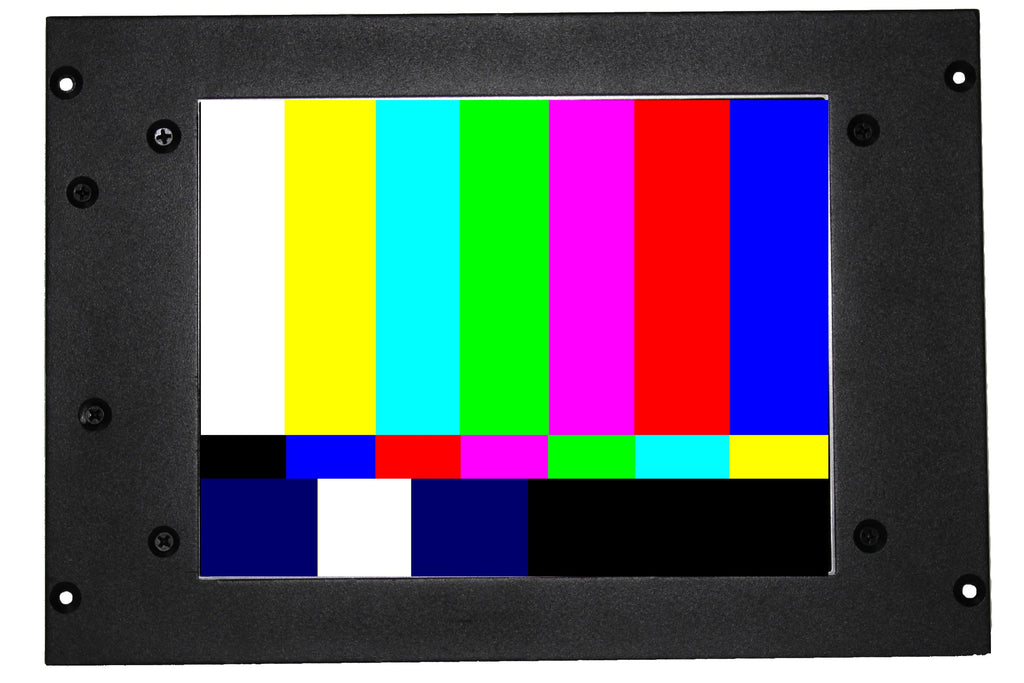

MS104RUBILZ34D6, Direct replacement for 10.4" NEC NL6448AC33-10



MS104RUBILZ34D6 is a direct replacement for 10.4” NEC NL6448AC33-10 LCD. MS104RUBILZ34D6 has a much better image quality and it is much brighter than old NEC NL6448AC33-10 LCD. Wider viewing angle and faster response time then old NEC NL6448AC33-10 LCD screen. It has upgraded our Sunlight Readable LED Kit and MS104RUBILZ34D6 will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.
Disconnect Screen wire harness on NEC NL6448AC33-10 LCD screen
Remove old NEC NL6448AC33-10 LCD and mount MS104RUBILZ34D6 back to the same location
Connect Screen wire harness to MS104RUBILZ34D6
MS104RUBILZ34D6 has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
MS104RUBILZ34D6 included the following items:
New 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
Compatible with the following Manufacturer's LCD Screen:
Manufacturer Size LCD Screen
NEC 10.4" NL6448AC33-06
NEC 10.4" NL6448AC33-10
General Specifications:
Item Unit Specifications (C16)
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 270.0(W) X 183.0(H) x 13.0(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 5.0V
Screen Wire Harness IL-Z-R10PL-SMTY(CN1 1 to 10), IL-Z-R13PL-SMTY(CN2 11 to 23), IL-Z-R11PL-SMTY(CN3 24 to 34)
Electrical Interface TTL
White Luminance [cd/m2] 1500
Contrast Ratio 1:1200
BackLight Connector BHSR-02VS-1X2
Backlight Inverter Build-In
Response time, Rising msec 6
Response time, Falling msec 19
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
