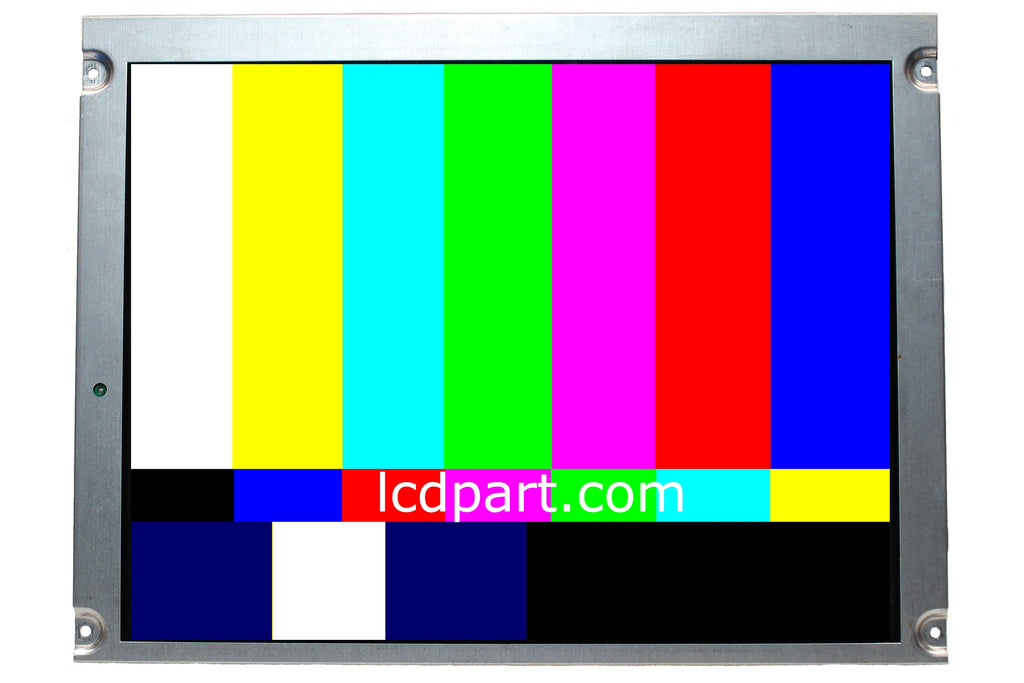

MS150RD2+30+MS530EXT, Direct replacement for 15 inch LCD, 1400 nits,



MS150RD2+30+MS530EXT is a direct replacement for the LCD screens that are listed below(same dimension, bolt hole and connector). Simply swap out your defective LCD screen with MS150RD2+30+MS530EXT, you now have a sunlight readable Monitor.
MS150RD2+30+MS530EXT has a much better image quality, wider viewing angle and faster response time then your old LCD screen. It has upgraded our Sunlight Readable LED Kit and it will last 10X longer than CCFL lamps.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty!
MS150RD2+30+MS530EXT is a direct replacement for the following LCD screens that originally equipped with 7 pin TDK inverter, such as CXA-0358, CXA-0315 & CXA-0370:
Manufacture Size LCD Screen
Hydis 15" HT15X15-D01
Sharp 15" LQ150X1LCD3, LQ150X1LGB1
Sharp 15" LQ150X1LW12, LQ150X1LW71, LQ150X1LW71N
Sharp 15" LQ150X1LW72, LQ150X1LW73
Samsung 15" LTM150XH-L1, LTM150XH-L4, LTM150XH-L06
Samsung 15" LTA150XH-L06
Toshiba 15" LTM15C458M, LTM15C458T
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 331.6(W) X 254.9(H) X 12.5(D)
Bolt Hole Dimension [mm] 200 X 212
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (8-bit)
White Luminance [cd/m2] 1400
Contrast Ratio 1500:1
BackLight Connector BHSR-02VS-1X2
LED Driver MS456UB
Response time, Rising msec 5
Response time, Falling msec 20
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
