NL8060BC31-47


Price:
$219.99

Description

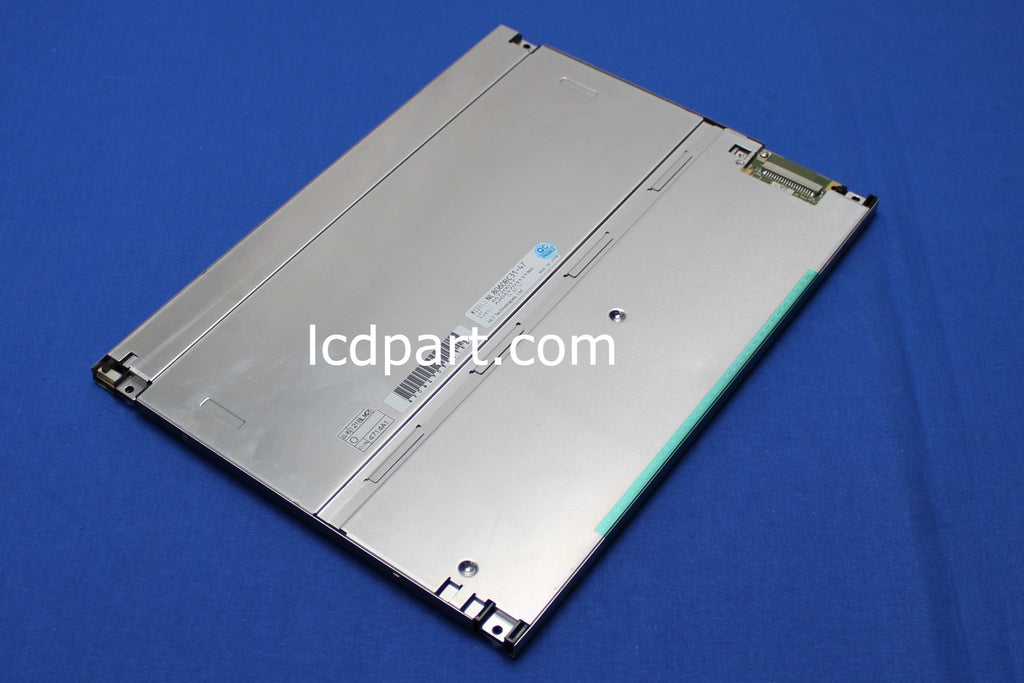

This refurbished NEC NL8060BC31-47 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

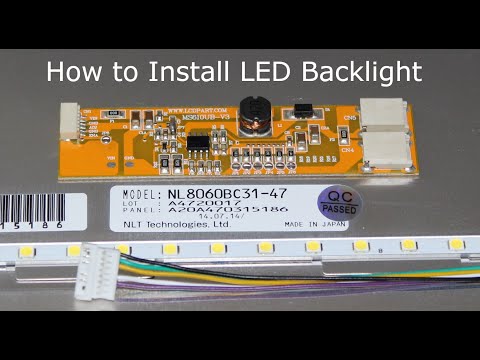

NL8060BC31-47, one of the most popular LCD screens in control of industrial and medical applications. This 12.1 inch NEC NL8060BC31-47 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44255X11R7+MS534EXT LED kit, it can reach 1500 nits or higher.
A wire adapter is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL8060BC31-47 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 280.0(W) X 210.0(H) x 9.1(D)
Bolt Hole Dimension [mm] 181.3 X 181.3
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 450
Contrast Ratio 900:1
BackLight Connector SHR-08V-S, 121LHS29
LED Driver 121PW02F
Response time, Rising msec 3
Response time, Falling msec 15
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS-R_800X600
LED Back light kit SB44255X11R7+MS534EXT
