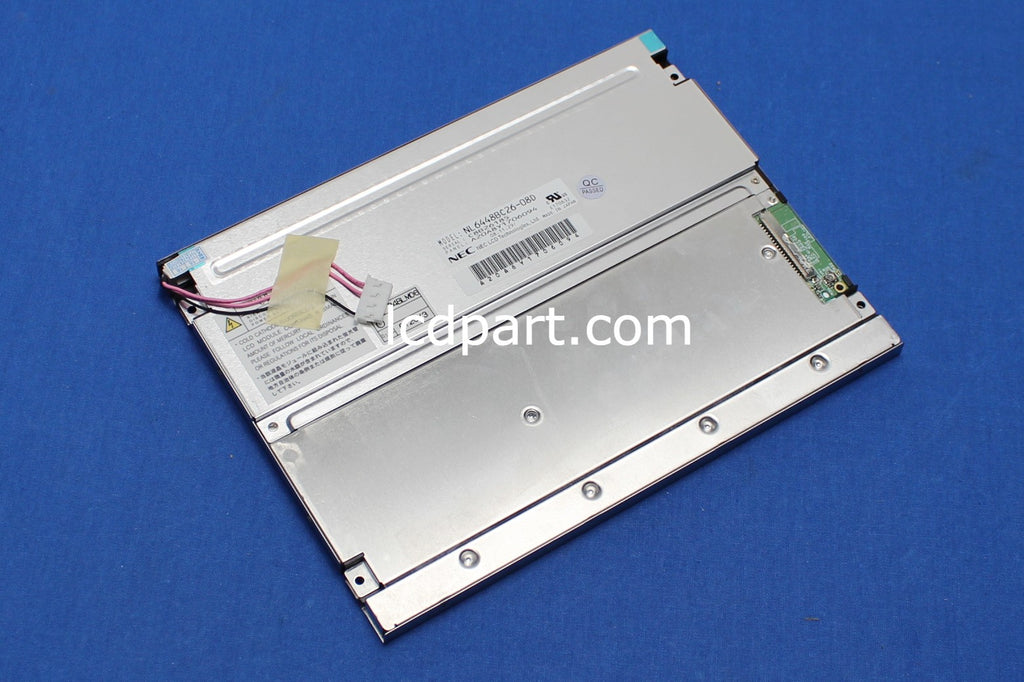

This Refurbished NEC NL6448BC26-08 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new conditions ! 90 days warranty
NEC NL6448BC26-08, one of the most popular LCD panels in an industrial application. This 8.4 inch NEC NL6448BC26-08 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our 84LHS-LED LED kit is the best option (LED Upgrade kit for NEC NL6448BC26-08 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
|Native Resolution||640 X 480|
|Active Area||[mm]||170.88(H) X 128.16(V)|
|Outline dimension||[mm]||200.0(W) X 150.2(H) x 10.5(D)|
|Bolt Hole Dimension||[mm]||112 X 112|
|Input Voltage VDD||[Volt]||3.3V|
|Screen Wire Harness||DF14-20P-1LVDS-R|
|Electrical Interface||LVDS (6-bit)|
|BackLight Connector||BHR-04VS-1X1, 84LHS06|
|Backlight Inverter||84PW031, 84PW041, +5V|
|Response time, Rising||msec||10|
|Response time, Falling||msec||10|
|Viewing Angle - Horizontal||degree||85|
|Viewing Angle - Vertical||degree||85|
|LCD controller kit||DF14-20P-1LVDS-R_640X480|
|LED Backlight kit||84LHS-LED|
