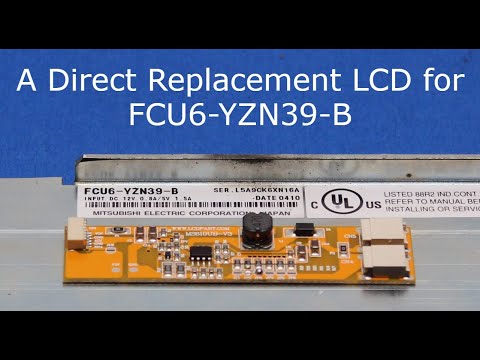

FCU6-YZN39-B-LCD is a direct replacement for FCU6-YZN39-B. FCU6-YZN39-B-LCD has a much better image quality and is much brighter than old FCU6-YZN39-B. Wider viewing angle and faster response time then old FCU6-YZN39-B. FCU6-YZN39-B-LCD has upgraded our Sunlight Readable LED Kit and FCU6-YZN39-B-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamps and Inverter wire harness from Inverter.

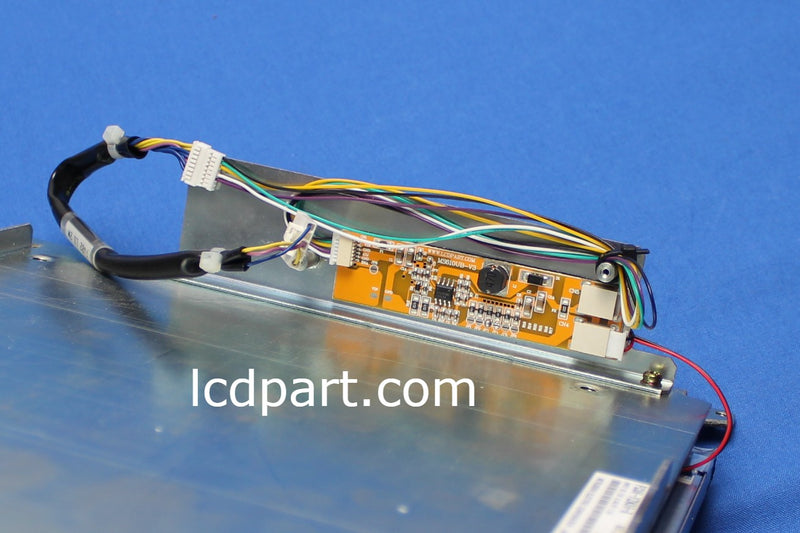

Mount our LED driver to the same location.
Disconnect Screen wire harness on FCU6-YZN39-B
Remove old FCU6-YZN39-B
Mount FCU6-YZN39-B-LCD back to the same location
Connect Screen wire harness to FCU6-YZN39-B-LCD
Connect existing inverter wire harness to a LED wire adapter
FCU6-YZN39-B-LCD has the same interface connector, dimension and screw hole as the old FCU6-YZN39-B.
FCU6-YZN39-B-LCD included the following items:
1) A LCD screen ( it has upgraded to our Sunlight Readable LED kit)
1) A LED driver
1) A wire adapter
