LQ10D368 Direct replacement LCD, P/N: LQ10D368-LCD

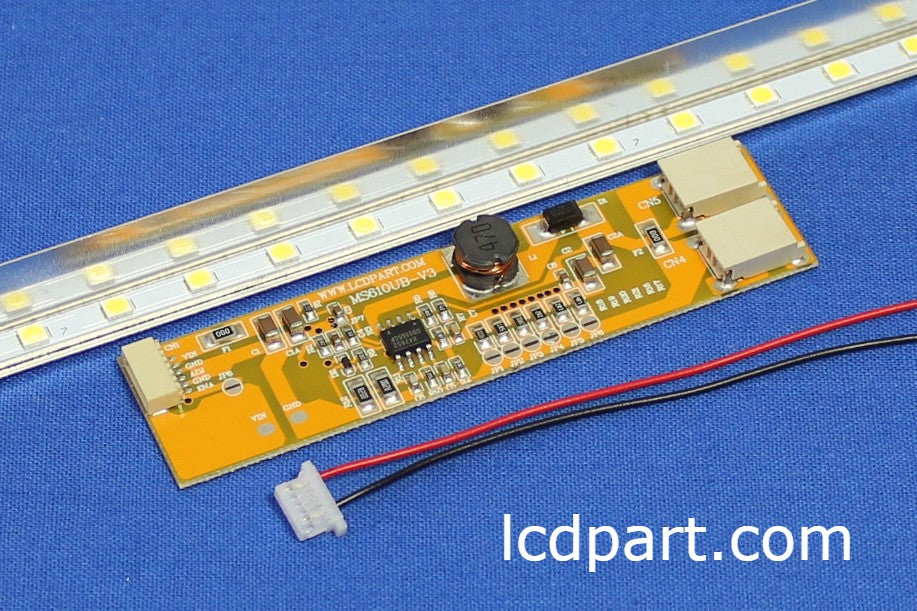

LQ10D368-LCD is a direct replacement for Sharp LQ10D368. LQ10D368-LCD has a much better image quality and is much brighter than old LQ10D368. Wider viewing angle and faster response time then old LQ10D368. LQ10D368-LCD has upgraded our LQ10D368-LEDKIT upgrade Kit and LQ10D368-LCD will last 10X longer than CCFL lamps.
No technical skills required! Soldering is required! It is easy to Install! Anyone can do it! Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on LQ10D368
Remove old LQ10D368
Mount LQ10D368-LCD back to the same location
Connect Screen wire harness to LQ10D368-LCD
Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire!
Note: LQ10D368-LCD has the same interface connector, dimension and screw hole as old LQ10D368
