EDAF3 -LCD is a direct replacement for MAKINO EDAF. EDAF3-LCD has a much better image quality and is much brighter than old MAKINO EDAF3. Wider viewing angle and faster response time then old MAKINO EDAF3. It has upgraded our EDAF3-LEDKIT upgrade kit and EDAF3-LCD will last 10X longer than CCFL lamps. No technical skills required! It is easy to install! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from CCFL Inverter
Disconnect Screen wire harness on MAKINO EDAF
Remove old MAKINO EDAF
Mount EDAF3-LCD back to the same location
Connect Screen wire harness to EDAF3-LCD
Connect wire adapter to the existing inverter wire harness
EDAF3-LCD has the same interface connector, dimension and screw hole as the old EDAF3.
EDAF3-LCD included the following items:

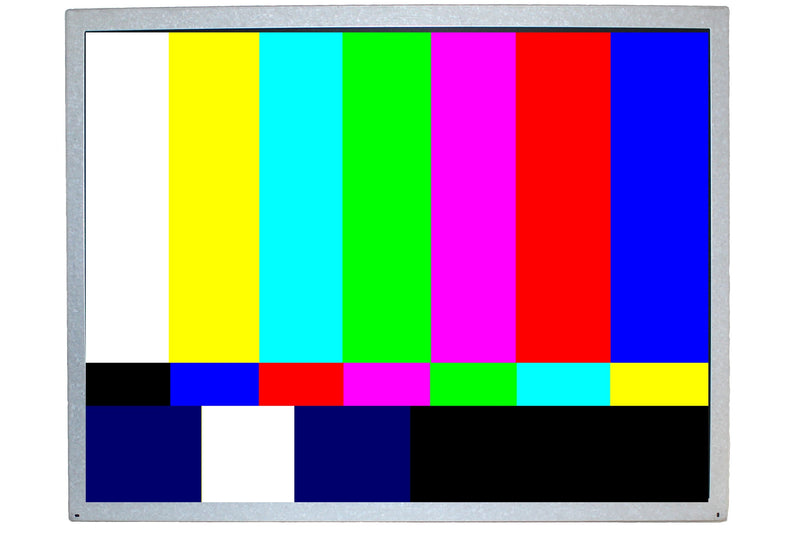

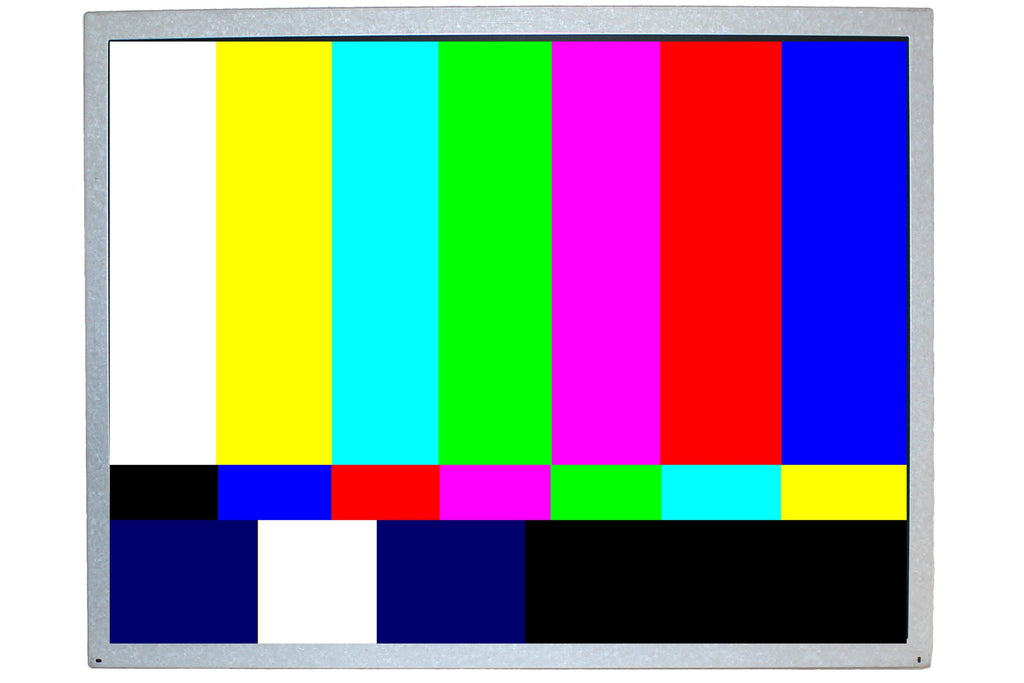

1) 15 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS456UB LED driver
1) A wire adapter is included
