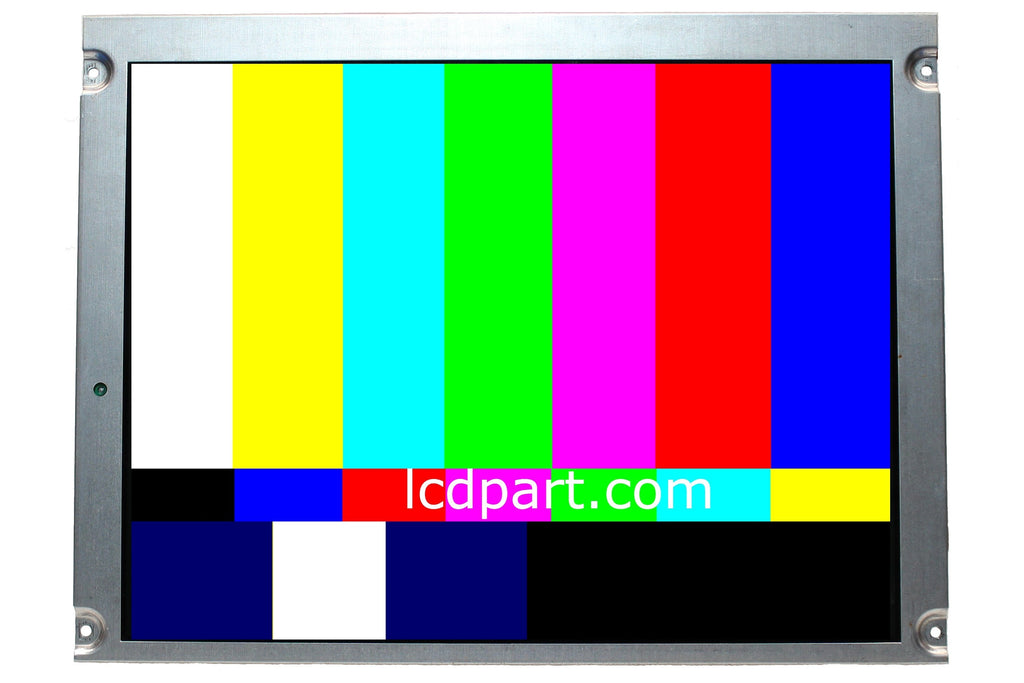

007-0022-007L2-LCD is a direct replacement for 007-0022-007L2. 007-0022-007L2-LCD has a much better image quality and is much brighter than old 007-0022-007L2. Wider viewing angle and faster response time then old 007-0022-007L2. 007-0022-007L2-LCD has upgraded our Sunlight Readable LED Kit and 007-0022-007L2-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from Inverter.
Disconnect Screen wire harness on 007-0022-007L2
Remove old 007-0022-007L2
Mount 007-0022-007L2-LCD back to the same location
Connect Screen wire harness to 007-0022-007L2-LCD
Connect existing inverter wire harness to a LED wire adapter
007-0022-007L2-LCD has the same interface connector, dimension and screw hole as the old 007-0022-007L2.
007-0022-007L2-LCD included the following items:
1) A LCD screen ( it has upgraded to our Sunlight Readable LED kit)
1) MS456UB LED driver
1) A wire adapter
