15 inch sunlight readable LCD kit, P/N: MS150RSBLCDKIT2000, 2000 nits


Input Source: DVI and VGA
Price:
$599.99

Description

MS150RSBLCDKIT2000 Sunlight Readable LCD kit is designed to be used on outdoor environment. With our proprietary LED upgrade kit installed, It is so bright that the contents on display visible under strong sunlight (2000 nits).  It is easy to install. Anyone can do it!
You also have an option to choose other type of controller board on right side:

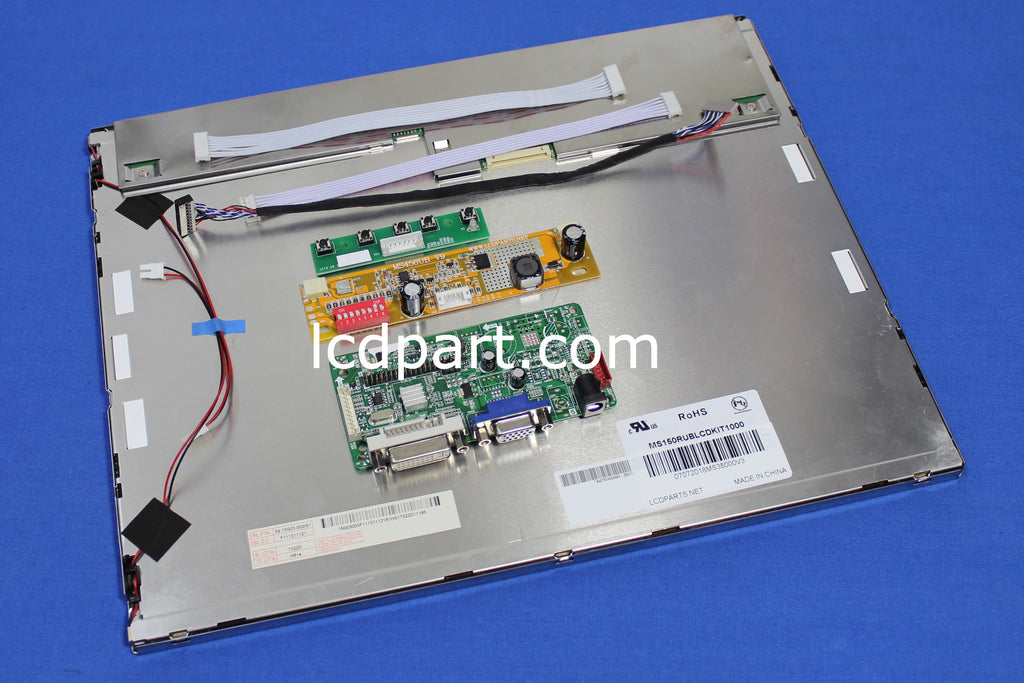

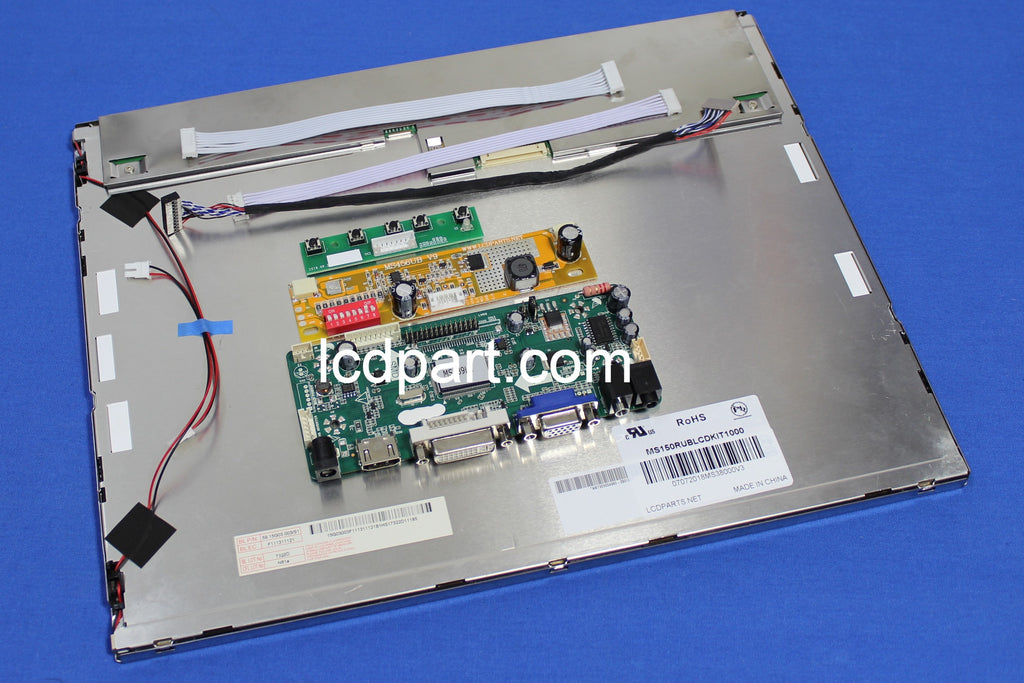

MS150RSBLCDKIT2000 kit included the following items:
15 Refurbished LCD, upgraded to Sunlight Readable UB LED Kit (1024X768)
MS460LC LCD Controller (or MS489LC)
MS610UB LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
LCD Controller Specifications:
Input source: DVI and VGA (or HDMI, DVI and VGA)
Accept 12V DC Input
OSD: Chinese, English, French, Italian, German, Korean. Russian, Spanish
Key Functions: On/Off, Menu, Auto, +, -(5 Buttons)
Compact Size:
DVI and VGA(S460LC): 110mm(L) X 55mm(W) X 20mm(H)
DVI, HDMI and VGA(MS489LC): 58 mm(L) X 140mm(W) X 20mm(H)
Automatically synchronizes to most industry standard modes.
Automatic image scaling and contrast enhancement.
AC-DC Adapter is NOT included.
LCD Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(8-bit)
White Luminance [cd/m2] 1000
Contrast Ratio 1500:1
BackLight Connector BHSR-02VS-1X2
Backlight LED Driver MS456UB
Response time, Rising msec 5.7
Response time, Falling msec 2.3
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
