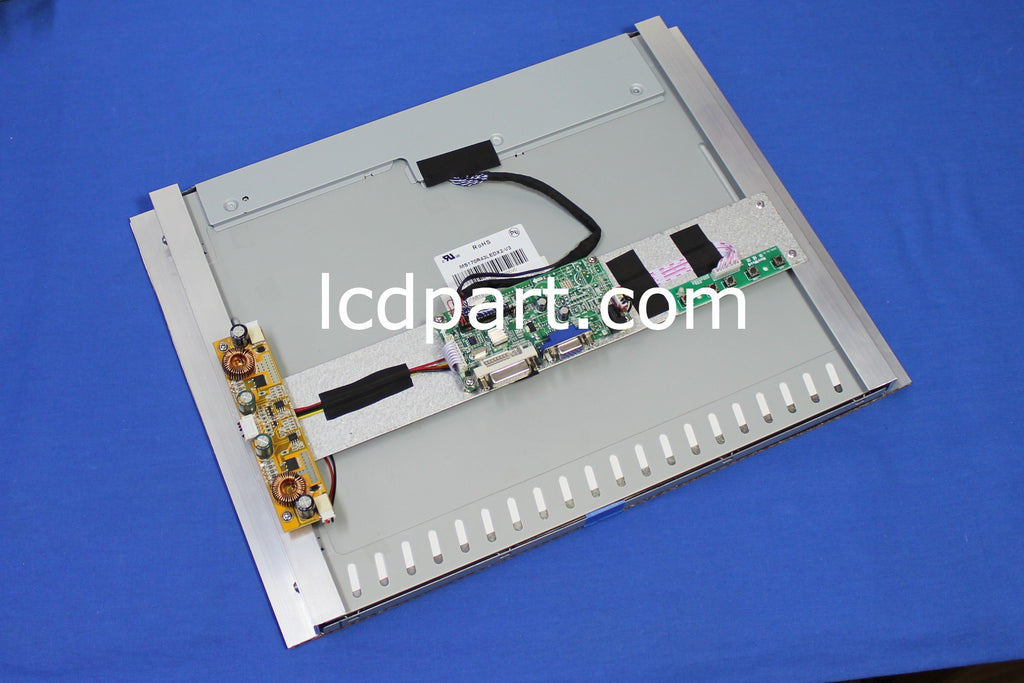

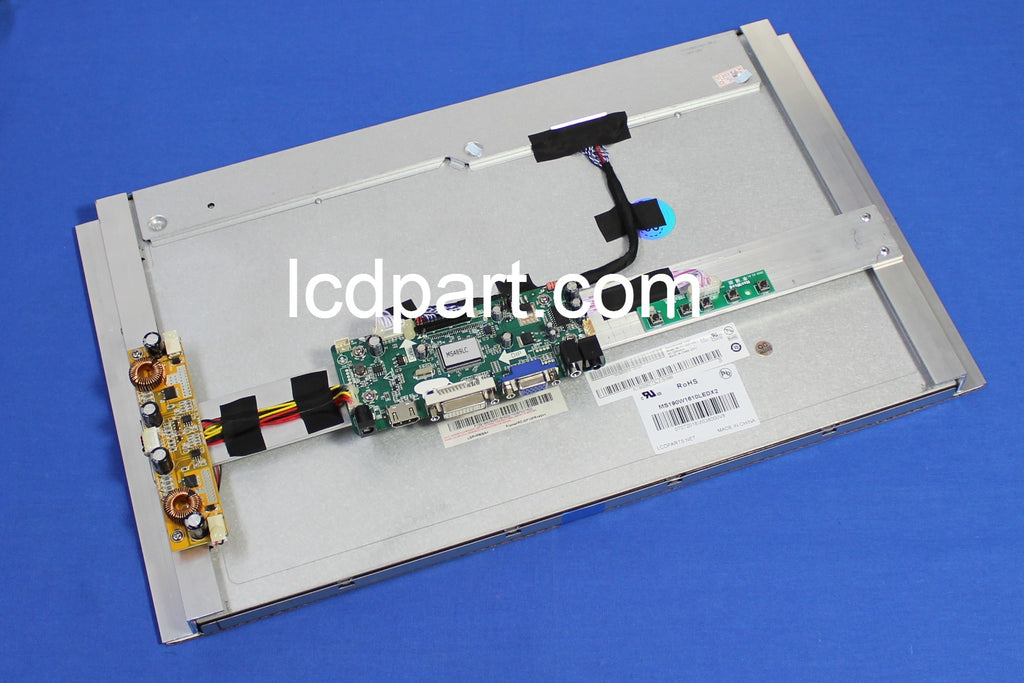

This 19" LCD kit had upgraded to UB60 series LED backlight kit. It is designed to be easily integrated into (or Replacing your existing defective LCD monitor) kiosks, POS, avionics, Vending machine, gaming and all other applications. It is easy to install. Anyone can do it!
You also have an option to choose other type of controller board on right side:
MS190WUBOP1200 included the following items:
19 inch Refurbished LCD, upgraded to Sunlight Readable LED kit (1280X1024)
MS460LC LCD Controller(or MS489LC)
MS615UB LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
Outer Dimension with Mounting bracket: 465mm(18.31") × 278mm(10.95") x 50mm(1.97")
LCD Controller Specifications:
Input source: DVI and VGA (or HDMI, DVI and VGA)
OSD: Chinese, English, French, Italian, German, Korean. Russian & Spanish
Key Functions: On/Off, Menu, Auto, +, - (5 Buttons)
Compact Size: 110mm(L)X55mm(W)X15mm(H)
Automatic image scaling and contrast enhancement.
AC-DC Adapter and VGA cable are included..
|Native Resolution||1440 X 900|
|Active Area||[mm]||408.24(H) X 255.15(V)|
|LCD Outline dimension||[mm]||428.0(W) X 278.0(H) X 16.5(D)|
|Bolt Hole Dimension||[mm]||98 X 98|
|Input Voltage VDD||[Volt]||5V|
|Screen Wire Harness||FIX-30S-2LVDS|
|Electrical Interface||Dual channel LVDS (8-bit)|
|Response time, Rising||msec||3.6|
|Response time, Falling||msec||1.4|
|Viewing Angle - Horizontal||degree||170|
|Viewing Angle - Vertical||degree||160|
