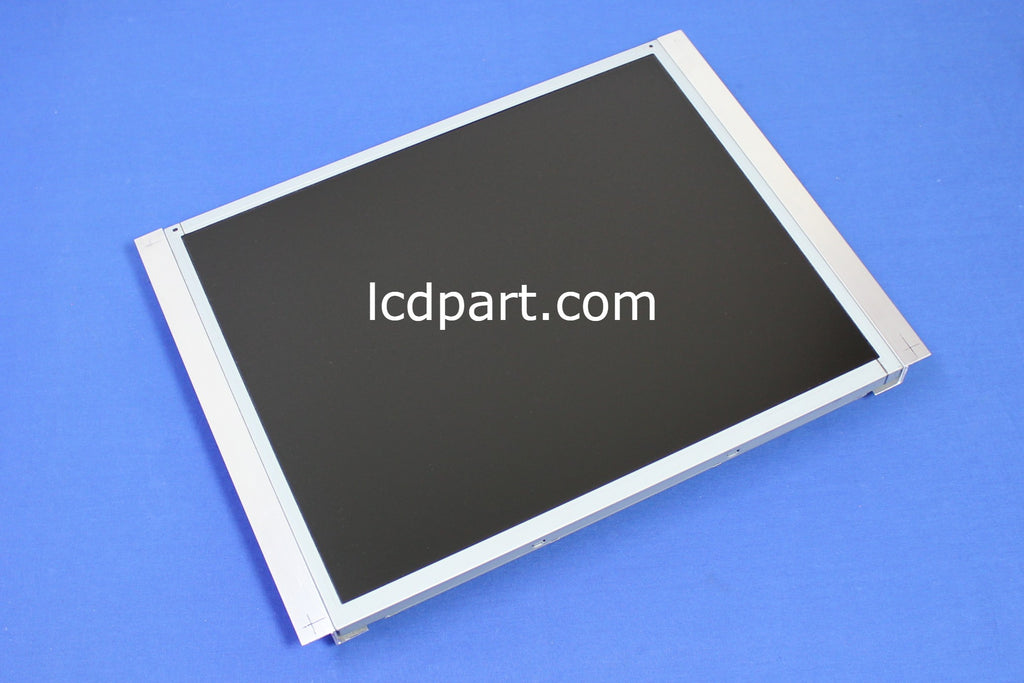

17 inch sunlight readable Open Frame, P/N: MS170RUBOP1200, 1200 nits


Input Source: DVI and VGA
Price:
$429.99

Description

MS170RUBOP1200 is designed to be used on outdoor environment. With our proprietary LED upgrade kit installed, It is so bright that the contents on display visible under strong sunlight. 30 day refund policy and 90 days warranty. It is designed to be easily integrated into (or Replacing your existing defective LCD monitor) kiosks, POS, avionics, Vending machine, gaming and all other applications. It is easy to install. Anyone can do it!
You also have an option to choose other type of controller board on right side:

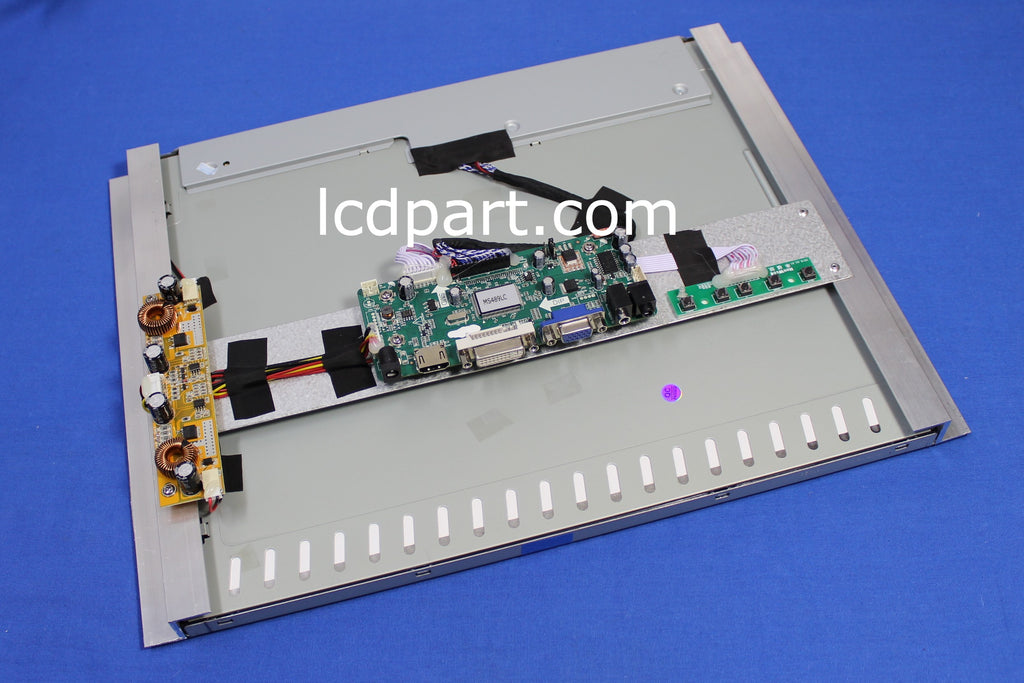

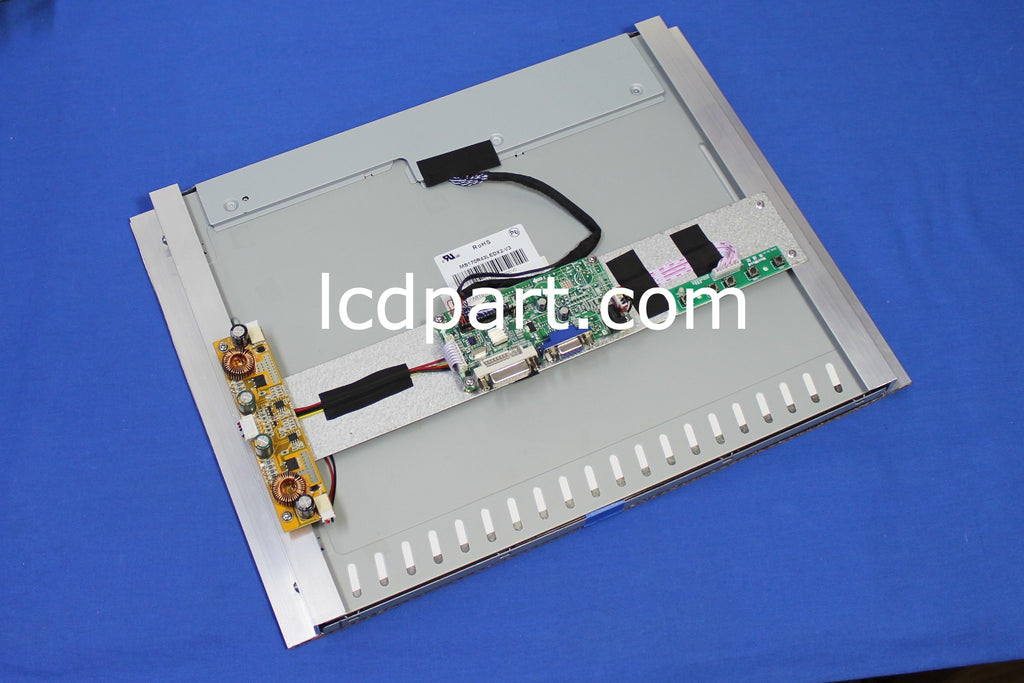

MS170RUBOP1200 included the following items:
17 inch Refurbished LCD, upgraded to Sunlight Readable LED kit (1280X1024)
MS460LC LCD Controller(or MS489LC)
MS615UB LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
LCD Controller Specifications:
Input source: DVI and VGA (or HDMI, DVI and VGA)
OSD: Chinese, English, French, Italian, German, Korean. Russian & Spanish
Key Functions: On/Off, Menu, Auto, +, - (5 Buttons)
Compact Size: 110mm(L)X55mm(W)X15mm(H)
Automatic image scaling and contrast enhancement.
AC-DC Adapter and VGA cable are included.
LCD Specifications:
Item Unit Specifications
Screen Size [inch] 17
Native Resolution 1280 X 1024
Active Area [mm] 337.920(H) X 270.336(V)
Outline dimension [mm] 358.5(W) X 296.5(H) X 15.8(D)
Bolt Hole Dimension [mm] 261 X 240
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS (8-bit)
White Luminance [cd/m2] 1200
Contrast Ratio 2000:1
BackLight Connector BHSR-02VS-1X2
LED Driver MS615UB
Response time, Rising msec 3.5
Response time, Falling msec 1.5
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
