Description
MS215WLCDKIT300 i a 21.5 inch LCD screen inluded its origianl manufactuer's LED backlight. It is easy to install. Anyone can do it! 90 days warranty.
You also have an option to choose other type of controller board on right side:
MS215WLCDKIT300 LCD kit included the following items:
21.5" LCD that originally equipped with its manufactor LED backlight(1920X1080)

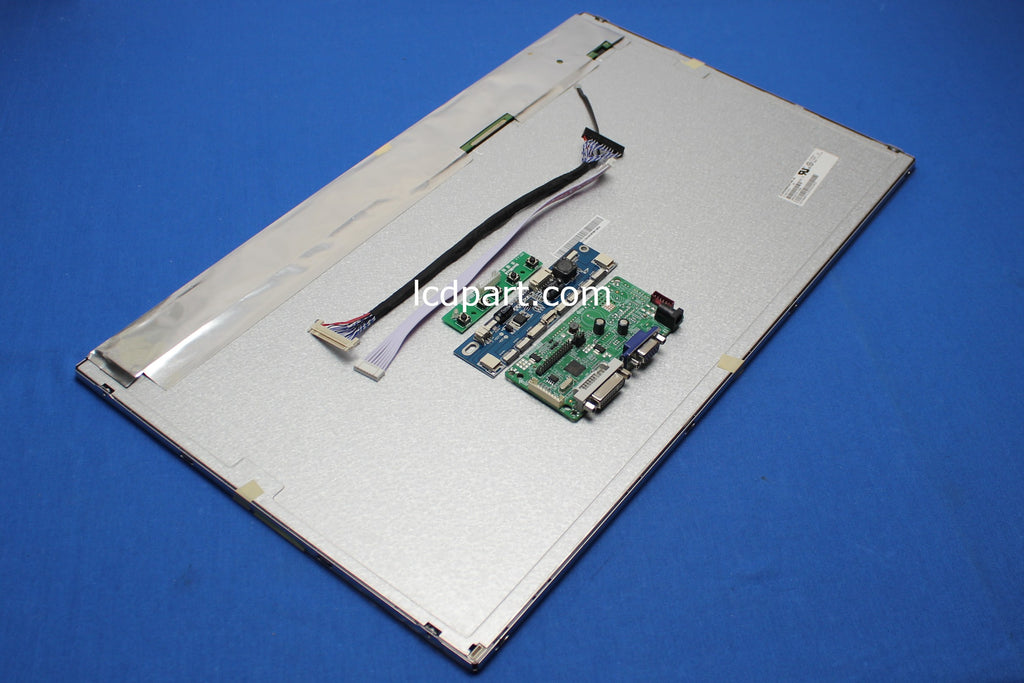

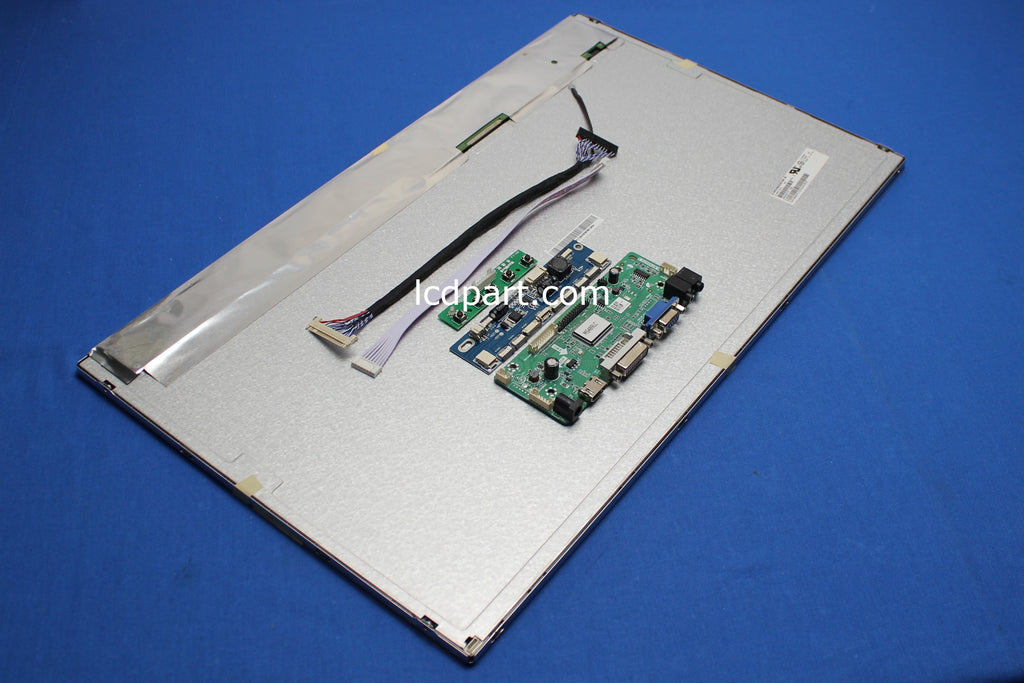

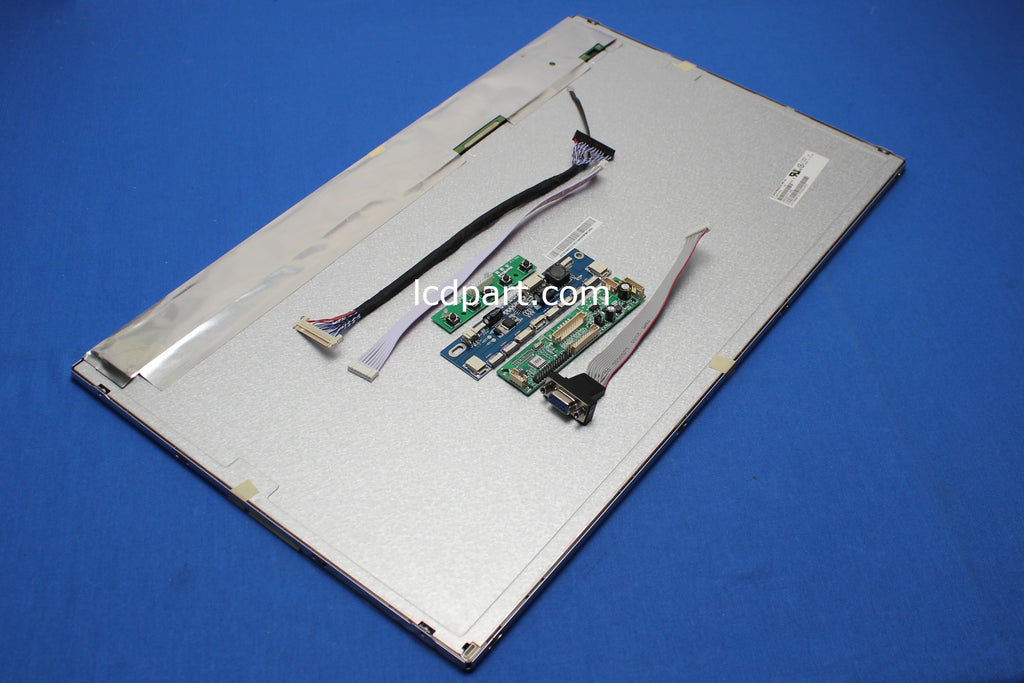

MS459LC(VGA), MS460LC (DVI and VGA) or MS489LC(DVI, HDMI, VGA, AV) LCD Controller
MS558LEDD LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
LCD Controller Specifications:
Input source: VGA only, DVI and VGA or HDMI, DVI and VGA
Accept 12V DC Input
OSD: Chinese, English, French, Italian, German, Korean. Russian, Spanish
Key Functions: On/Off, Menu, Auto, +, -(5 Buttons)
Compact Size:
VGA only (MS459LC): 110mm(L) X 30mm(W) X 20mm(H)
DVI and VGA(S460LC): 110mm(L) X 55mm(W) X 20mm(H)
DVI, HDMI and VGA(MS489LC): 58 mm(L) X 140mm(W) X 20mm(H)
Automatically synchronizes to most industry standard modes.
Automatic image scaling and contrast enhancement.
AC-DC Adapter is NOT included.
LCD Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 21.53 |
Native Resolution | 1920 X 1080 | |
Active Area | [mm] | 476.64(H) X 268.11(V) |
Outline dimension | [mm] | 495.6(W) X 292.2(H) X 9.85(D) |
Bolt Hole Dimension | [mm] | 236 X 256 |
Input Voltage VDD | [Volt] | 5.0V |
Screen Wire Harness | FIX-30S-2LBDS | |
Electrical Interface | LVDS (6-bit) | |
White Luminance | [cd/m2] | 250 |
Contrast Ratio | 1000:1 | |
BackLight Connector | CI1400SL000-NH(MS570EXT) | |
Backlight Inverter | MS588LEDD | |
Response time, Rising | msec | 5 |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | 170 |
Viewing Angle - Vertical | degree | 170 |
