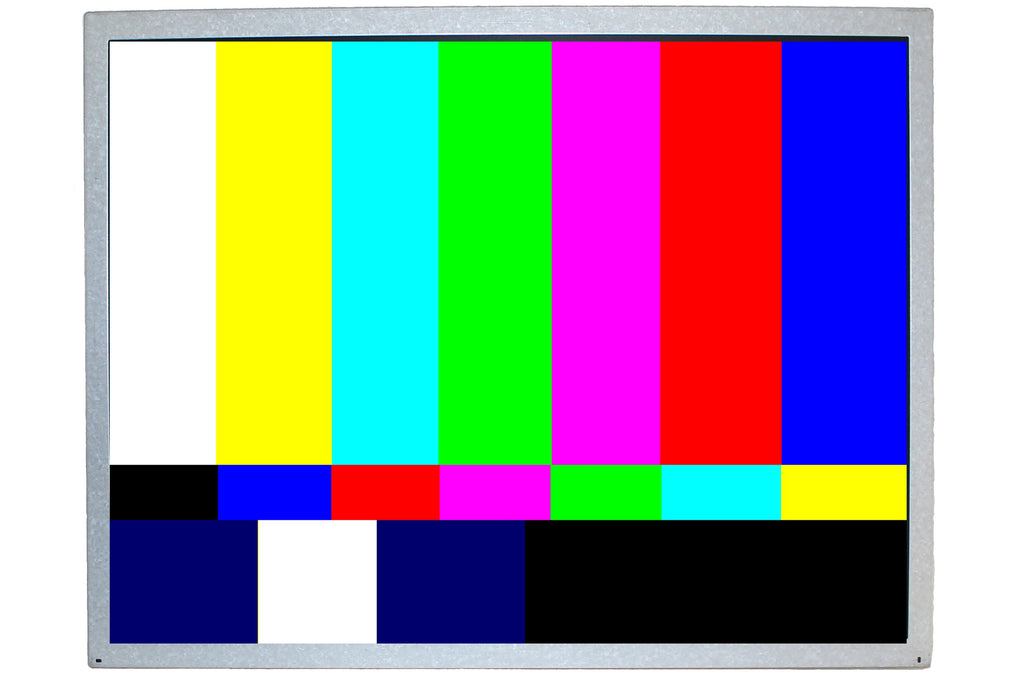

6AV6644-0CB01-2AX0-LCD is a direct replacement for 6AV6644-0CB01-2AX0. 6AV6644-0CB01-2AX0-LCD has a much better image quality and is much brighter than old 6AV6644-0CB01-2AX0. Wider viewing angle and faster response time then old 6AV6644-0CB01-2AX0. 6AV6644-0CB01-2AX0-LCD has upgraded our Sunlight Readable LED Kit and 6AV6644-0CB01-2AX0-LCD will last 10X longer than CCFL lamps.
No technical skills required! Soldering is required! It is easy to Install! Anyone can do it! Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on 6AV6644-0CB01-2AX0
Remove old 6AV6644-0CB01-2AX0
Mount 6AV6644-0CB01-2AX0-LCD back to the same location
Connect Screen wire harness to 6AV6644-0CB01-2AX0-LCD
Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire!
Note: 6AV6644-0CB01-2AX0-LCD has the same interface connector, dimension and screw hole as old 6AV6644-0CB01-2AX0
