6AV7800-0AB10-1AC0 Direct replacement LCD, P/N: 6AV7800-0AB10-1AC0-LCD



Are you tired of constantly replacing CCFL backlight lamps again, again and again on 6AV7800-0AB10-1AC0? When the situation has no time for downtime. To extend the 6AV7800-0AB10-1AC0 LCD screen's life and improve its performance, upgrading to our 6AV7800-0AB10-1AC0-LEDKIT is the best option. LEDs have a longer lifespan, typically lasting over 100,000 hours(last 10X longer than CCFL)
MS690EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on 6AV7800-0AB10-1AC0
Remove old 6AV7800-0AB10-1AC0
Mount 6AV7800-0AB10-1AC0-LCD back to the same location
Connect Screen wire harness to 6AV7800-0AB10-1AC0-LCD

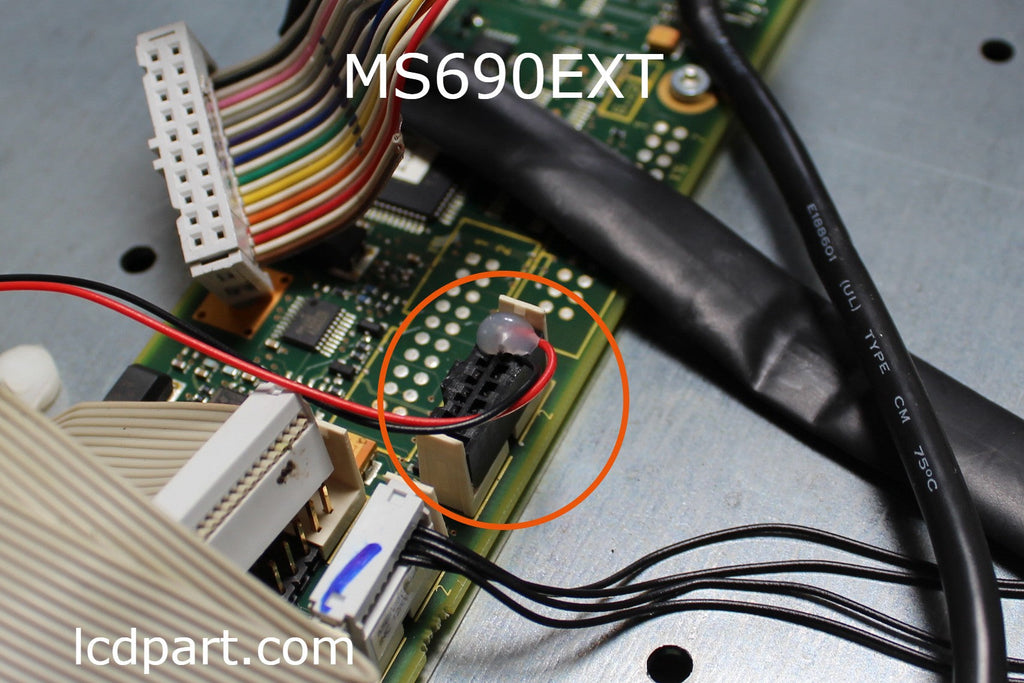

Connect MS690EXT to main board
6AV7800-0AB10-1AC0-LCD has the same interface connector, dimension and screw hole as the old 6AV7800-0AB10-1AC0.
6AV7800-0AB10-1AC0-LCD included the following items:

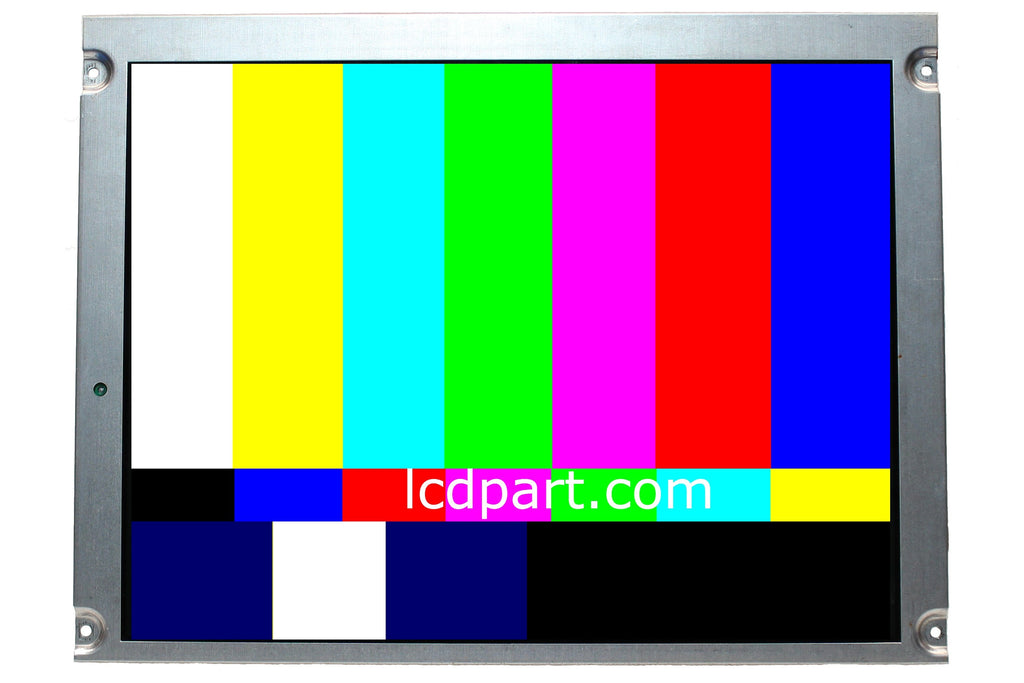

12.1 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)

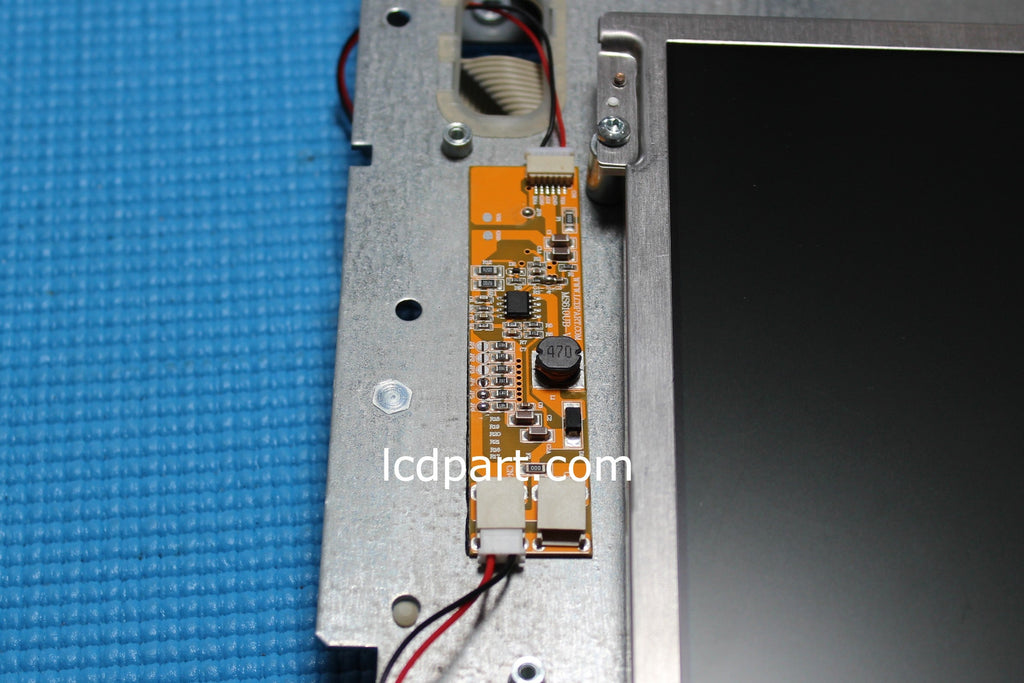

MS610UB LED driver
MS690EXT wire adapter
