A02B-0222-C132-LCD is a direct replacement for Fanuc A02B-0222-C132/TAR. A02B-0222-C132-LCD has a much better image quality and is much brighter than old A02B-0222-C132/TAR. Wider viewing angle and faster response time then old A02B-0222-C132/TAR. A02B-0222-C132-LCD has upgraded our Sunlight Readable LED Kit and A02B-0222-C132-LCD will last 10X longer than CCFL lamps.
MS184EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on A02B-0222-C132
Remove old A02B-0222-C132/TAR
Mount A02B-0222-C132-LCD back to the same location
Connect Screen wire harness to A02B-0222-C132-LCD

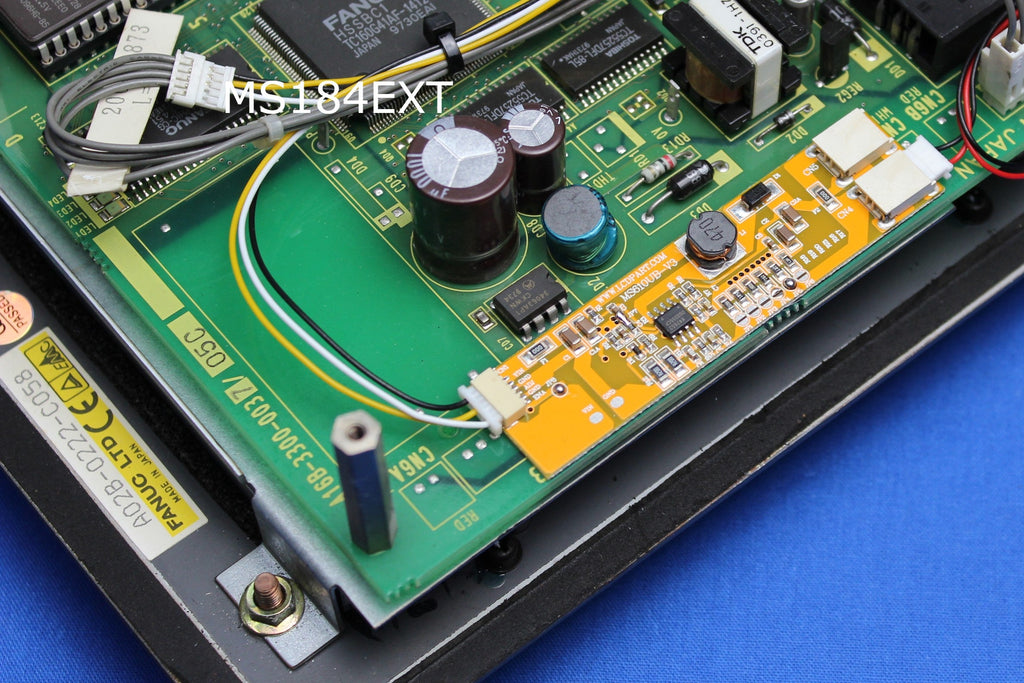

Connect MS184EXT to existing inverter wire harness
A02B-0222-C132-LCD has the same interface connector, dimension and screw hole as the old A02B-0222-C132/TAR.
A02B-0222-C132-LCD included the following items:

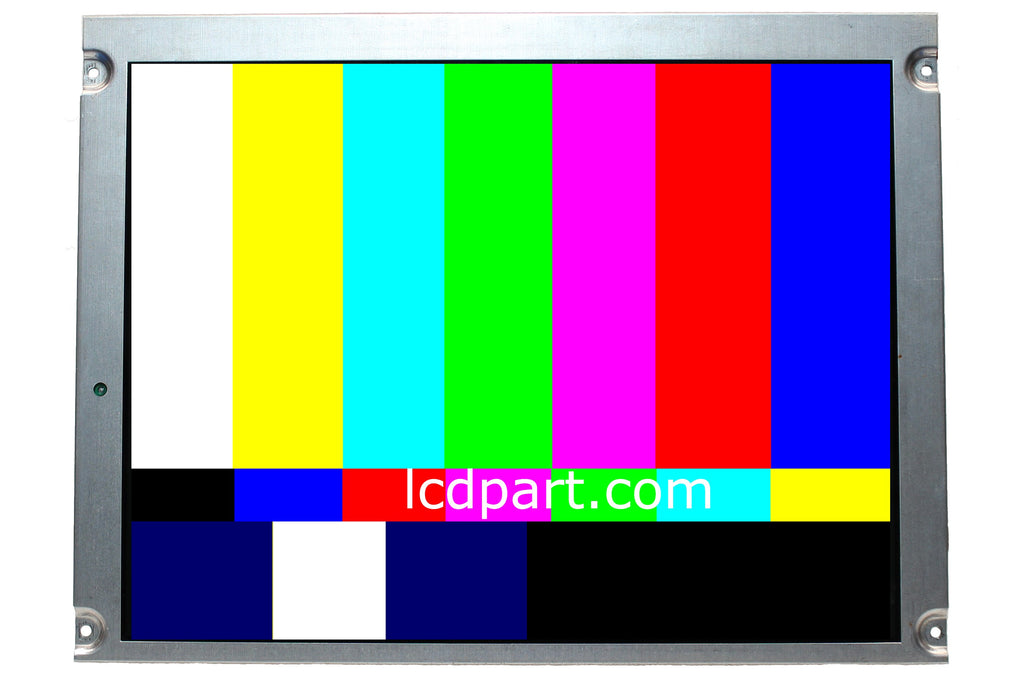

1) New 8.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)

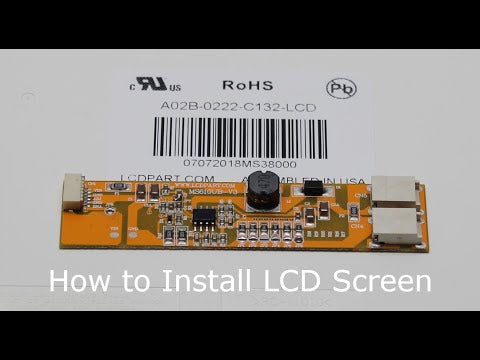

1) MS610UB LED driver
1) MS184EXT wire adapter
