A02B-0238-B616-LCD is a direct replacement for A02B-0238-B616 (Fanuc Series 18i-MA). A02B-0238-B616-LCD has a much better image quality and is much brighter than old A02B-0238-B616. Wider viewing angle and faster response time then old A02B-0238-B616. A02B-0238-B616-LCD has upgraded our Sunlight Readable LED Kit and A02B-0238-B616-LCD will last 10X longer than CCFL lamps.
A wire connector is included. No technical skills required! Soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes:
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on A02B-0238-B616
Remove old A02B-0238-B616 LCD screen
Mount A02B-0238-B616-LCD back to the same location
Connect Screen wire harness to A02B-0238-B616-LCD
Connect Red wire to +12V or 24V DC and Black wire to Ground (Negative)
A02B-0238-B616-LCD has the same interface connector, dimension and screw hole as the old A02B-0238-B616.
A02B-0238-B616-LCD included the following items:

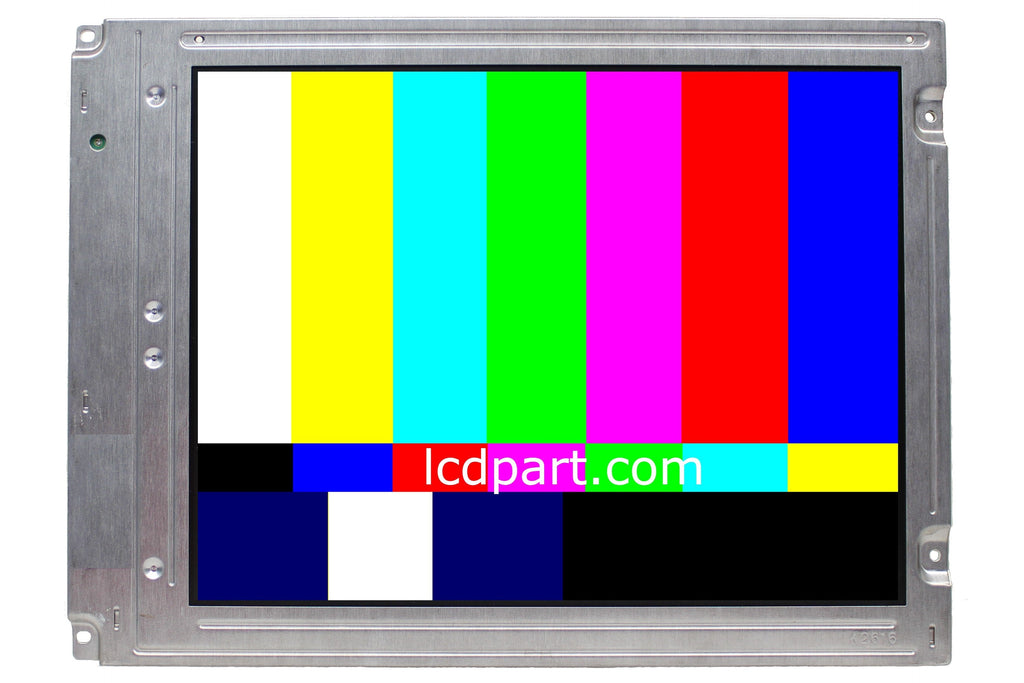

1) 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)

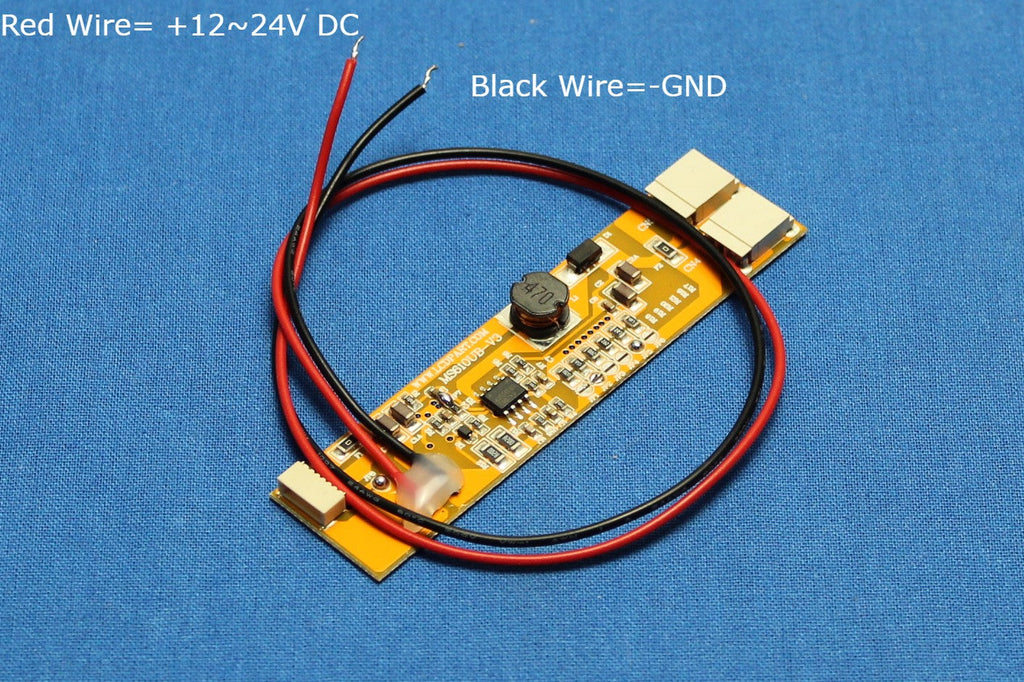

1) MS610UB LED driver
1) A wire connector
