A02B-0281-C072-LCD is a direct replacement for Fanuc A02B-0281-C072. A02B-0281-C072-LCD has a much better image quality and is much brighter than old A02B-0281-C072. Wider viewing angle and faster response time then old A02B-0281-C072. A02B-0281-C072-LCD has upgraded our Sunlight Readable LED Kit and A02B-0281-C072-LCD will last 10X longer than CCFL lamps.
No technical skills required! Soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on A02B-0281-C072
Remove old A02B-0281-C072

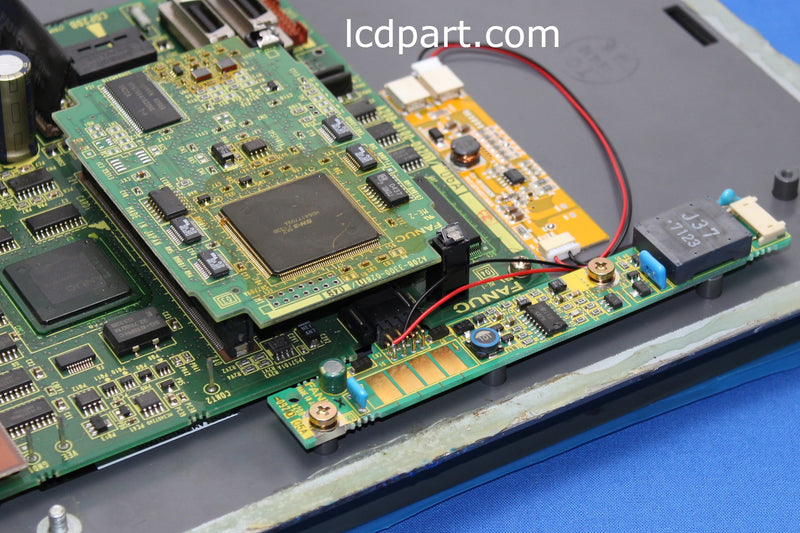

Mount A02B-0281-C072-LCD back to the same location
Connect Screen wire harness to A02B-0281-C072-LCD

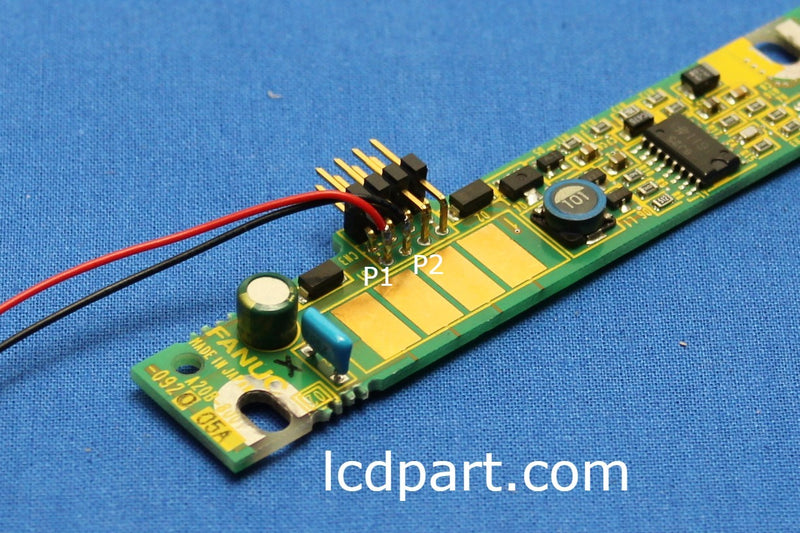

Solder Red wire to Pin 1 as shown on photo (Or can be connected directly to power supply Input positive terminal).
Solder Black wire Pin 2 as shown on photo(Or can be connected directly to power supply Input negative terminal).
A02B-0281-C072-LCD has the same interface connector, dimension and screw hole as the old A02B-0281-C072.
A02B-0281-C072-LCD included the following items:

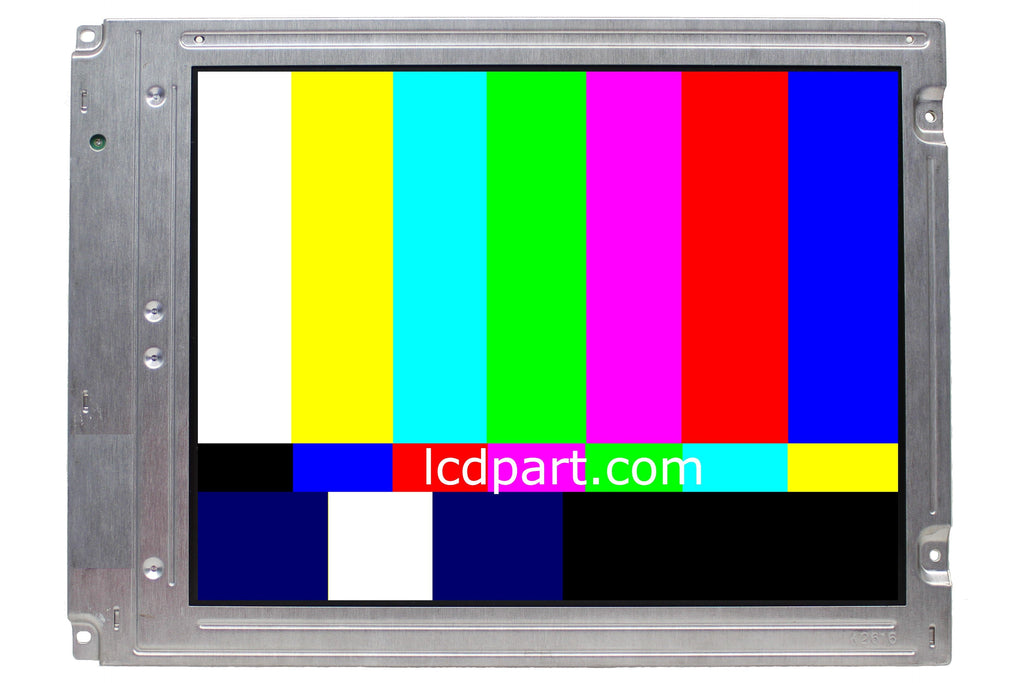

1) 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A wire connector connector
