A02B-0285-B502-LCD is a direct replacement for Fanuc A02B-0285-B502. A02B-0285-B502-LCD has a much better image quality and is much brighter than old A02B-0285-B502. Wider viewing angle and faster response time then old A02B-0285-B502. A02B-0285-B502-LCD has upgraded our Sunlight Readable LED Kit and A02B-0285-B502-LCD will last 10X longer than CCFL lamps.
MS685EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on A02B-0285-B502
Remove old A02B-0285-B502
Mount A02B-0285-B502-LCD back to the same location
Connect Screen wire harness to A02B-0285-B502-LCD
Connect MS685EXT to main board
A02B-0285-B502-LCD has the same interface connector, dimension and screw hole as the old A02B-0285-B502.
A02B-0285-B502-LCD included the following items:

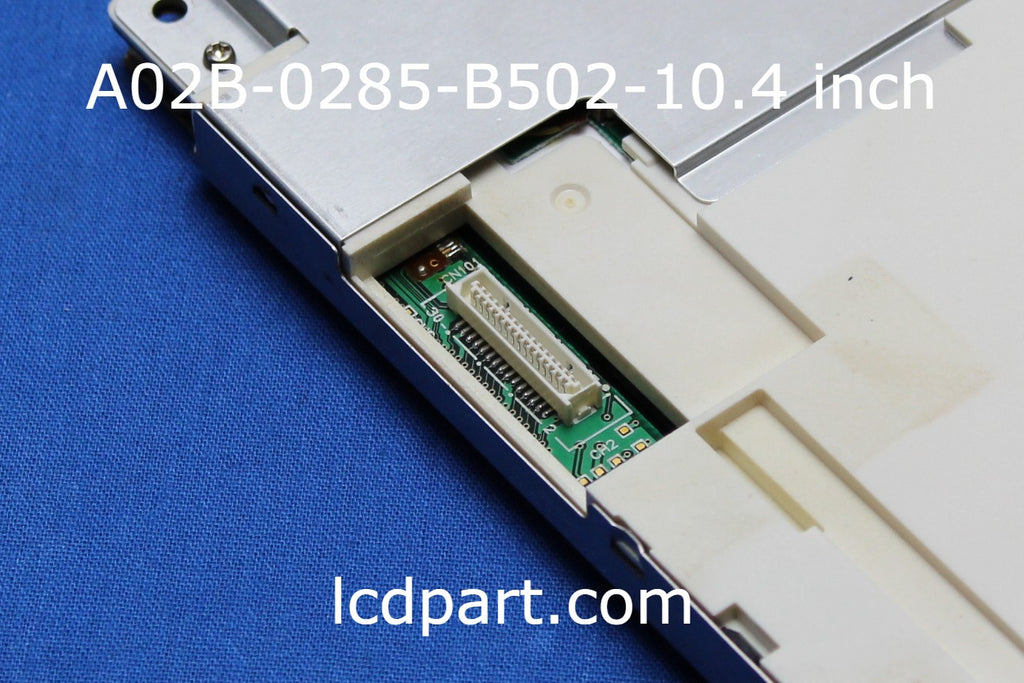

1) 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
10 MS610UB LED driver
1) MS685EXT wire adapter
