A02B-0303-D500-LCD is a direct replacement for Fanuc A02B-0303-D500. A02B-0303-D500-LCD has a much better image quality and is much brighter than old A02B-0303-D500. Wider viewing angle and faster response time then old A02B-0303-D500. A02B-0303-D500-LCD has upgraded our Sunlight Readable LED Kit and A02B-0303-D500-LCD will last 10X longer than CCFL lamps.
It is easy to Install! Anyone can do it! Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire! 1 year warranty!
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on A02B-0303-D500
Remove old A02B-0303-D500
Mount A02B-0303-D500-LCD back to the same location*
Connect Screen wire harness to A02B-0303-D500-LCD
Connect Ground (GND) to Black wire
A02B-0303-D500-LCD has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
A02B-0303-D500-LCD included the following items:

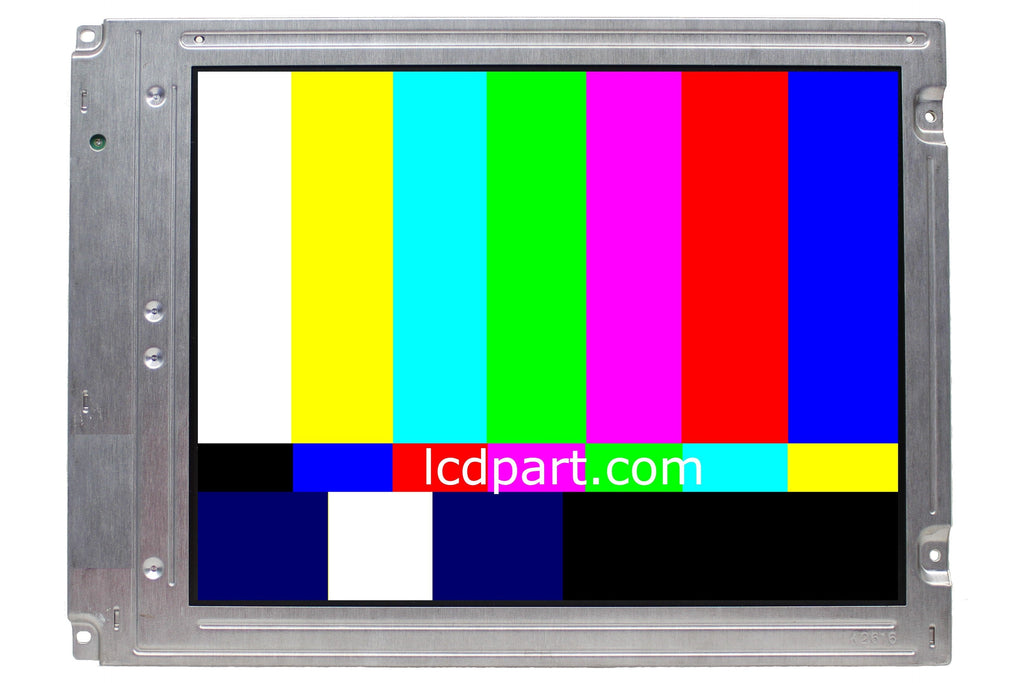

New 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
MS610UB LED driver
