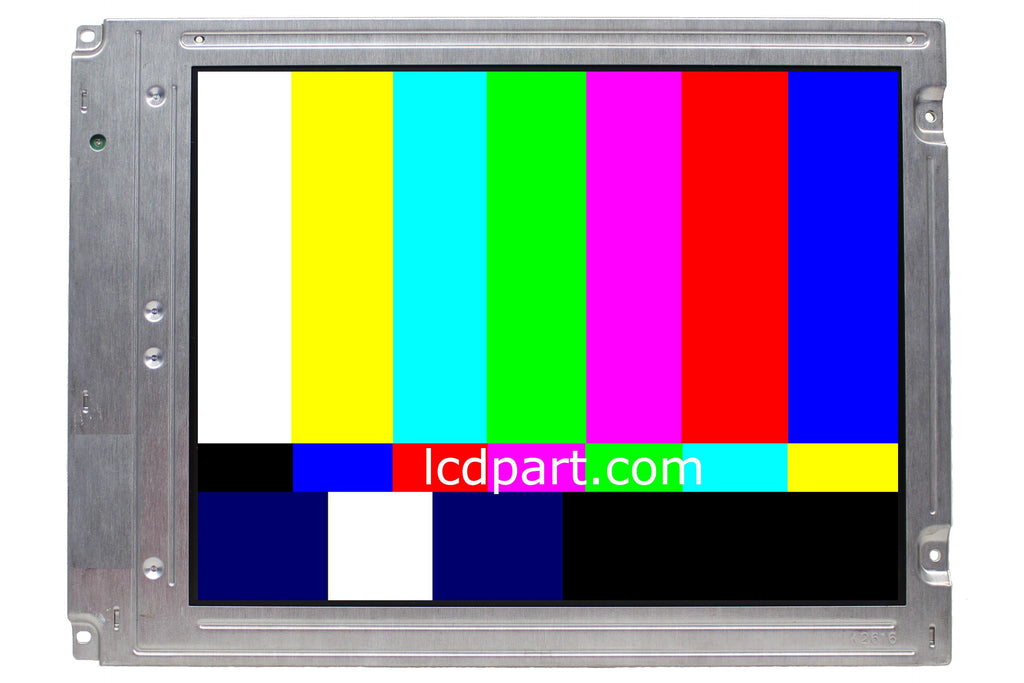

A02B-0319-B502-LCD is a direct replacement for FANUC A02B-0319-B502. A02B-0319-B502-LCD has a much better image quality and is much brighter than old A02B-0319-B502. Wider viewing angle and faster response time then old A02B-0319-B502. It has upgraded our A02B-0319-B502-LEDKIT and A02B-0319-B502-LCD will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty! We ship worldwide.
Installation takes about 15 minutes:
Disconnect CCFL lamp wire harness from main board.
Disconnect Screen wire harness on A02B-0319-B502
Remove old A02B-0319-B502
Mount A02B-0319-B502-LCD back to the same location*
Connect Screen wire harness to A02B-0319-B502-LCD
Connect +12V or 24V DC to Red wire
Connect Ground (GND) to Black wire
A02B-0319-B502-LCD has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
A02B-0319-B502-LCD included the following items:
A LCD screen ( it has upgraded to Sunlight Readable LED kit)
MS610UB LED driver
A wire connector with Red and Black wires
