A08B-0084-D002-LCD is a direct replacement for Fanuc A08B-0084-D002. A08B-0084-D002-LCD has a much better image quality and is much brighter than old A08B-0084-D002. Wider viewing angle and faster response time then old A08B-0084-D002. A08B-0084-D002-LCD has upgraded our Sunlight Readable LED Kit and A08B-0084-D002-LCD will last 10X longer than CCFL lamps.
No technical skills required! Soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on A08B-0084-D002
Remove old A08B-0084-D002

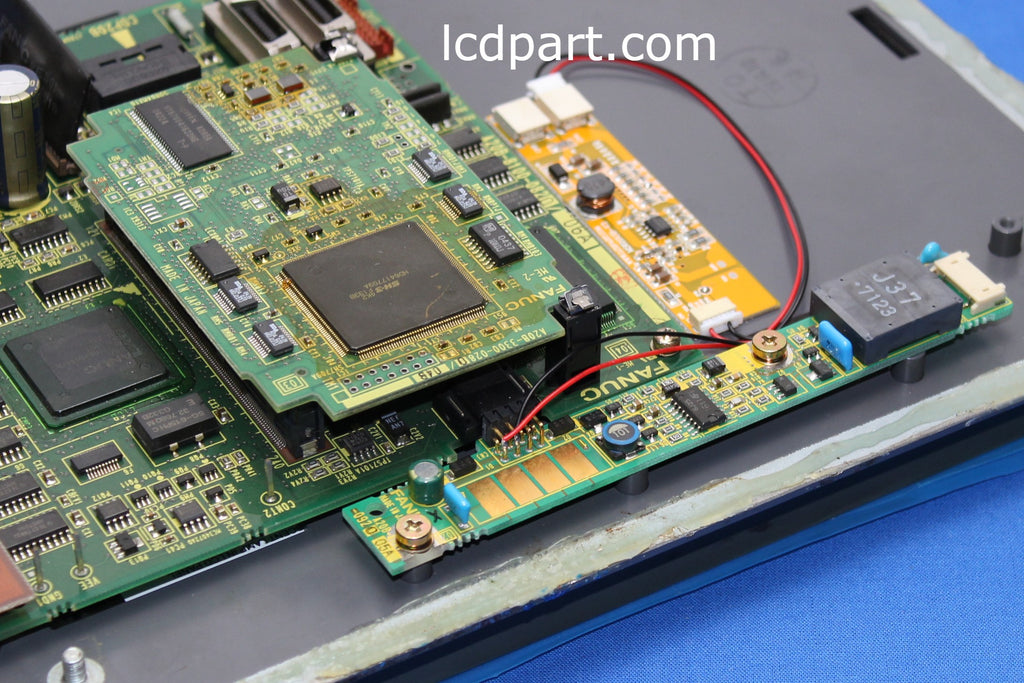

Mount A08B-0084-D002-LCD back to the same location
Connect Screen wire harness to A08B-0084-D002-LCD

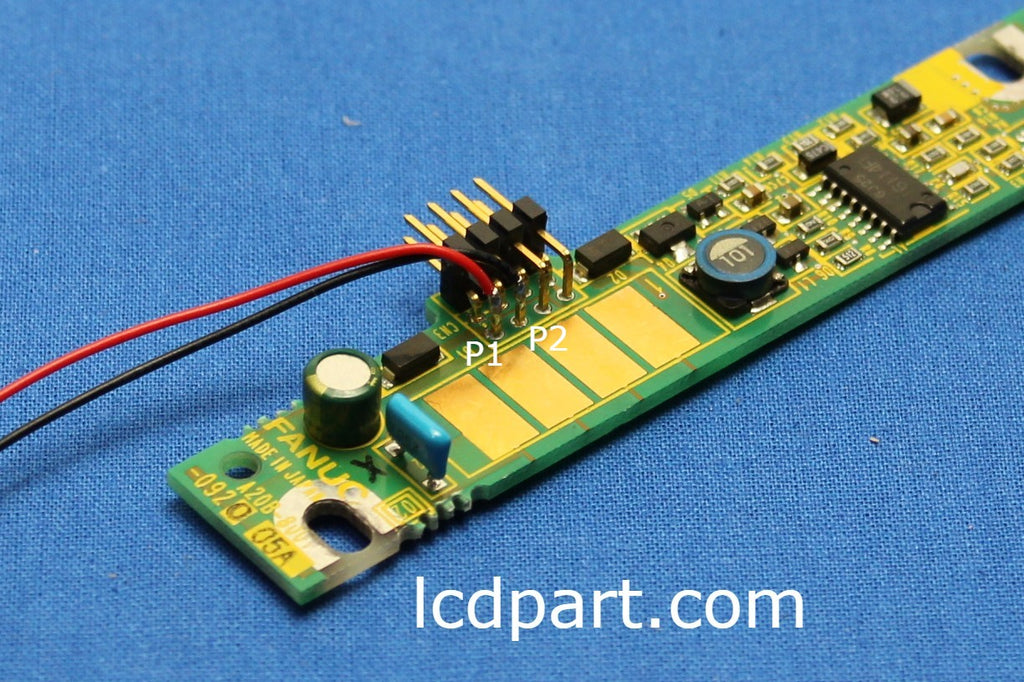

Solder Red wire to Pin 1 as shown on photo (Or can be connected directly to power supply Input positive terminal).
Solder Black wire Pin 2 as shown on photo(Or can be connected directly to power supply Input negative terminal).
A08B-0084-D002-LCD has the same interface connector, dimension and screw hole as the old A08B-0084-D002.
A08B-0084-D002-LCD included the following items:

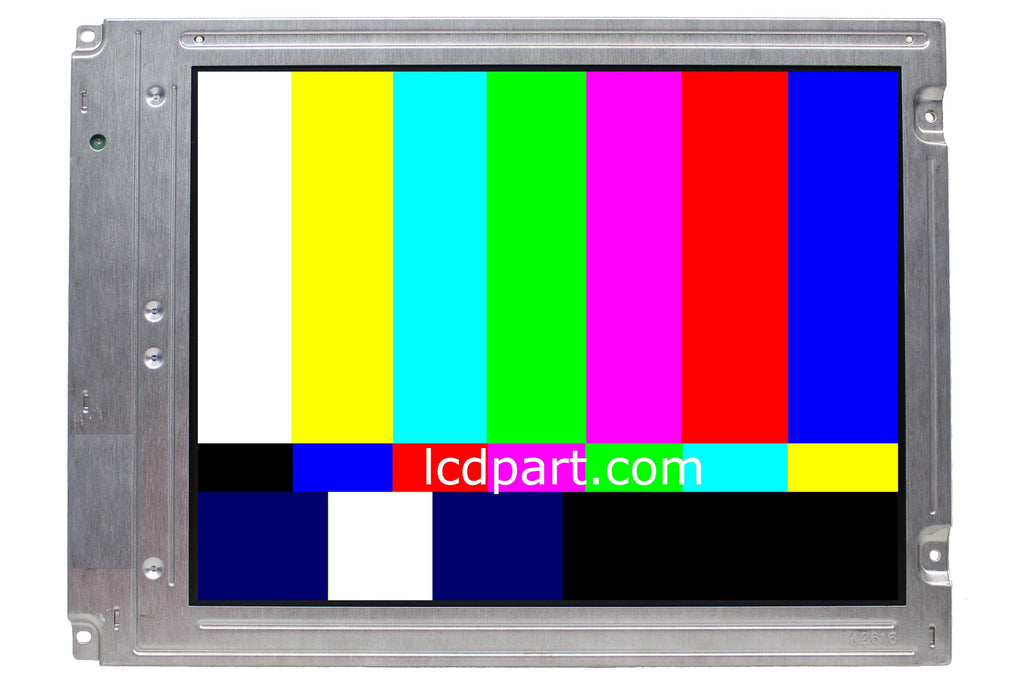

1) 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
