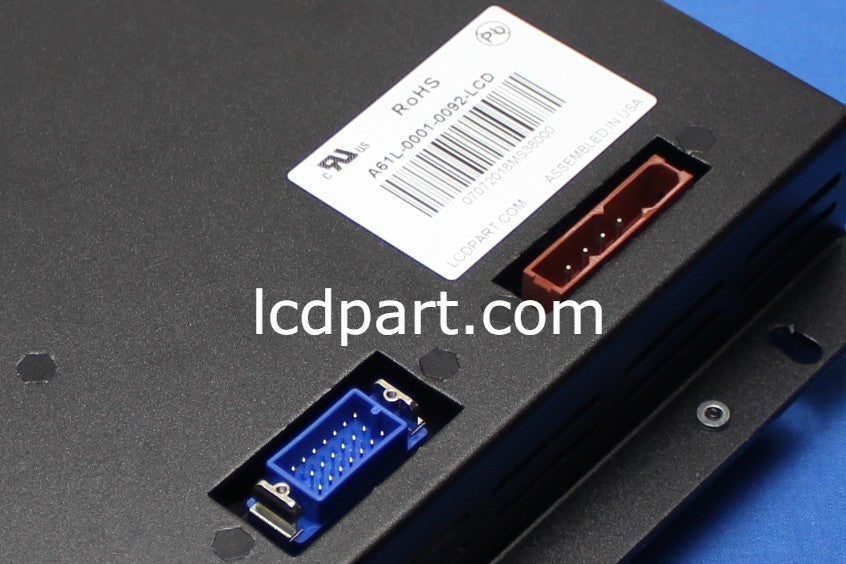

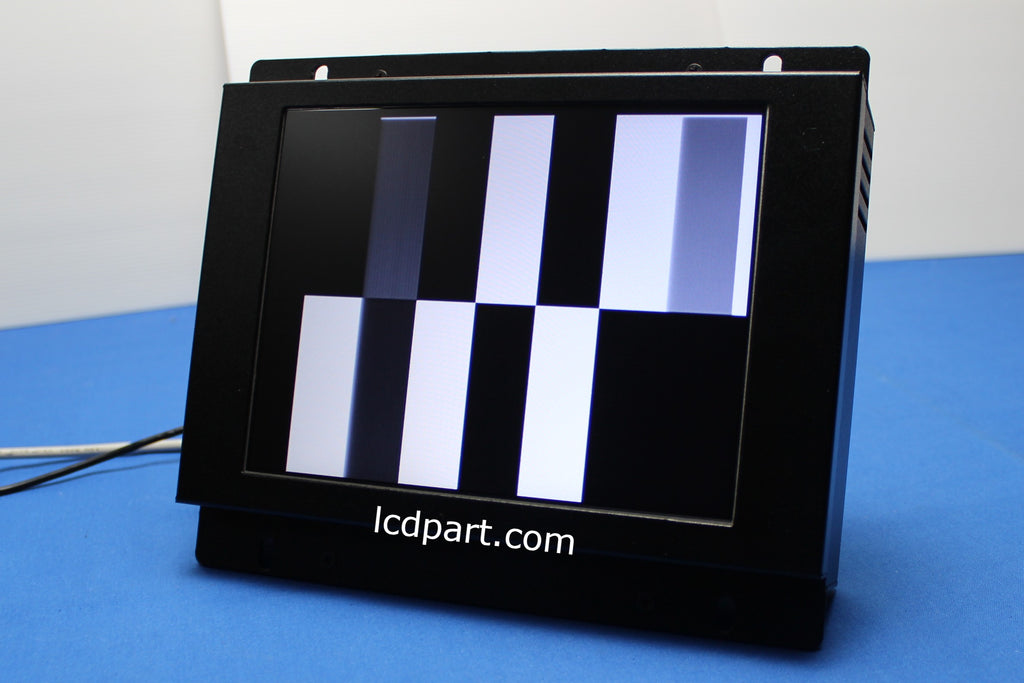

A61L-0001-0092 Retrofit LCD Monitor. P/N: A61L-0001-0092-LCD



A61L-0001-0092-LCD retrofit LCD monitor is for Fanuc A61L-0001-0092 CRT monitor. It has the same screw hole position that you can mount directly on the original CNC metal frame that used to mount CRT Monitor. A61L-0001-0092-LCD has been upgraded to our sunlight readable LED kit. Easy to install, No technical skill required! No soldering required! Anyone can do it! A61L-0001-0092-LCD comes with a 1 year warranty.
Installation takes about 15 minutes:
Disconnect video signal connector and power supply connector on CRT assembly
Remove old A61L-0001-0092 CRT and chassis.
Mount A61L-0001-0092-LCD back to the same metal frame.
Connect old video signal connector to our wire adapter
Connect existing power supply wire to our wire adapter
A61L-0001-0092-LCD is also compatible with the following makes and models
Manufacturer Original Model CRT Size CNC Equipment
Fanuc  A02B-0060-C031 9" (M) CRT  Fanuc A02B-0060-C031
Fanuc  A02B-0063-C001 9" (M) CRT  Fanuc A02B-0063-C001
Fanuc A02B-0073-C001 9" (M) CRT Fanuc System 10M
Fanuc A02B-0094-C021 9" (M) CRT Fanuc Series 15-M
Fanuc A02B-0094-C071 9" (M) CRT
Mitsubishi MDT947B-1A 9" (M) CRT
Matsushita TR-9DK1  9" CRT (GM)  Fanuc 6, 6L and 6M
Matsushita TR-9DK1B  9" CRT (GM)  Fanuc 6B, 6T, 6MB, 6TB, 6mBll and 6tBll Series
