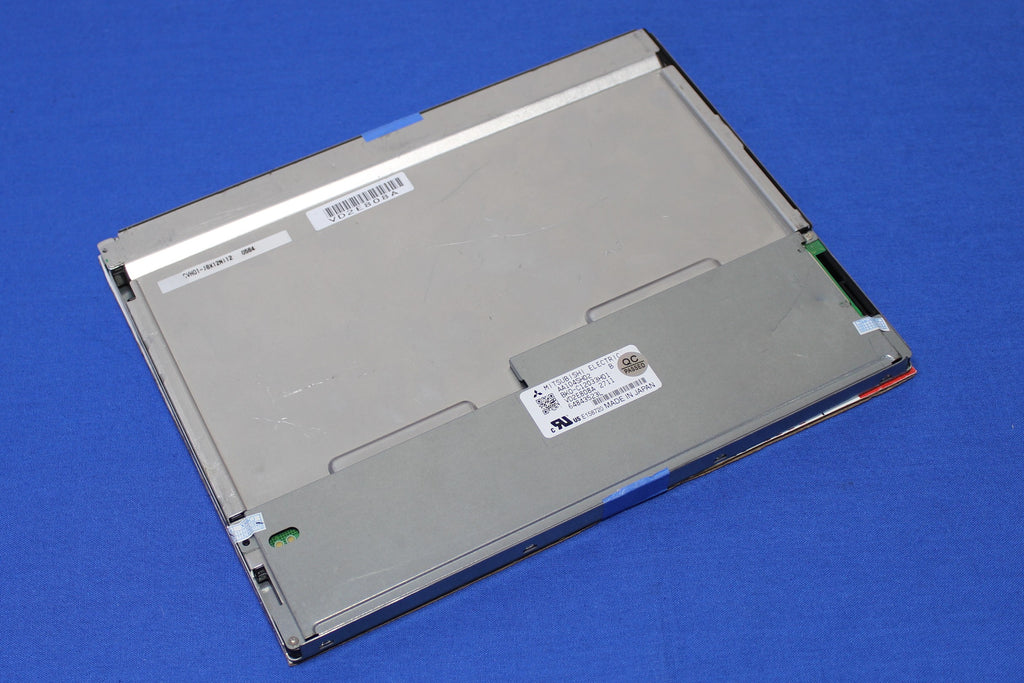

AA104SH02 10.4 inch Mitsubishi LCD screen



Refurbished Mitsubishi AA104SH02 comes with 90 days warranty.

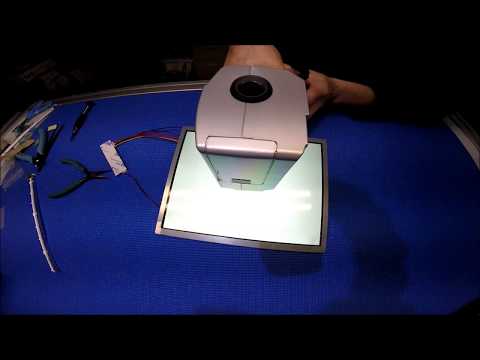

Mitsubishi AA104SH02, one of the most popular LCD screens in control industrial and medical applications. This 10.4 inch Mitsubishi AA104SH02 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 1700 nits (based on its datasheet). By upgrading to our LSR2306511LED212RR LED kit, it can reach 1500 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Mitsubishi AA104SH02 is Listed below
General Specifications:
Item Unit Specifications (C7)
Screen Size [inch] 10.4
Native Resolution 800 X 600
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 230.0(W) X 180.2(H) X 10.5(D)
Bolt Hole Dimension [mm] 54.3 X 54.3
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS
White Luminance [cd/m2] 700
Contrast Ratio 700:1
BackLight Connector SHLP-06V-S-B, 6P 1.0mm (MS574EXT)
Backlight Inverter 27V/70ma/2 strings
Response time, Rising msec 4
Response time, Falling msec 12
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_800X600-6Bit
LED Backlight kit LSR2306511LED212RR
