Description

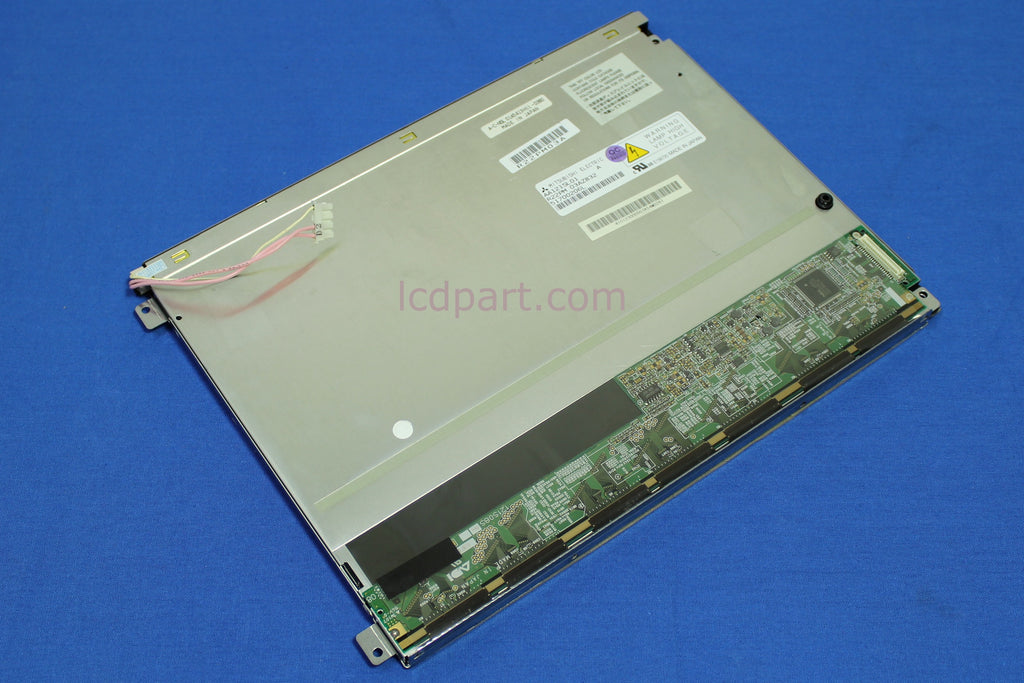

This refurbished Mitsubishi AA121SL01 LCD screen has been replaced with our new CCFL back light lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new conditions! 90 days warranty.
Mitsubishi AA121SL01, one of the most popular LCD panels in an industrial application. This 12.1 inch Mitsubishi AA121SL01 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54255LCD6420X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Mitsubishi AA121SL01 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 12.1 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 246.0(H) X 184.5(V) |
Outline dimension | [mm] | 280.0(W) X 210.0(H) X 12.0(D) |
Bolt Hole Dimension | [mm] | 181.3 X 181.3 |
Input Voltage VDD | [Volt] | 3.3/5.0V |
Screen Wire Harness | TTL-DF9-41 | |
Electrical Interface | TTL | |
White Luminance | [cd/m2] | 300 |
Contrast Ratio | 200 | |
BackLight Connector | BHR-04VS-1X1 | |
Backlight Inverter | Substitute MS495DI | |
Response time, Rising | msec | 20 |
Response time, Falling | msec | 30 |
Viewing Angle - Horizontal | degree | 60 |
Viewing Angle - Vertical | degree | 50 |
Compatible with | AA121SK12 | |
LCD controller kit | TTL-DF9-41_800X600 | |
LED Backlight kit | UB54255LED6420X1+MS610UB |
