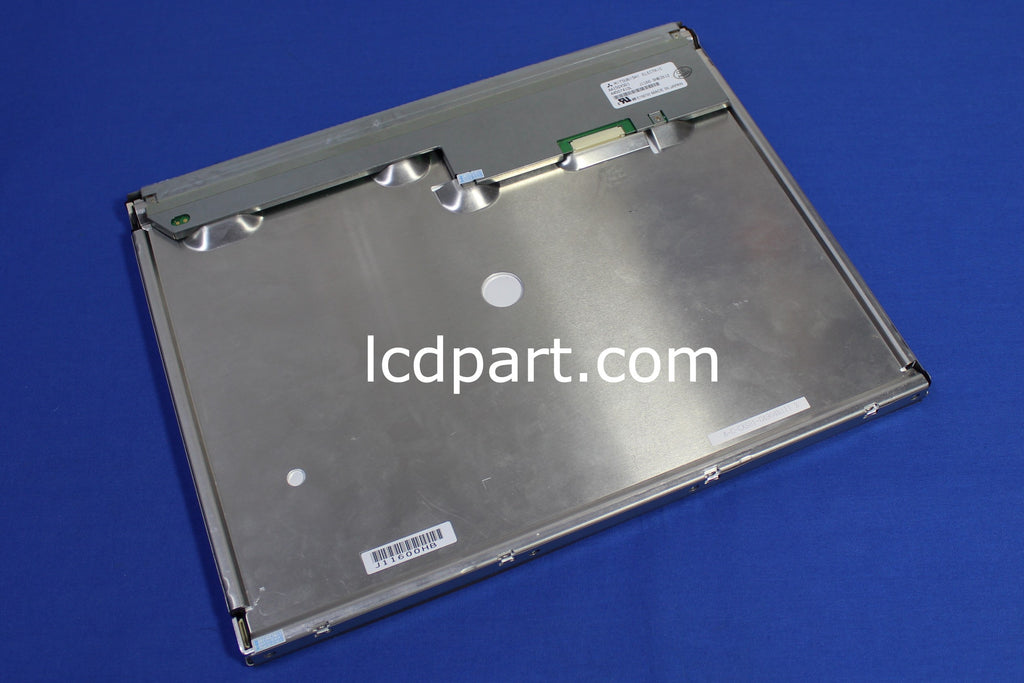

AA150XS01 15 inch Mitsubishi LCD screen


Price:
$219.99

Description

This refurbished Mitsubishi AA150XS01 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
Mitsubishi AA150XS01, one of the most popular LCD screens in control industrial and medical applications. This 15 inch Mitsubishi AA150XS01 is originally equipped with its manufacturer's LED backlight strip, which has typically 350 nits (based on its datasheet). By upgrading to our SB44318X11R5 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Mitsubishi AA150XS01 is Listed below
General Specifications:
Item Unit Specifications (Box 5)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.0(V)
Outline dimension [mm] 326.0(W) X 255.0(H) X 16.6(D)
Bolt Hole Dimension [mm] 188 X 188
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit), P19: 6 Bit=O/NC, 8 Bit=H(3.3V)
White Luminance [cd/m2] 350
Contrast Ratio 1000:1
BackLight Connector SHLP-10V-S-B, 1.0mm, 10 pin
LED Backlight 24V/120ma/4 Strings
LED Strip Dimension 320mm X 7.70mm X 3.5mm
Response time, Rising msec 12
Response time, Falling msec 12
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 85
LCD controller kit DF14-20P-1LVDS_1024X768-6Bit
LED Backlight kit SB44318X11R5
