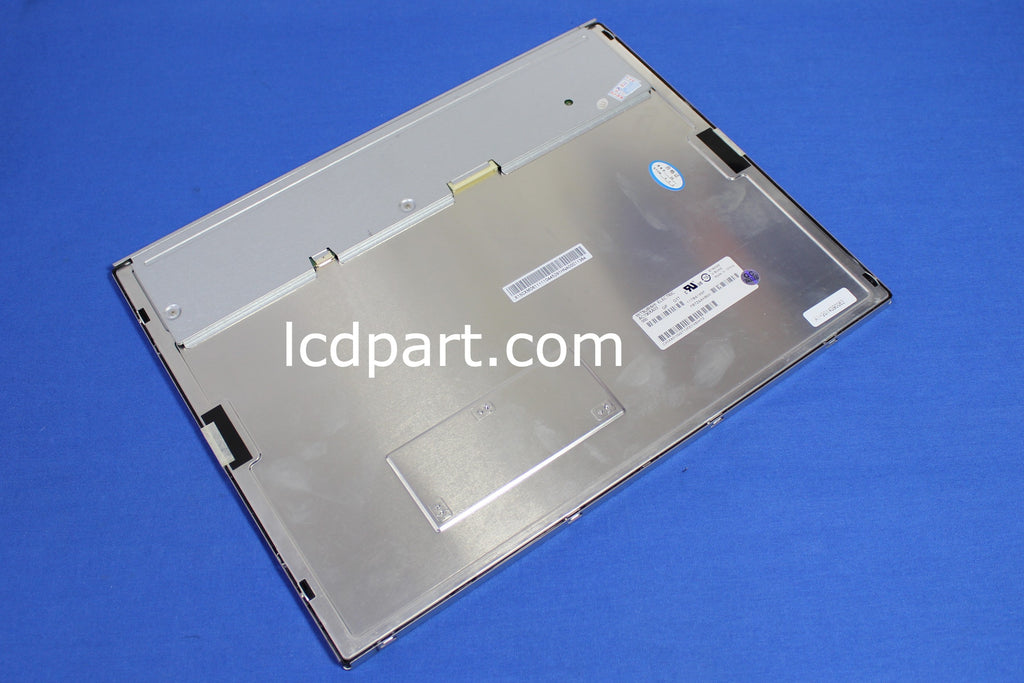

AC150XA03 15 inch Mitsubishi LCD screen


Price:
$239.99

Description

Refurbished (like new condition) Mitsubishi AC150XA03, 90 days warranty.
Mitsubishi AC150XA03, one of the most popular LCD screens in control industrial and medical applications. This 15 inch Mitsubishi AC150XA03 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44318LED32651R5 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Mitsubishi AC150XA03 is Listed below
General Specifications:
Item Unit Specifications (BOX6)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.1(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit/8-bit)
White Luminance [cd/m2] 450
Contrast Ratio 700:1
BackLight Connector FI-S6S, 1.25mm 6P(MS606EXT)
Backlight Inverter P1/P2=12V, P3/P4=GND, P5=ENA, P6=PWM
Response time, Rising msec 2
Response time, Falling msec 10
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 70
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
LED Backlight kit SB44318LED32651R5
