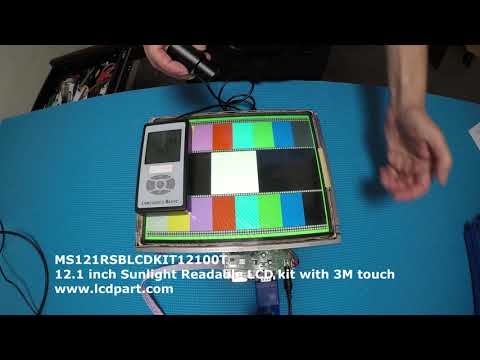

12.1" Sunlight Readable 3M 5 wire touch, 1200 nits, P/N: MS121RSBLCDKIT1200T


Input Source: DVI and VGA
Price:
$499.99

Description

New MS121RSBLCDKIT1200T Sunlight Readable LCD kit is designed to be used on outdoor environment. With our proprietary LED upgrade kit installed, It is so bright that the contents on display visible under strong sunlight (1200 nits). We bundle it with DVI and VGA input board, please click the drop down list to see other type of input. It is easy to install. Anyone can do it!
You also have an option to choose other type of controller board on right side:
MS121RSBLCDKIT1200 kit included the following items:

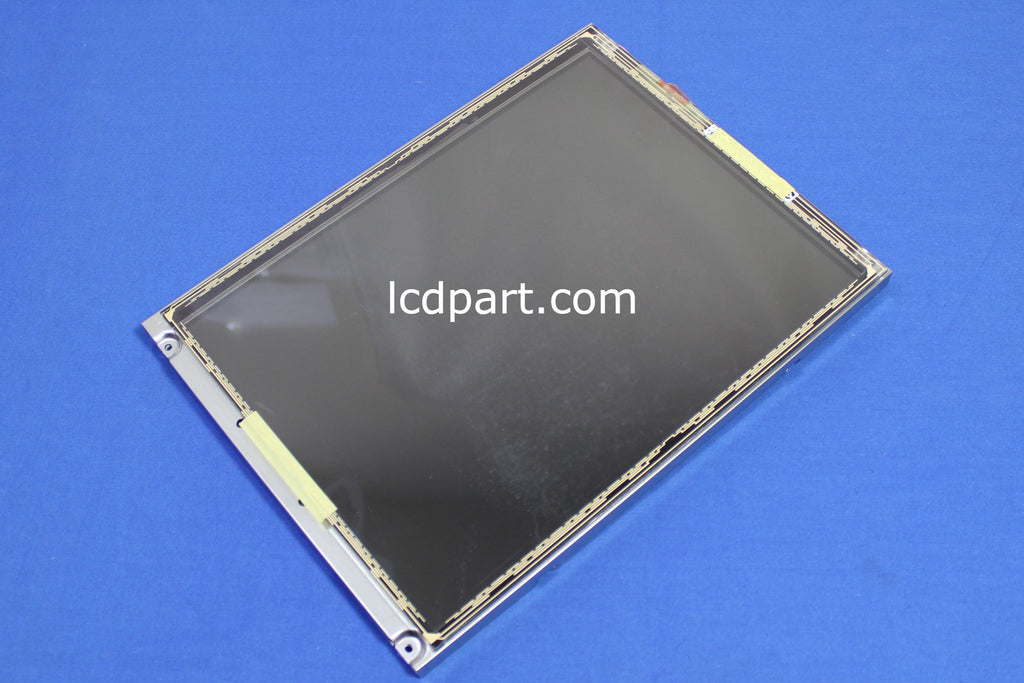

12.1 inch  New LCD, upgraded to Sunlight Readable SB LED Kit (800X600)
New 3M 17-8581-217 (alias P/N 32525-FAB) 5 wire Resistive touch Screen kit

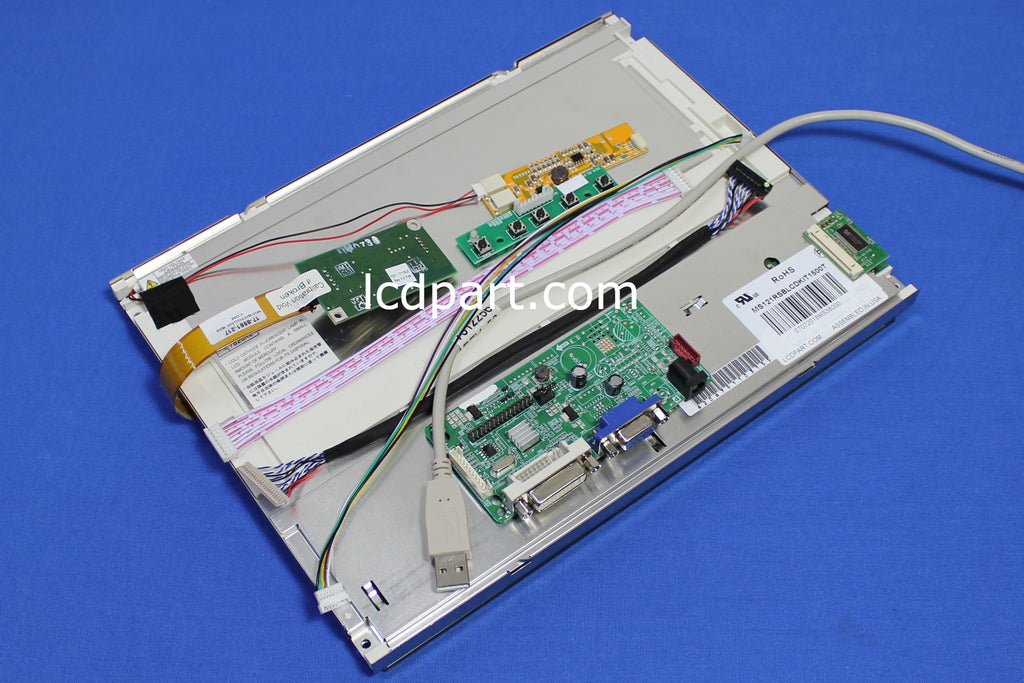

MS460LC LCD Controller (or MS489LC)
MS610UB LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
LCD Controller Specifications:
Input source: DVI and VGA (or HDMI, DVI and VGA)
Accept 12V DC Input
OSD: Chinese, English, French, Italian, German, Korean. Russian, Spanish
Key Functions: On/Off, Menu, Auto, +, -(5 Buttons)
Compact Size:
DVI and VGA(S460LC): 110mm(L) X 55mm(W) X 20mm(H)

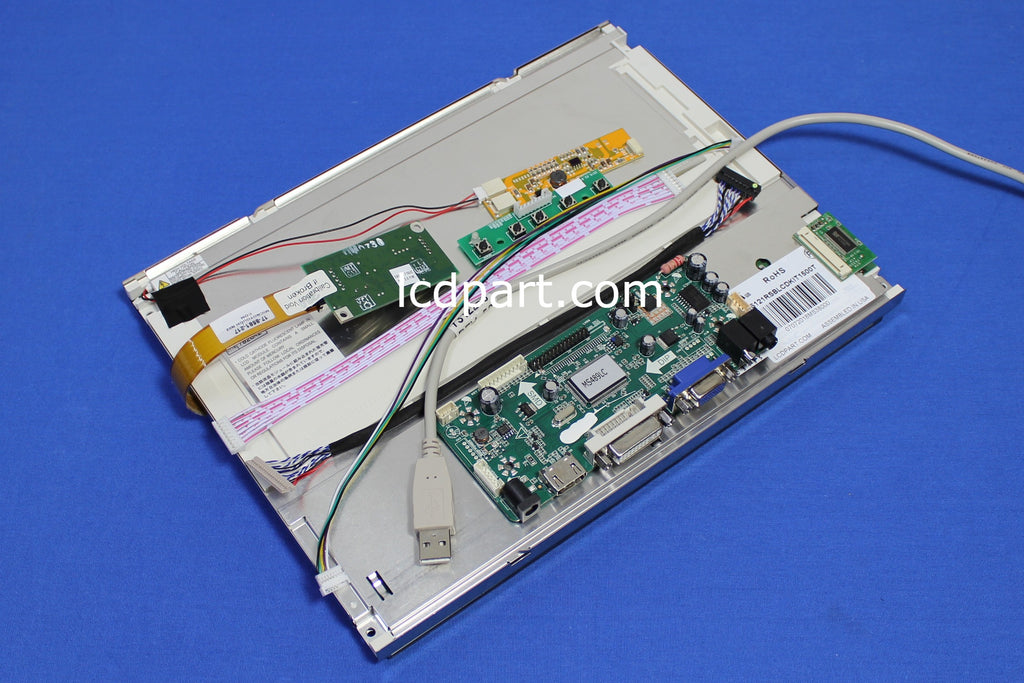

DVI, HDMI and VGA(MS489LC): 58 mm(L) X 140mm(W) X 20mm(H)
Automatically synchronizes to most industry standard modes.
Automatic image scaling and contrast enhancement.
AC-DC Adapter is NOT included.
LCD Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 276.0(W) X 209.0(H) x 11.0(D)
Bolt Hole Dimension [mm] 181.3 X 181.3
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 1200
Contrast Ratio 1500:1
BackLight Connector BHSR-02VS-1X1
Backlight Inverter MS610UB
Response time, Rising msec 6
Response time, Falling msec 19
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
