DMF50260NFU-FW-2-LCD is a direct replacement for OPTREX DMF50260NFU-FW-2. DMF50260NFU-FW-2-LCD has a much better image quality and is much brighter than old DMF50260NFU-FW-2. Wider viewing angle and faster response time then old OPTREX DMF50260NFU-FW-2. It has upgraded our DMF50260NFU-FW-LEDKIT and DMF50260NFU-FW-2-LCD will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty! We ship worldwide.
Installation takes about 15 minutes:
Disconnect CCFL lamp wire harness from inverter board.
Disconnect Screen wire harness on DMF50260NFU-FW-2
Remove old DMF50260NFU-FW-2
Mount DMF50260NFU-FW-2-LCD back to the same location*
Connect Screen wire harness to DMF50260NFU-FW-2-LCD
Connect +12V or 24V DC to Red wire
Connect Ground (GND) to Black wire
DMF50260NFU-FW-2-LCD has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
DMF50260NFU-FW-2-LCD included the following items:

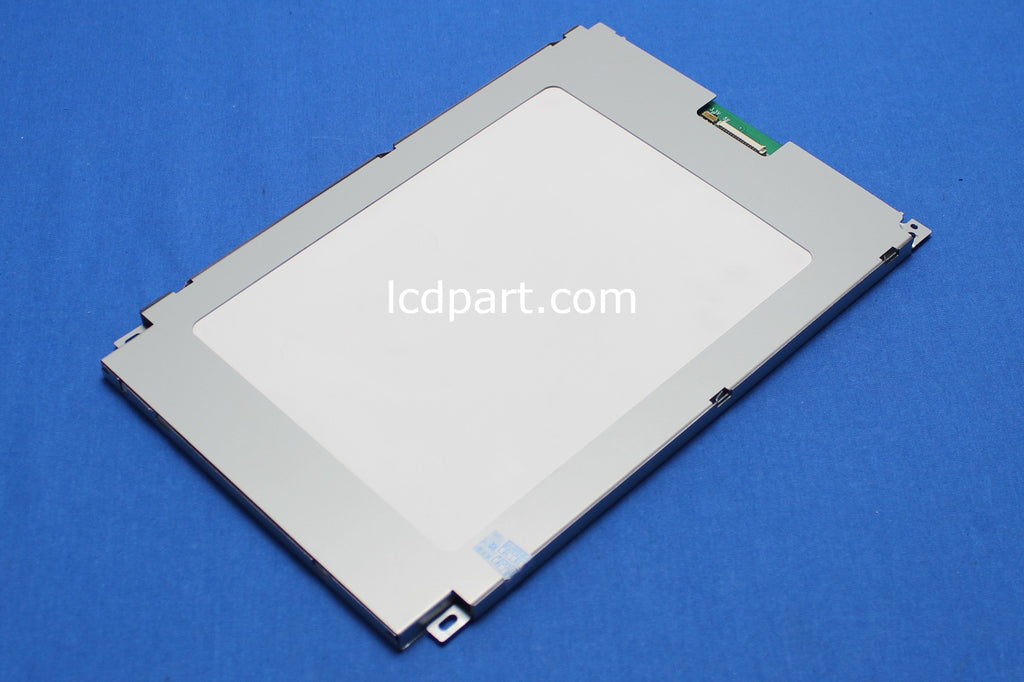

9.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
MS610UB LED driver
6 pin pigtail connector with Red and Black wires
