M150X2-T03


Price:
$299.99

Description

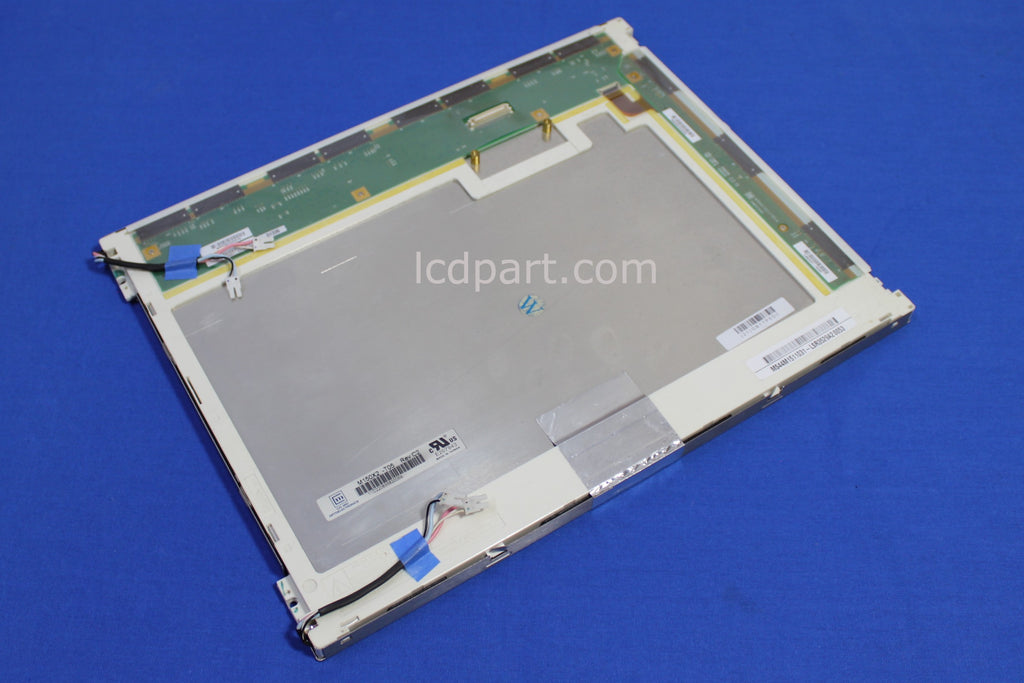

This refurbished CHI MEI M150X02-T03 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new condition ! 90 days warranty
CHI MEI M150X02-T03, one of the most popular LCD panels in an industrial application. This 15 inch CHI MEI M150X02-T03 is originally equipped with quad CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54318LED8020X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for CHI MEI M150X02-T03 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.1(V)
Outline dimension [mm] 331.6(W) X 254.76(H) X 13.0(D)
Bolt Hole Dimension [mm] 200 X 212
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness TTL-3045-MS559TTL
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 250
Contrast Ratio 500:1
BackLight Connector BHR-02VS-1X4
Backlight Inverter Substitute MS30DI
Response time, Rising msec 15
Response time, Falling msec 10
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 85
LCD controller kit TTL-3045+MS559TTL_1024X768-6B
LED Backlight kit UB54318LED8020X2
