Description

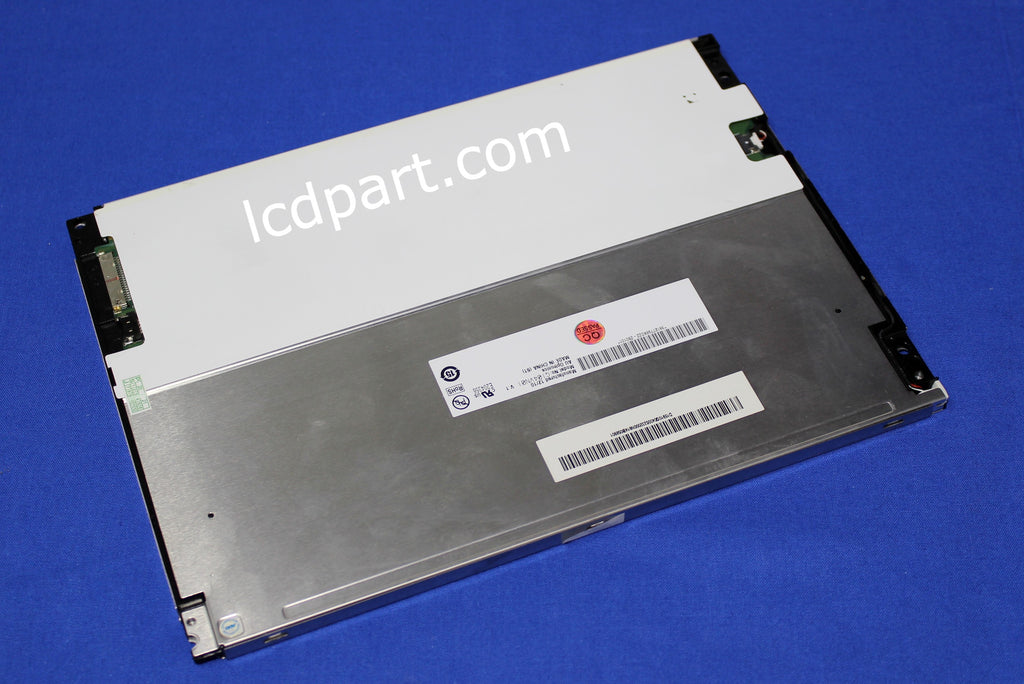

This refurbished AUO G104VN01-V1 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
AUO G104VN01-V1, one of the most popular LCD screens in control industrial and medical applications. This 10.4 inch AUO G104VN01-V1 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44220LED21652R+MS640EXT LED kit, it can reach 1500 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
General Specifications:
| Item | Unit | Specifications (C6) |
| Screen Size | [inch] | 10.4 |
| Native Resolution | 640 X 480 | |
| Active Area | [mm] | 211.2(H) X 158.4(V) |
| Outline dimension | [mm] | 243.0(W) X 176.6(H) X 8.0(D) |
| Bolt Hole Dimension | [mm] | 132.6 X 166.6 |
| Input Voltage VDD | [Volt] | 3.3V |
| Screen Wire Harness | DF19-20P-1LVDS-121W | |
| Electrical Interface | LVDS (6bit/8bit/P20_H) | |
| White Luminance | [cd/m2] | 450 |
| Contrast Ratio | 700:1 | |
| BackLight Connector | H208K-P05N-02B, 1.25mm 5P(MS542EXT) | |
| Backlight Inverter | P1=+12V, P2=GND, P3=END, P4=PWM, P5=N/C | |
| Response time, Rising | msec | 10 |
| Response time, Falling | msec | 20 |
| Viewing Angle - Horizontal | degree | 80 |
| Viewing Angle - Vertical | degree | 80 |
| LCD controller kit | DF19-20P-1LVDS-121W_640x480+MS542EXT | |
| LED Backlight kit | SB44220LED21652R+MS640EXT |
