G104X1-L04


Price:
$399.99

Description

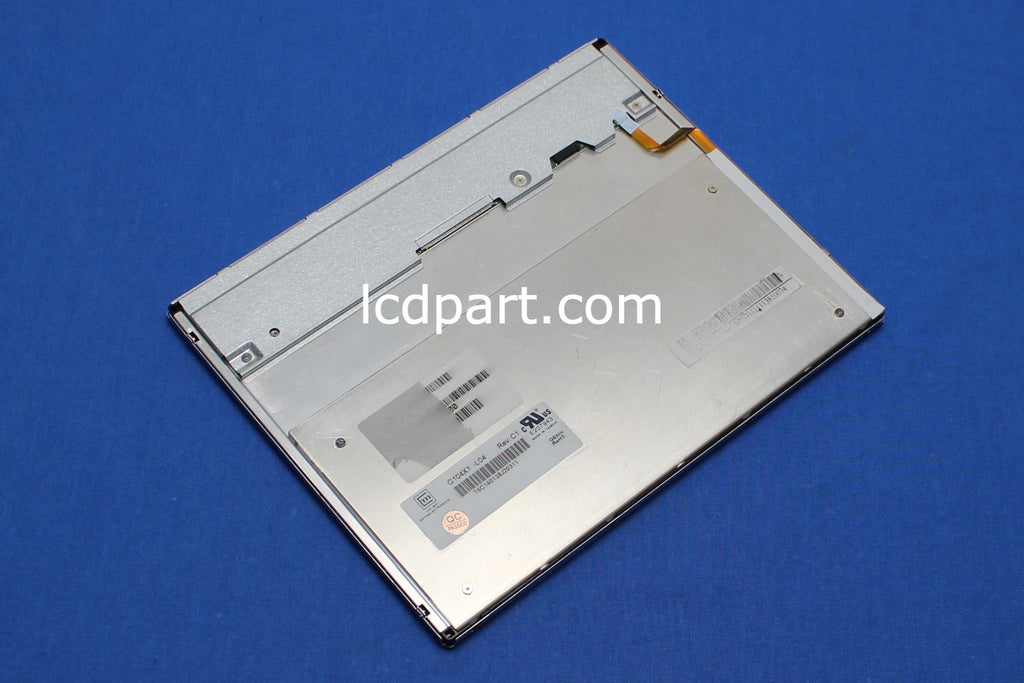

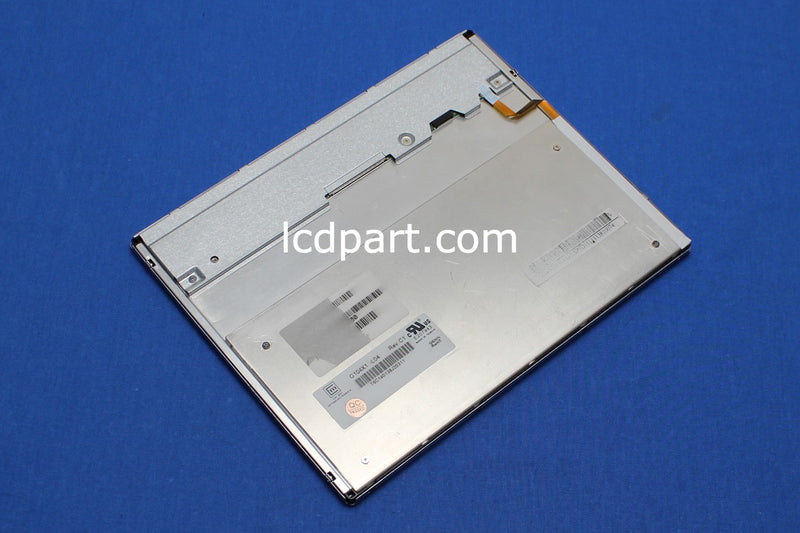

This refurbished Chi Mei G104X1-L04 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
Chi Mei G104X1-L04, one of the most popular LCD screens in an industrial control, medical and others applications. This 10.4 inch Chi Mei G104X1-L04 is originally equipped with its manufacture's LED backlight strip and driver, which has typically 500 nits (based on its datasheet). By upgrading to our SB series LED kit, it can reach 1500 nits or higher (Please watch YouTube) easy to install, no technical skill require, anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 1024 X 768
Active Area [mm] 210.4(H) X 157.8(V)
Outline dimension [mm] 225.5(W) X 176.3(H) x 8.7(D)
Bolt Hole Dimension [mm] 100 X 101.8
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness FIX-30S-1LVDS-B2830
Electrical Interface LVDS (8-bit)
White Luminance [cd/m2] 500
Contrast Ratio 1200:1
Backlight Connector 91209-01011, 1.0mm 10P
Backlight Inverter P1~P4=+12V, P5~P8=GND, P9=ENA, P10=PWM
Response time, Rising msec 14
Response time, Falling msec 11
Viewing Angle - Horizontal degree 88
Viewing Angle - Vertical degree 88
