Description

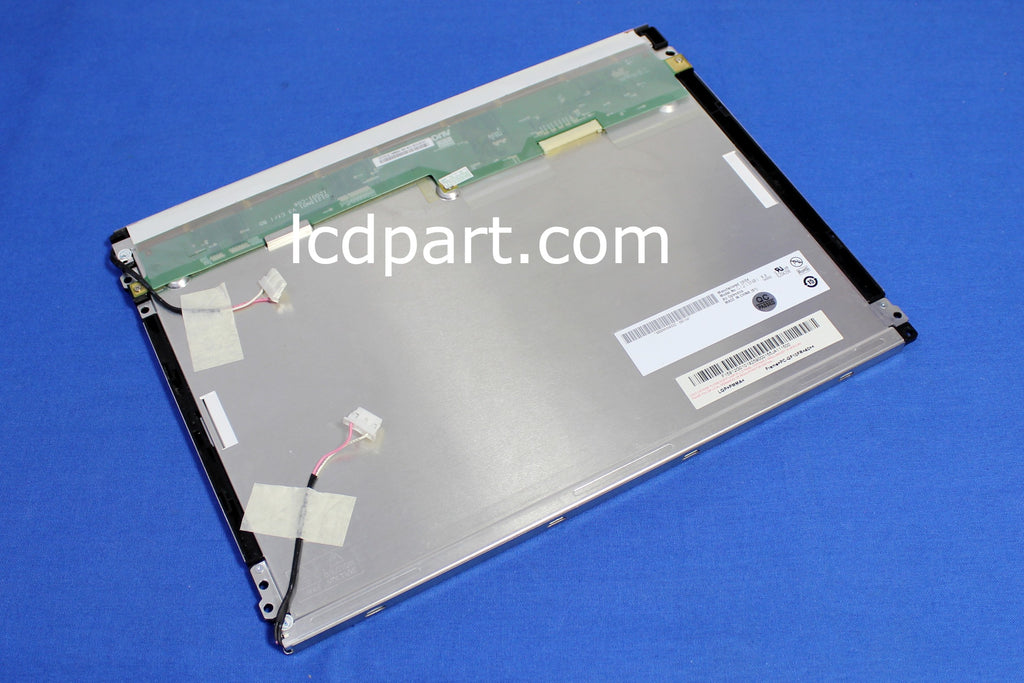

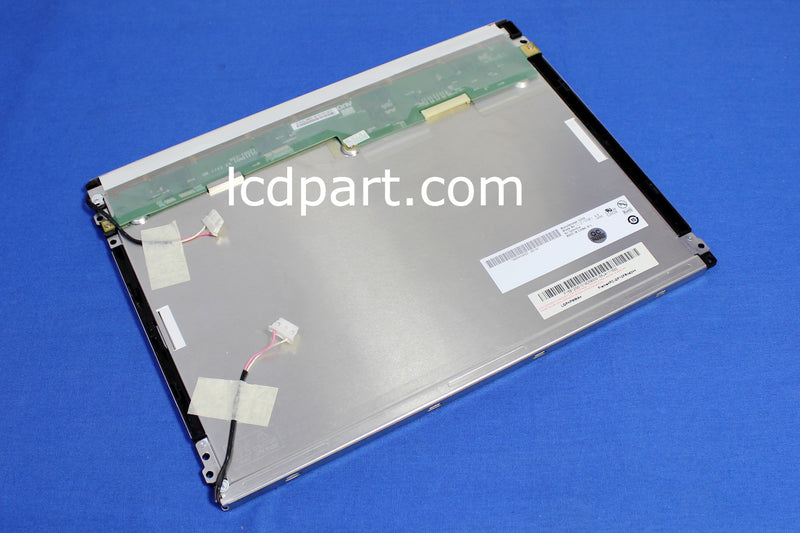

Refurbished (like new condition) AUO G121SN01-V3 LCD screen. 90 days warranty.
AUO G121SN01-V3, one of the most popular LCD panels in an industrial application. This 12.1 inch AUO G121SN01-V3, is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54255LED6420X2+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for AUO G121SN01-V3 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 12.1 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 246.0(H) X 184.5(V) |
Outline dimension | [mm] | 279.0(W) X 209.0(H) X 11.0(D) |
Bolt Hole Dimension | [mm] | 166 (138) X 176 (185.8) |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS | |
Electrical Interface | LVDS (6-bit), P4: 6 Bit=O/NC, 8 Bit=H(3.3V) | |
White Luminance | [cd/m2] | 400 |
Contrast Ratio | 600:1 | |
BackLight Connector | BHR-03VS-1X2 | |
Backlight Inverter | Substitute MS179DI | |
Response time, Rising | msec | 10 |
Response time, Falling | msec | 25 |
Viewing Angle - Horizontal | degree | 70 |
Viewing Angle - Vertical | degree | 60 |
LCD controller kit | DF14-20P-1LVDS_800X600-6Bit | |
LED Backlight kit | UB54255LED6420X2+MS610UB | |
Direct Replacement LCD | MS121RSBDF1420D5 |
