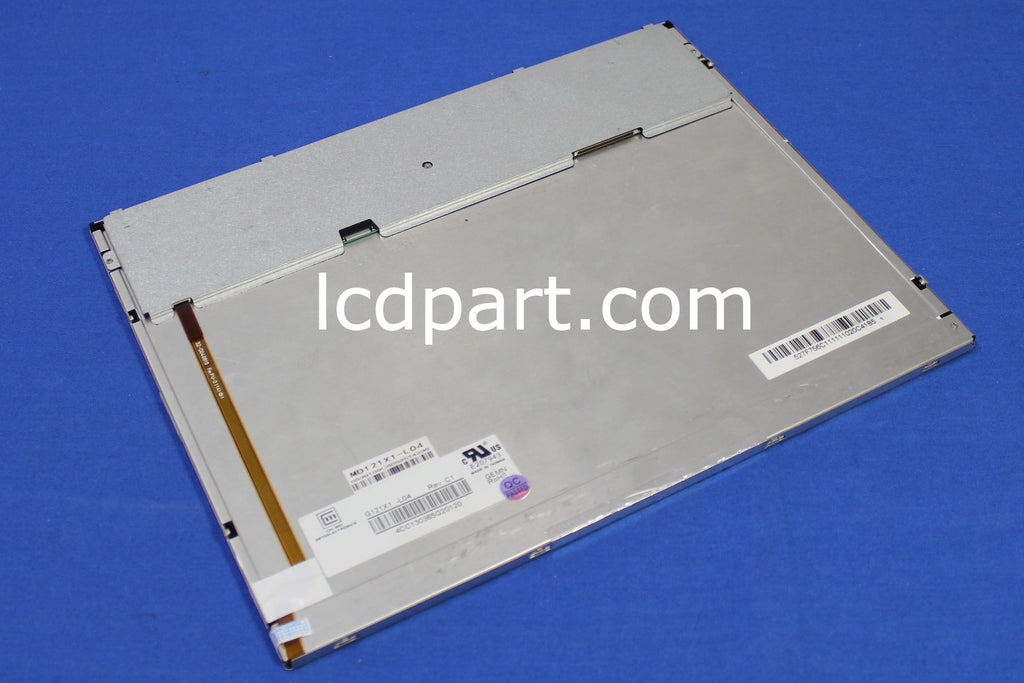

G121X1-L03 CHI MEI 12.1 inch LCD screen


Price:
$229.99

Description

This refurbished CHI MEI G121X1-L03 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 1024 X 768
Active Area [mm] 245.76(H) X 184.32(V)
Outline dimension [mm] 260.5(W) X 204(H) X 7.2(D)
Bolt Hole Dimension [mm] 100 X 140
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS P4, 6BO, 8BH
White Luminance [cd/m2] 500
Contrast Ratio 700:1
BackLight Connector 91208-01001, 10 pin 1.0mm (MS709ETX)
Backlight Inverter P1~P4=+12V, P5~P8=GND, P9=ENA, P10=PWM
Response time, Rising msec 5
Response time, Falling msec 11
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 70
LCD controller kit DF14-20P-1LVDS-R_1024X768-6B
