G121XN01-V0


Price:
$229.99

Description

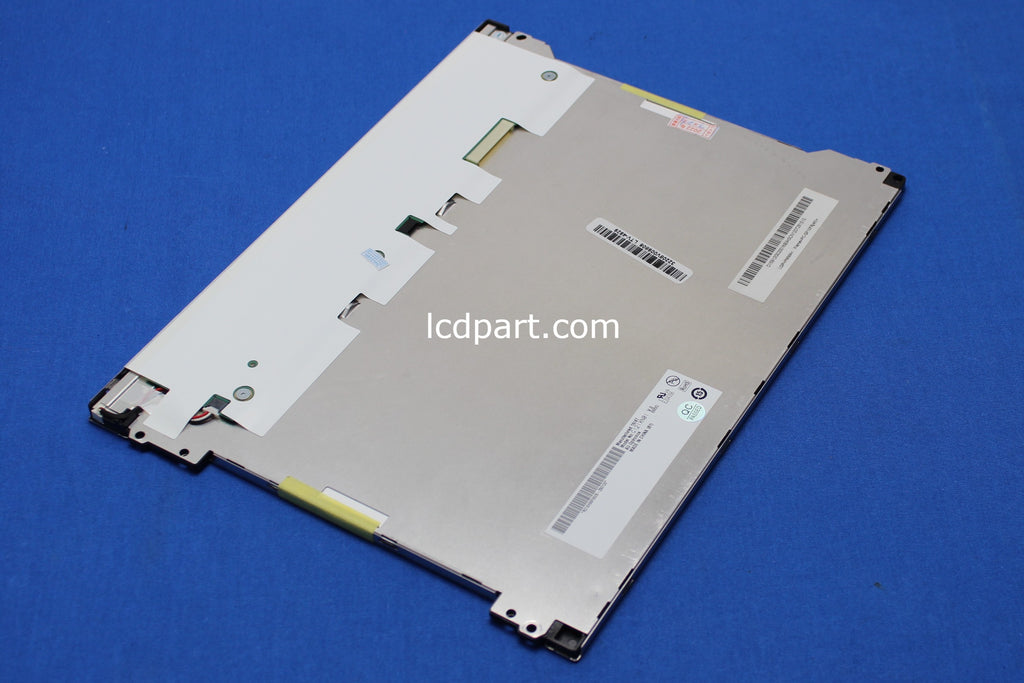

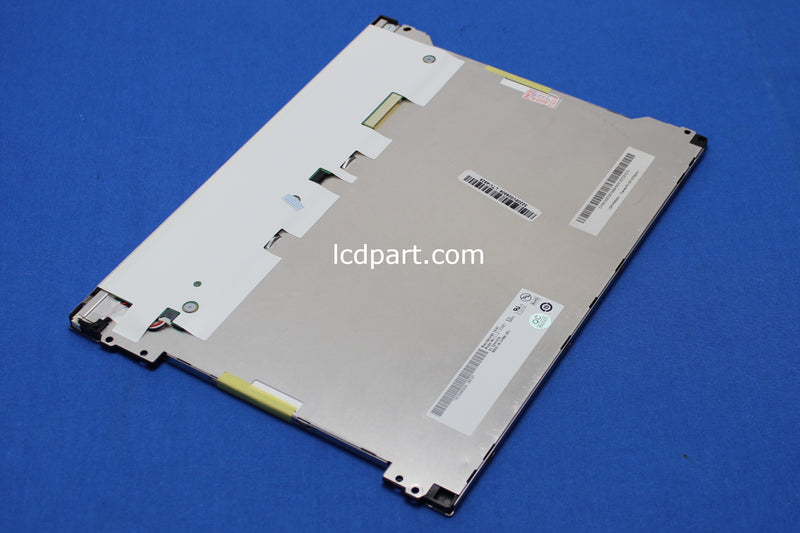

Refurbished 12.1 inch AUO G121XN01-V0 LCD screen. 90 days warranty.

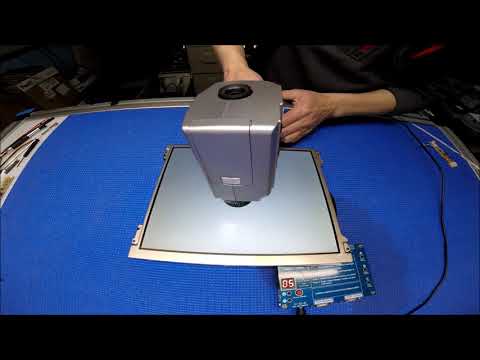

AUO G121XN01-V0, one of the most popular LCD screens in control industrial and medical applications. This 12.1 inch AUO G121XN01-V0 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 500 nits (based on its datasheet). By upgrading to our SB44255X11R7+MS640EXT LED kit, it can reach 1300 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 1024 X 768
Active Area [mm] 245.76(H) X 184.32(V)
Outline dimension [mm] 279.0(W) X 209.0(H) X 9.0(D)
Bolt Hole Dimension [mm] 138/166 X 177/185
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit), P4: 6 Bit=O/NC, 8 Bit=H(3.3V)
White Luminance [cd/m2] 500
Contrast Ratio 700:1
BackLight Connector H208K-P05N-02B, 1.25mm 5P(MS542EXT)
Backlight Inverter P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C
Response time, Rising msec 10
Response time, Falling msec 25
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD Controller kit DF14-20P-1LVDS_800X600+MS542EXT-6BIT
LED Backlight kit SB44255X11R7+MS640EXT
Direct Replacement LCD MS121RSBDF1420D5
