G121XTN01.0


Price:
$229.99

Description

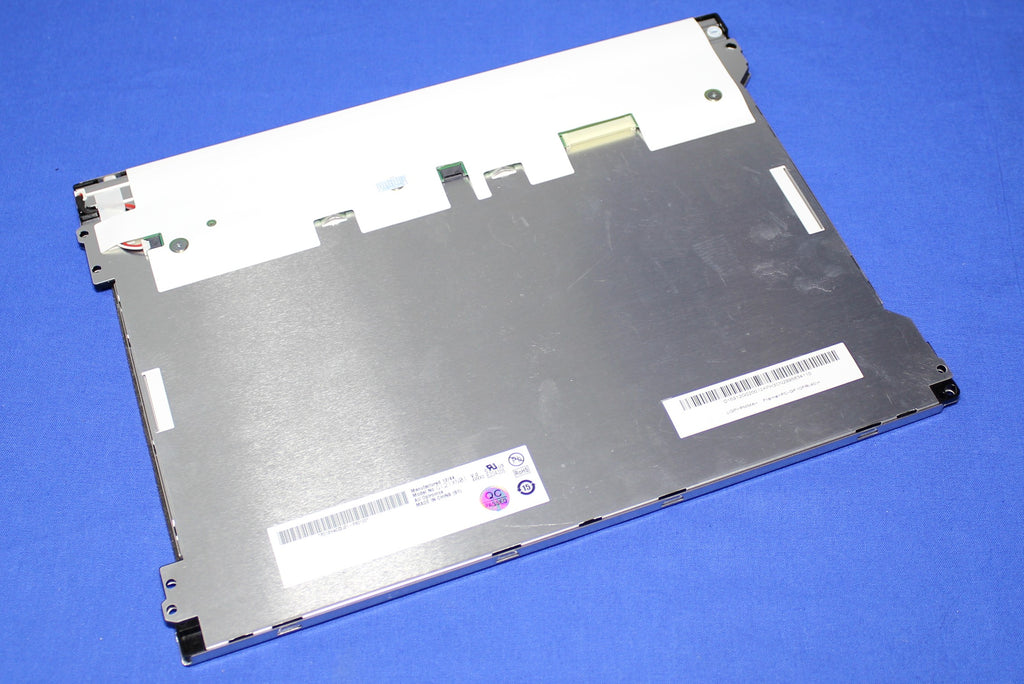

This refurbished AUO G121XTN01.0 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
AUO G121XTN01.0, one of the most popular LCD screens in control of industrial and medical applications. This 12.1 inch AUO G121XTN01.0 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44255X11R7+MS640EXT LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 1024 X 768
Active Area [mm] 245.76(H) X 184.32(V)
Outline dimension [mm] 279.0(W) X 209.0(H) X 9.0(D)
Bolt Hole Dimension [mm] 157 X 176
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS ( 6-Bit, P4, 6BO, 8BH)
White Luminance [cd/m2] 500
Contrast Ratio 700:1
BackLight Connector H208K-P05N-02B 5 pin 1.25mm (MS542EXT)
Backlight Inverter P1=12V, P2=GND, P3=ENA, P4=PWM, P5=N/C
Response time, Rising msec 25
Response time, Falling msec 10
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS-R_1024X768-6B
