G150X1-L01, 15 inch Sharp LCD screen


Price:
$229.99

Description

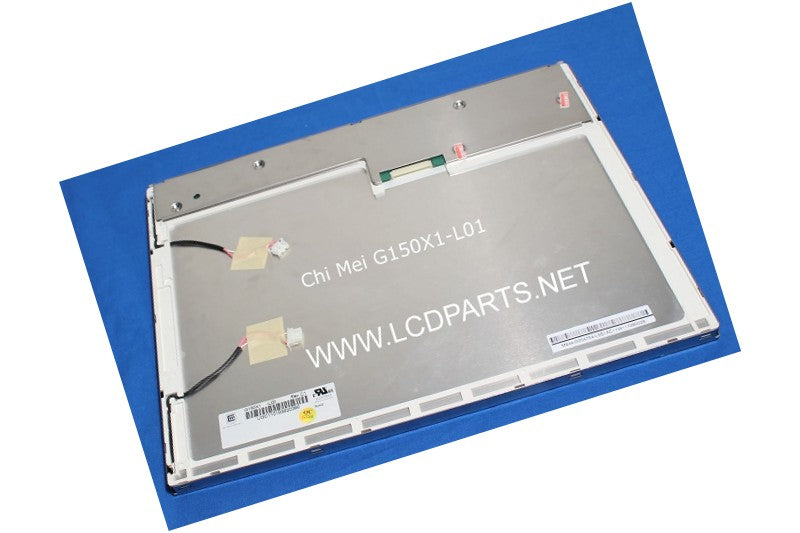

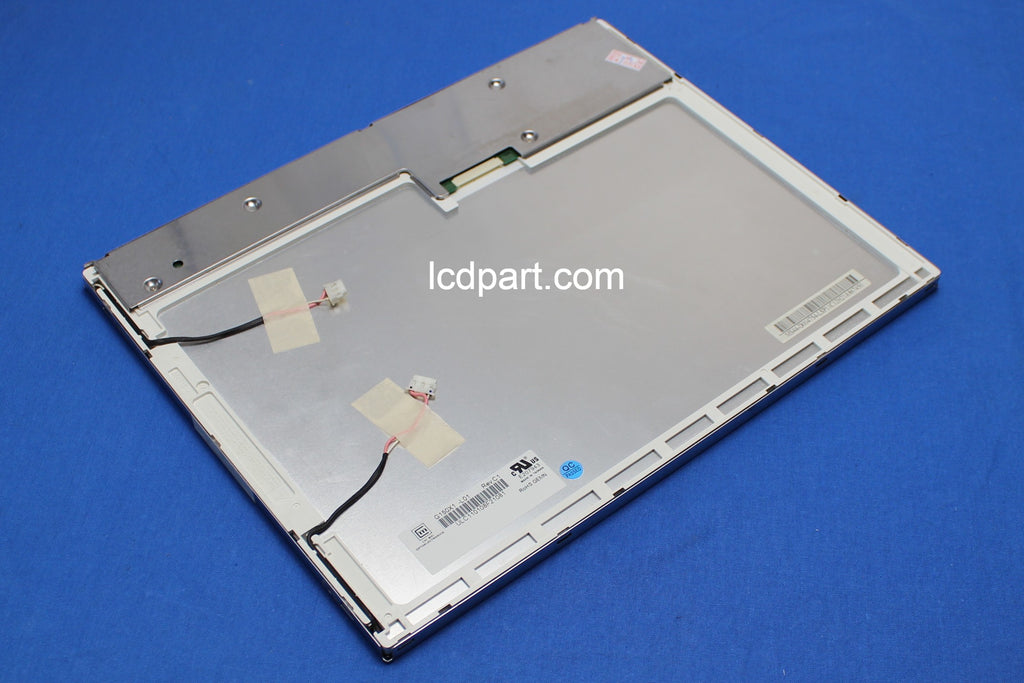

Refurbished Chi Mei G150X1-L01 LCD screen. 90 days warranty.
Chi Mei G150X1-L01, one of the most popular LCD panels in an industrial application. This 15 inch Chi Mei G150X1-L01 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB36318LED6420X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Chi Mei G150X1-L01 is Listed below
General Specifications:
Item Unit Specifications(BOX19)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 11.0(D)
Bolt Hole Dimension [mm]  176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(8-bit)
White Luminance [cd/m2] 450
Contrast Ratio 700:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS179DI
Response time, Rising msec 8
Response time, Falling msec 17
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
Compatible with MS150RBHR03X2DF1420D18B
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
LED Backlight kit UB36318LED6420X2
