G150XG01-V2, AUO LCD screen


Price:
$199.99

Description

This refurbished AUO G150XG01-V2 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

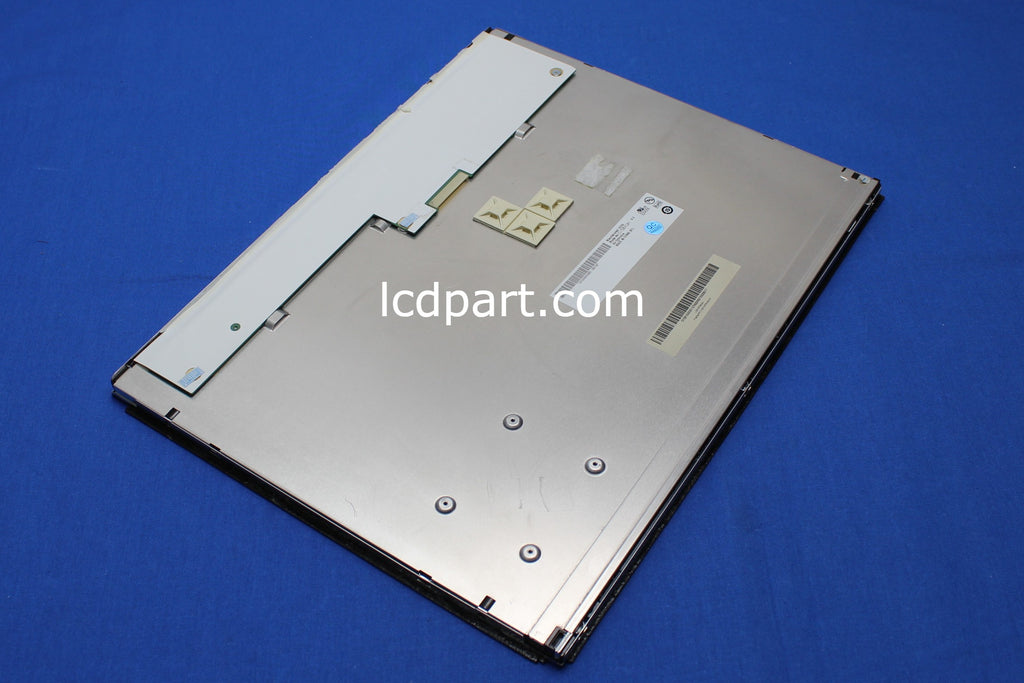

AUO G150XG01-V2, one of the most popular LCD screens in control of industrial and medical applications. This 15 inch AUO G150XG01-V2 is originally equipped with its manufacturer's LED back light strip with an external LED driver, which has typically 350 nits (based on its datasheet). By upgrading to our SB44318LED32651R5 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!

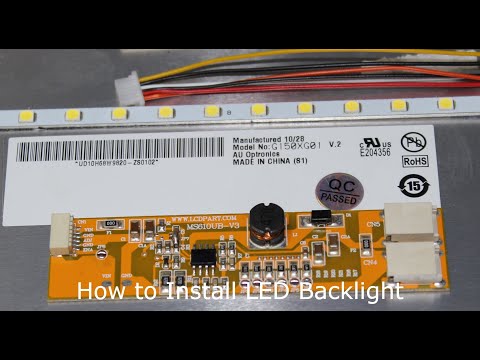

LED upgrade kit for AUO G150XG01-V2 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 350
Contrast Ratio 400:1
BackLight Connector SHR-06V-BKHF-B, 1.0mm, 6P(MS202CN)
Backlight Inverter 28.8V/80ma/3 string. SHR-06V-S_80MAMS610UBR82
Response time, Rising msec 5.7
Response time, Falling msec 2.3
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 70
Compatible with MS150RBHR03X2DF1420D16B
LCD controller kit DF14-20P-1LVDS_1024X768-6B
LED Backlight kit SB44318LED32651R5
Direct Replacement LCD MS150RSBDF1420D1
